Name: Instrument Panel (Internal Components) (Itatiaia (Brazil))
Rating: 4.6 (1 reviews)

View All

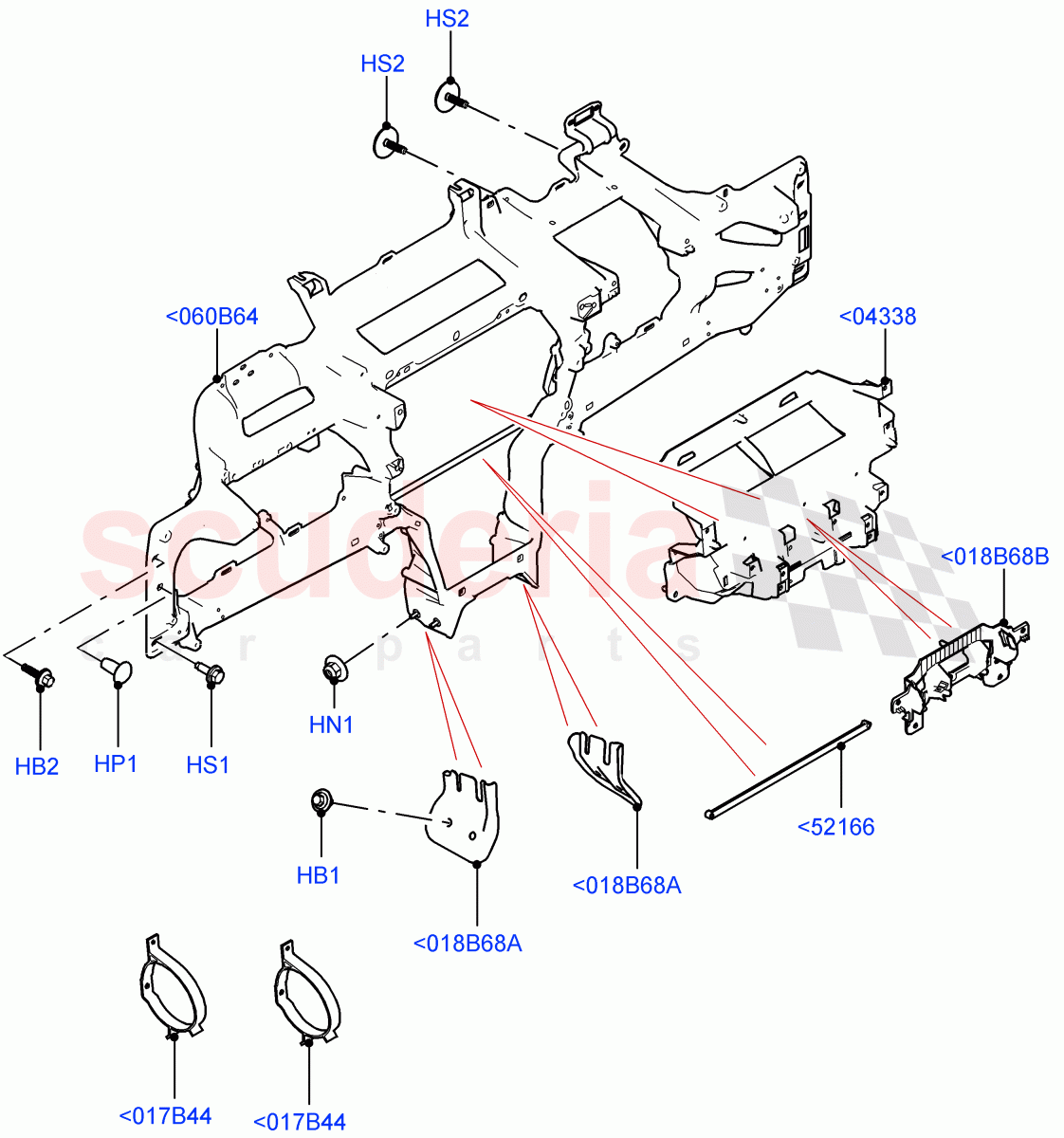

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006032	BOLT AND WASHER - HEX.HEAD	$1.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114228	BOLT AND WASHER - HEX.HEAD	$1.76	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500420	NUT AND WASHER - HEX.	$0.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR032351	PLUG - RUBBER	$2.65	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500980	SCREW AND WASHER	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030395	SCREW AND WASHER	$2.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115136	MOULDING - INSTRUMENT PANEL	$143.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117784	BRACKET - INSTRUMENT PANEL	$183.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117787	BRACKET - ENERGY ABSORBER	$41.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117767	REINFORCEMENT - INSTRUMENT PANEL	$526.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129280	BRACKET - INSTRUMENT PANEL	$49.23	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<017B44	LR117787	BRACKET - ENERGY ABSORBER	LR117787 BRACKET - ENERGY ABSORBER With Head Impact Crash Criteria	$41.38	2
<018B68A	LR125869	BRACKET - INSTRUMENT PANEL	LR125869 BRACKET - INSTRUMENT PANEL RH	$12.29	1
<018B68A	LR125870	BRACKET - INSTRUMENT PANEL	LR125870 BRACKET - INSTRUMENT PANEL LH	$11.97	1
<018B68B	LR129280	BRACKET - INSTRUMENT PANEL	LR129280 BRACKET - INSTRUMENT PANEL	$49.23	1
<060B64	LR117767	REINFORCEMENT - INSTRUMENT PANEL	LR117767 REINFORCEMENT - INSTRUMENT PANEL	$526.86	1
<04338	LR115136	MOULDING - INSTRUMENT PANEL	LR115136 MOULDING - INSTRUMENT PANEL	$143.74	1
<52166	LR117784	BRACKET - INSTRUMENT PANEL	LR117784 BRACKET - INSTRUMENT PANEL	$183.01	1
HB1	LR006032	BOLT AND WASHER - HEX.HEAD	LR006032 BOLT AND WASHER - HEX.HEAD Bolt And Washer, M8 X 17MM	$1.37	4
HB2	LR114228	BOLT AND WASHER - HEX.HEAD	LR114228 BOLT AND WASHER - HEX.HEAD M8 x 27MM	$1.76	2
HN1	RYH500420	NUT AND WASHER - HEX. IN STOCK	RYH500420 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer IN STOCK	$0.44	4
HP1	LR032351	PLUG - RUBBER	LR032351 PLUG - RUBBER 13 X 3.5, Rubber	$2.65	2
HS1	RYG500980	SCREW AND WASHER	RYG500980 SCREW AND WASHER M8 x 24MM	$1.39	2
HS2	LR030395	SCREW AND WASHER	LR030395 SCREW AND WASHER M8 x 28MM	$2.52	2

Instrument Panel (Internal Components) (Itatiaia (Brazil))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]
