Name: Rear Knuckle And Hub (Itatiaia (Brazil))
Rating: 5.0 (1 reviews)

View All

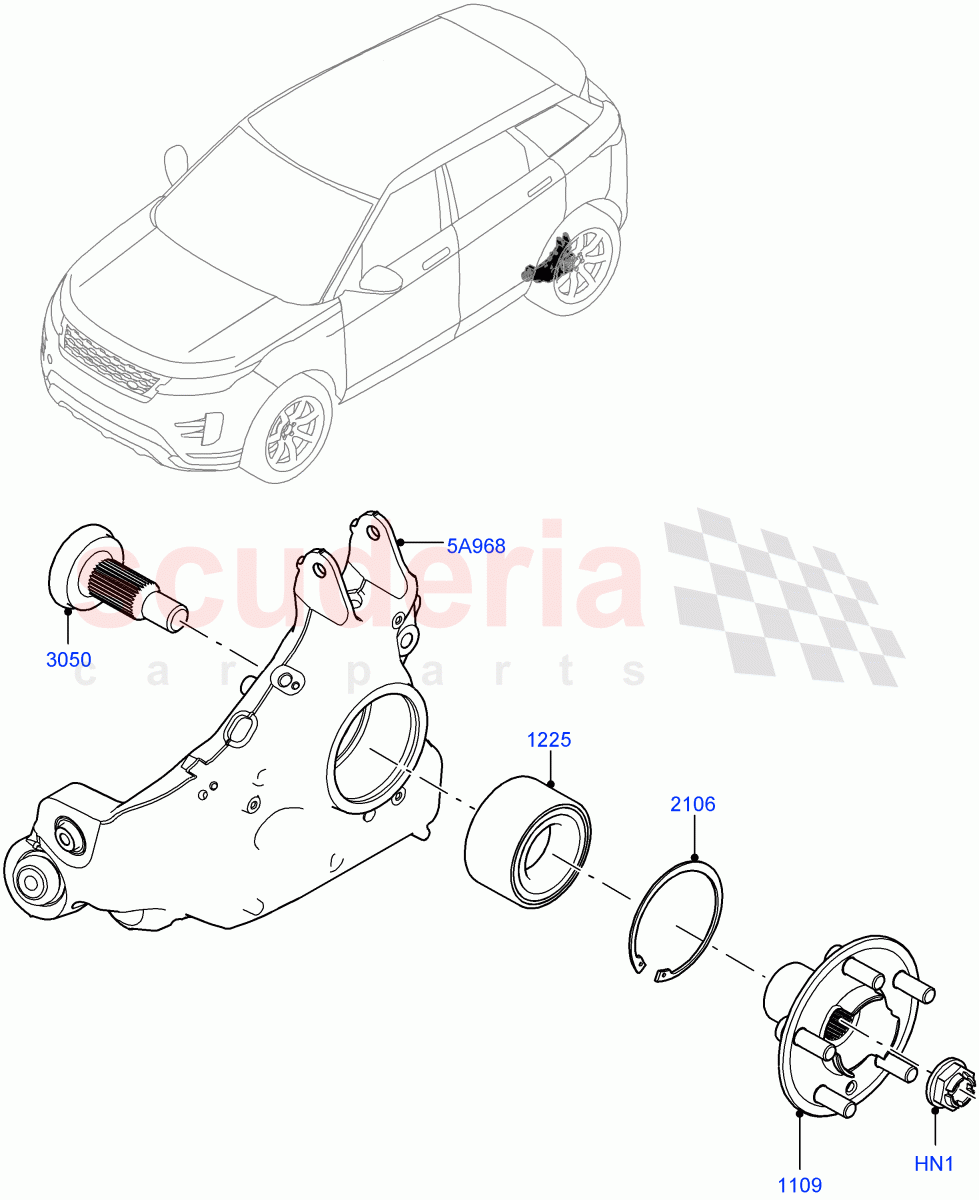

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR024151	NUT AND WASHER - HEX.	$10.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR083959	JOINT - CV	$316.43	To Order

...and 3 more part variants. See table on right for more details.

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	LR024151	NUT AND WASHER - HEX. IN STOCK	LR024151 NUT AND WASHER - HEX. M24X2.0 IN STOCK	$10.20	2
5A968	LR139873	KNUCKLE AND HUB	LR139873 KNUCKLE AND HUB All Wheel Drive, Less Electric Engine Battery / RH	$582.08	1
5A968	LR140029	KNUCKLE AND HUB	LR140029 KNUCKLE AND HUB Electric Engine Battery-MHEV, Front Wheel Drive / RH	$582.08	1
5A968	LR139874	KNUCKLE AND HUB	LR139874 KNUCKLE AND HUB Electric Engine Battery-PHEV / RH	$582.08	1
5A968	LR139877	KNUCKLE AND HUB	LR139877 KNUCKLE AND HUB All Wheel Drive, Less Electric Engine Battery / LH	$582.08	1
5A968	LR140030	KNUCKLE AND HUB	LR140030 KNUCKLE AND HUB Front Wheel Drive, Less Electric Engine Battery / LH	$582.08	1
5A968	LR139876	KNUCKLE AND HUB	LR139876 KNUCKLE AND HUB Electric Engine Battery-PHEV / LH	$582.08	1
1109	LR139172	HUB - WHEEL	LR139172 HUB - WHEEL All Wheel Drive / RH/LH	$294.24	2
1109	LR114256	HUB - WHEEL	LR114256 HUB - WHEEL Front Wheel Drive / RH/LH	$290.23	2
1225	LR072110	BEARING - WHEEL HUB	LR072110 BEARING - WHEEL HUB Front Wheel Drive / RH/LH	$123.73	2
1225	LR138941	BEARING - WHEEL HUB	LR138941 BEARING - WHEEL HUB All Wheel Drive / RH/LH	$123.32	2
2106	LR024505	CIRCLIP - BEARING	LR024505 CIRCLIP - BEARING Front Wheel Drive / RH/LH	$3.76	2
2106	LR114287	CIRCLIP - BEARING	LR114287 CIRCLIP - BEARING All Wheel Drive / RH/LH	$9.34	2
3050	LR083959	JOINT - CV	LR083959 JOINT - CV Front Wheel Drive / RH/LH	$316.43	2

Rear Knuckle And Hub (Itatiaia (Brazil))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]
