Rear Axle (Halewood (Uk), All Wheel Drive, Efficient Driveline, Electric Engine Battery-Mhev, Less...

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Rear Axle (Halewood (UK), All Wheel Drive, Efficient Driveline, Electric Engine Battery-MHEV, Less...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR117676 CLIP - RETAINING $3.39 To Order
Photo Part No Description Price (each) Stock
LR117539 NUT $22.22 To Order
Photo Part No Description Price (each) Stock
LR117588 RING - SEALING $17.47 To Order
Photo Part No Description Price (each) Stock
LR116237 CAP - PED RAIL $10.25 To Order
Photo Part No Description Price (each) Stock
LR117569 SCREW $5.37 To Order
Photo Part No Description Price (each) Stock
LR051410 SEAL - DRIVING PINION OIL $22.40 To Order
Photo Part No Description Price (each) Stock
LR095326 PIPE - CONNECTING $19.50 To Order
Photo Part No Description Price (each) Stock
LR117556 MOTOR - REAR DIFFERENTIAL $614.39 To Order
Photo Part No Description Price (each) Stock
LR117560 PLUG - MAGNETIC TYPE $10.18 To Order
Photo Part No Description Price (each) Stock
LR120539 SEAL $23.48 To Order
Photo Part No Description Price (each) Stock
LR117729 CONTROL UNIT - HALDEX $876.22 To Order
LR137632 CONTROL UNIT - HALDEX $913.25 To Order
LR144598 CONTROL UNIT - HALDEX $979.42 To Order
Photo Part No Description Price (each) Stock
LR117564 DIFFERENTIAL - REAR $4,250.03 To Order
Photo Part No Description Price (each) Stock
LR117581 PLUG - DRAIN $10.24 To Order
Photo Part No Description Price (each) Stock
LR117715 SENSOR - TRIPMINDER $125.39 To Order
LR137631 SENSOR - TRIPMINDER $112.75 To Order
Photo Part No Description Price (each) Stock
LR118240 TUBE - TRANSMISSION VENTILATION $183.85 To Order
Photo Part No Description Price (each) Stock
LR117577 WIRE - DIFFERENTIAL $105.93 To Order
View All

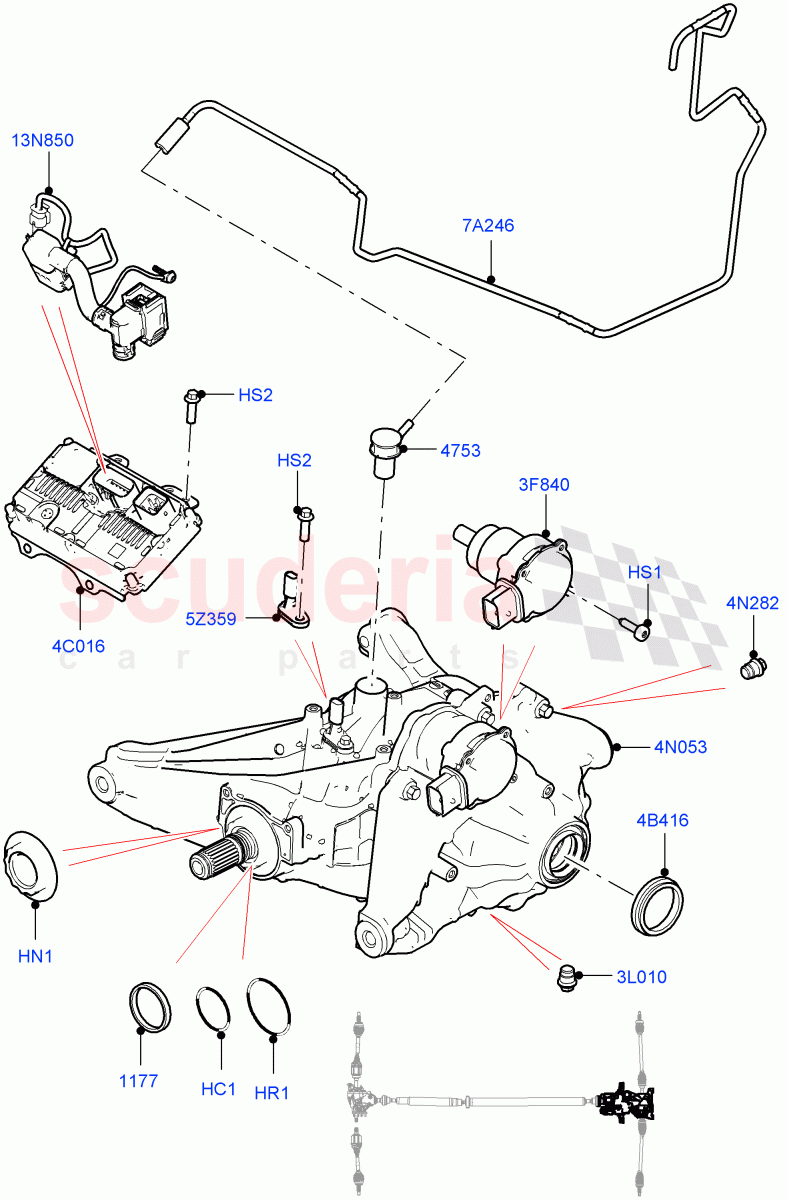

Rear Axle (Halewood (UK), All Wheel Drive, Efficient Driveline, Electric Engine Battery-MHEV, Less Electric Engine Battery) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR117676
CLIP - RETAINING
Circlip - Piston 		$3.39 1
HN1 LR117539
NUT 		$22.22 1
HR1 LR117588
RING - SEALING
O Ring 		$17.47 1
HS1 LR116237
CAP - PED RAIL
M5 x 20MM 		$10.25 2
HS2 LR117569
SCREW
Hexagonal Head, M6 X 16 		$5.37 5
3F840 LR117556
MOTOR - REAR DIFFERENTIAL
Service Kit - Motor, Fixing And O-ring 		$614.39 1
3L010 LR117560
PLUG - MAGNETIC TYPE 		$10.18 1
4B416 LR120539
SEAL
Driveshaft, RH/LH 		$23.48 2
4C016 LR117729
CONTROL UNIT - HALDEX
Control Module / To: LH065396 		$876.22 1
4C016 LR137632
CONTROL UNIT - HALDEX
Control Module / From: LH065397 / To: LH105932 		$913.25 1
4C016 LR144598
CONTROL UNIT - HALDEX
Control Module / From: LH105933 		$979.42 1
4N053 LR117564
DIFFERENTIAL - REAR 		$4,250.03 1
4N282 LR117581
PLUG - DRAIN 		$10.24 1
5Z359 LR117715
SENSOR - TRIPMINDER
Speed Sensor / To: LH074453 		$125.39 1
5Z359 LR137631
SENSOR - TRIPMINDER
Speed Sensor / From: LH074454 		$112.75 1
7A246 LR118240
TUBE - TRANSMISSION VENTILATION 		$183.85 1
13N850 LR117577
WIRE - DIFFERENTIAL
Differential 		$105.93 1
1177 LR051410
SEAL - DRIVING PINION OIL
Propshaft 		$22.40 1
4753 LR095326
PIPE - CONNECTING
Breather Pipe, Connection 		$19.50 1
