Name: Turbocharger (Lubrication And Cooling) (2.0L AJ20D4 Diesel High PTA, Halewood (UK))
Rating: 4.2 (1 reviews)

View All

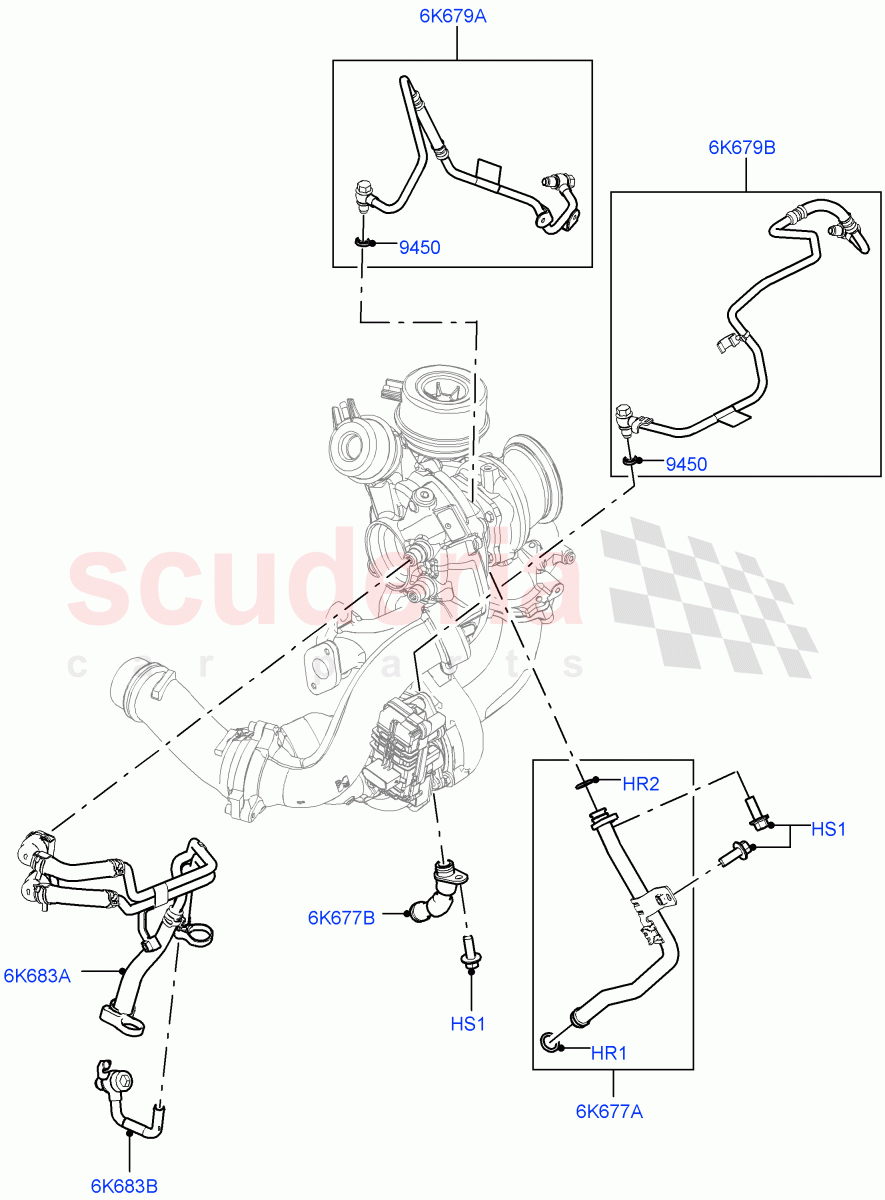

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073688	O-RING	$4.01	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073687	O-RING	$29.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073671	WASHER - COPPER	$4.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR094519	HOSE - OIL RETURN	$46.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094530	HOSE - OIL RETURN	$60.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117594	PIPE - OIL FEED	$57.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117593	PIPE - OIL FEED	$57.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094520	HOSE - INTERCOOLER	$85.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094525	CONNECTION - WATER	$46.07	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR073688	O-RING IN STOCK	LR073688 O-RING 15 X 3MM, Lower IN STOCK	$4.01	1
HR2	LR073687	O-RING	LR073687 O-RING 14.3 x 2.4, Upper	$29.15	1
HS1	LR073686	SCREW	LR073686 SCREW Drain, M6 X 16MM	$2.48	2
HS1	LR073686	SCREW	LR073686 SCREW Bracket, M6 X 16MM	$2.48	1
6K677A	LR094519	HOSE - OIL RETURN	LR094519 HOSE - OIL RETURN Cylinder Block, Low Pressure Turbocharger	$46.16	1
6K677B	LR094530	HOSE - OIL RETURN	LR094530 HOSE - OIL RETURN Cylinder Block, High Pressure Turbocharger	$60.84	1
6K679A	LR117594	PIPE - OIL FEED	LR117594 PIPE - OIL FEED Low Pressure Turbocharger	$57.25	1
6K679B	LR117593	PIPE - OIL FEED	LR117593 PIPE - OIL FEED High Pressure Turbocharger	$57.31	1
6K683A	LR094520	HOSE - INTERCOOLER	LR094520 HOSE - INTERCOOLER Hose Water Inlet To Turbocharger, Hose Water Outlet From Turbocharger, Low Pressure Turbocharger	$85.99	1
6K683B	LR094525	CONNECTION - WATER	LR094525 CONNECTION - WATER Cylinder Block, Hose Water Outlet From Turbocharger	$46.07	1
9450	LR073671	WASHER - COPPER IN STOCK	LR073671 WASHER - COPPER Banjo Washer, Requires 2 Pcs Per Banjo-Bolt, Turbocharger Oil Feed IN STOCK	$4.60	4

Turbocharger (Lubrication And Cooling) (2.0L Aj20D4 Diesel High Pta, Halewood (Uk))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]
