Name: Fuel Pump And Sender Unit (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), 2.0L AJ20D4 Diesel LF PTA, 2.0L AJ20D4 Diesel High PTA)
Rating: 4.6 (1 reviews)

Fuel Pump And Sender Unit (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), 2.0L AJ20D4 Diesel LF PTA, 2.0L AJ20D4 Diesel High PTA) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Fuel Pump And Sender Unit (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), 2.0L AJ20D4 Diesel LF PTA,...

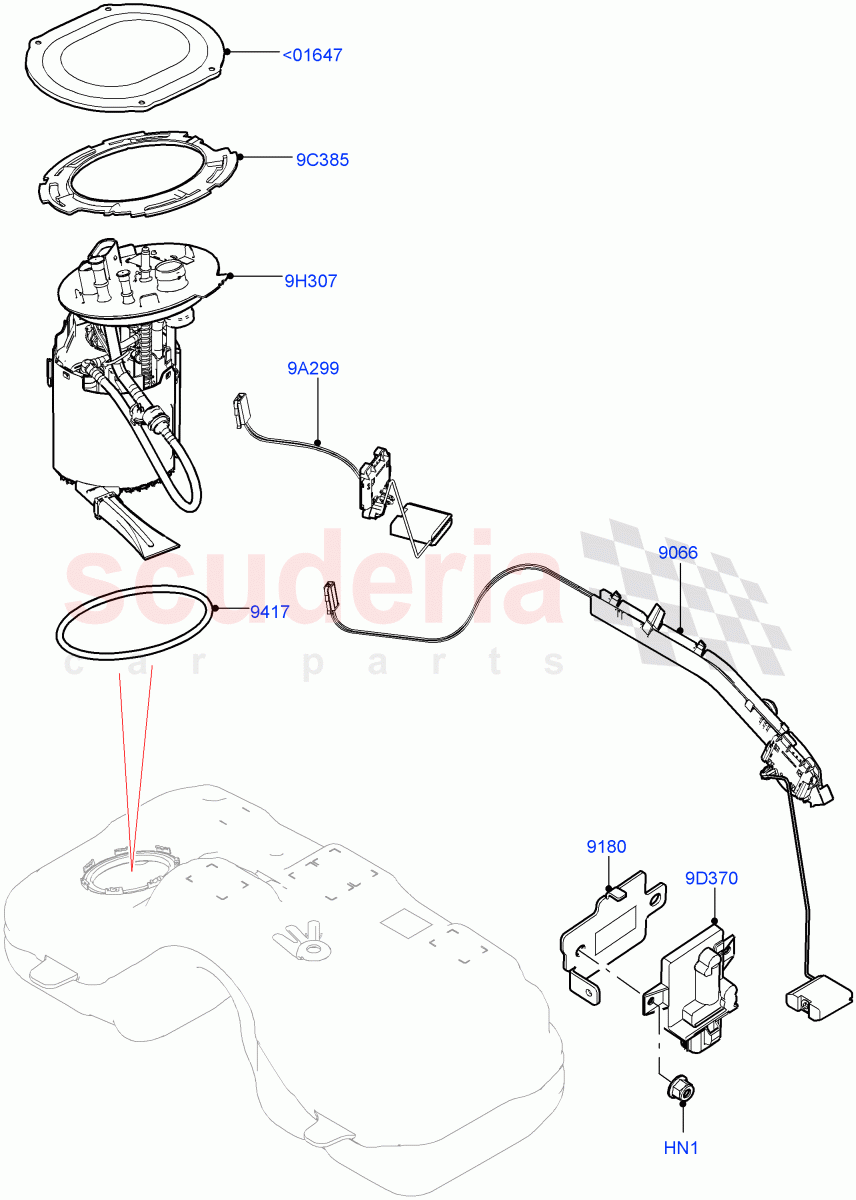

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR125570	SENSOR - FUEL LEVEL	$201.33	To Order
	LR153415	SENSOR - FUEL LEVEL	$289.35	To Order
	LR153415	SENSOR - FUEL LEVEL	$289.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135237	BRACKET	$17.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	$10.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR117817	SENDER - FUEL TANK	$133.06	To Order
	LR127637	SENDER - FUEL TANK	$135.04	To Order
	LR133660	SENDER - FUEL TANK	$103.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082729	RING - RETAINING	$27.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR097220	CONTROL - FUEL PUMP DRIVE	$209.00	To Order
	LR172653	CONTROL - FUEL PUMP DRIVE	$209.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117503	PUMP - FUEL	$564.24	To Order
	LR117504	PUMP - FUEL	$564.24	To Order
	LR127417	PUMP - FUEL	$471.03	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR124972	PLUG - FLOOR PAN	$31.79	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<01647	LR124972	PLUG - FLOOR PAN	LR124972 PLUG - FLOOR PAN	$31.79	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$1.47	2
9A299	LR117817	SENDER - FUEL TANK	LR117817 SENDER - FUEL TANK RH / To: LH000268	$133.06	1
9A299	LR127637	SENDER - FUEL TANK	LR127637 SENDER - FUEL TANK RH / From: LH000269 / To: LH014892	$135.04	1
9A299	LR133660	SENDER - FUEL TANK	LR133660 SENDER - FUEL TANK RH / From: LH014893	$103.72	1
9C385	LR082729	RING - RETAINING	LR082729 RING - RETAINING	$27.04	1
9D370	LR097220	CONTROL - FUEL PUMP DRIVE	LR097220 CONTROL - FUEL PUMP DRIVE To: PH181109	$209.00	1
9D370	LR172653	CONTROL - FUEL PUMP DRIVE	LR172653 CONTROL - FUEL PUMP DRIVE From: PH181110	$209.00	1
9H307	LR117503	PUMP - FUEL	LR117503 PUMP - FUEL Fuel Tank-Diesel / To: LH014892	$564.24	1
9H307	LR117504	PUMP - FUEL	LR117504 PUMP - FUEL Fuel Tank-Diesel With Filters / To: LH015574	$564.24	1
9H307	LR127417	PUMP - FUEL	LR127417 PUMP - FUEL Fuel Tank-Diesel / From: LH014893	$471.03	1
9H307	LR127448	SENDER AND PUMP	LR127448 SENDER AND PUMP Fuel Tank-Diesel With Filters / From: LH015575	$534.42	1
9066	LR125570	SENSOR - FUEL LEVEL	LR125570 SENSOR - FUEL LEVEL LH, Includes Hose, With Bracket / To: LH014892	$201.33	1
9066	LR153415	SENSOR - FUEL LEVEL	LR153415 SENSOR - FUEL LEVEL LH, With Bracket / From: LH014893 / To: LH120730	$289.35	1
9066	LR153415	SENSOR - FUEL LEVEL	LR153415 SENSOR - FUEL LEVEL LH, Includes Hose, With Bracket / From: LH120731	$289.35	1
9180	LR135237	BRACKET	LR135237 BRACKET	$17.94	1
9417	LR117476	GASKET IN STOCK	LR117476 GASKET O-Ring IN STOCK	$10.56	1

Fuel Pump And Sender Unit (2.0L Aj20D4 Diesel Mid Pta, Halewood (Uk), 2.0L Aj20D4 Diesel Lf Pta,...

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]
