Exhaust Gas Recirculation (Low Pressure Egr) (2.0L Aj20D4 Diesel Mid Pta, Euro Stage 4 Emissions,...

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Exhaust Gas Recirculation (Low Pressure EGR) (2.0L AJ20D4 Diesel Mid PTA, Euro Stage 4 Emissions,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR083962 O-RING $5.37 To Order
Photo Part No Description Price (each) Stock
LR095785 O-RING $5.13 IN STOCK
Photo Part No Description Price (each) Stock
LR073724 SCREW $2.05 To Order
LR073724 SCREW $2.05 To Order
Photo Part No Description Price (each) Stock
LR073738 SCREW $3.88 IN STOCK
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD $1.35 To Order
Photo Part No Description Price (each) Stock
LR073686 SCREW $2.49 To Order
Photo Part No Description Price (each) Stock
LR123831 PLATE - BLANKING $30.51 To Order
Photo Part No Description Price (each) Stock
LR087071 EGR VALVE - LOW PRESSURE $347.32 To Order
Photo Part No Description Price (each) Stock
LR126126 FILTER - EGR COOLER $24.95 To Order
Photo Part No Description Price (each) Stock
LR073730 COOLER - EGR $437.56 To Order
Photo Part No Description Price (each) Stock
LR073733 TUBE - EXHAUST GAS RECIRCULATION $92.01 To Order
Photo Part No Description Price (each) Stock
LR082666 BRACKET - SUPPORT $36.14 To Order
Photo Part No Description Price (each) Stock
LR073734 GASKET - EGR COOLER $10.15 To Order
Photo Part No Description Price (each) Stock
LR095555 GASKET - EGR OUTLET $14.20 To Order
Photo Part No Description Price (each) Stock
LR075629 SENSOR - TEMPERATURE $48.18 To Order
Photo Part No Description Price (each) Stock
LR108955 SENSOR $154.61 To Order
View All

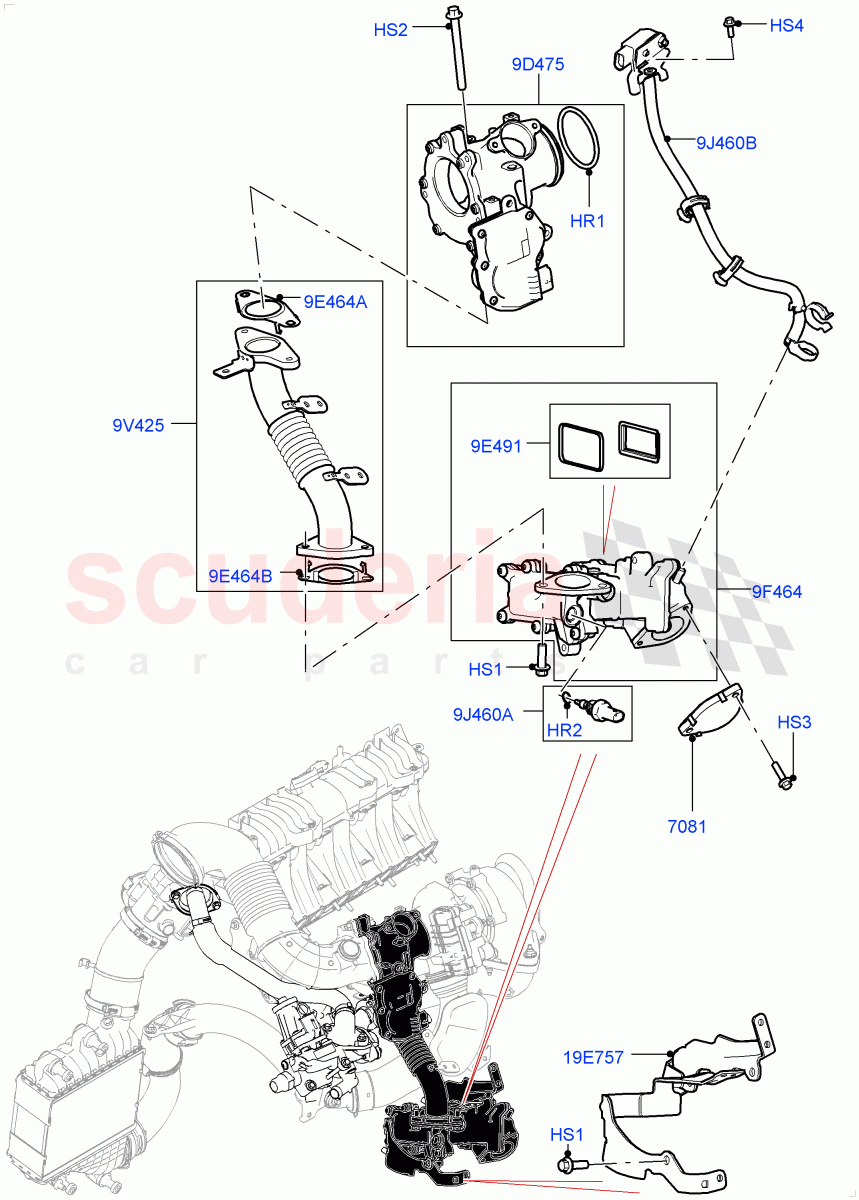

Exhaust Gas Recirculation (Low Pressure EGR) (2.0L AJ20D4 Diesel Mid PTA, Euro Stage 4 Emissions, Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR083962
O-RING
60MM 		$5.37 1
HR2 LR095785
O-RING
11.3 x 2.5MM, Sensor
IN STOCK 		$5.13 1
HS1 LR073724
SCREW
EGR Cooler, M8 X 25MM 		$2.05 5
HS1 LR073724
SCREW
Bracket, M8 X 25MM 		$2.05 3
HS2 LR073738
SCREW
M8 x 100MM
IN STOCK 		$3.88 2
HS3 LR071842
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 25MM 		$1.35 2
HS4 LR073686
SCREW
M6 X 16MM 		$2.49 1
9D475 LR087071
EGR VALVE - LOW PRESSURE 		$347.32 1
9E464A LR073734
GASKET - EGR COOLER
EGR Cooler To EGR Valve 		$10.15 1
9E464B LR095555
GASKET - EGR OUTLET
EGR Cooler Outlet 		$14.20 1
9E491 LR126126
FILTER - EGR COOLER
Filter And Gasket Kit 		$24.95 1
9F464 LR073730
COOLER - EGR 		$437.56 1
9J460A LR075629
SENSOR - TEMPERATURE
Temperature 		$48.18 1
9J460B LR108955
SENSOR
Exhaust Gas Pressure, Sensor And Tube Assy 		$154.61 1
9V425 LR073733
TUBE - EXHAUST GAS RECIRCULATION
EGR Cooler To EGR Valve 		$92.01 1
19E757 LR082666
BRACKET - SUPPORT 		$36.14 1
7081 LR123831
PLATE - BLANKING 		$30.51 1
