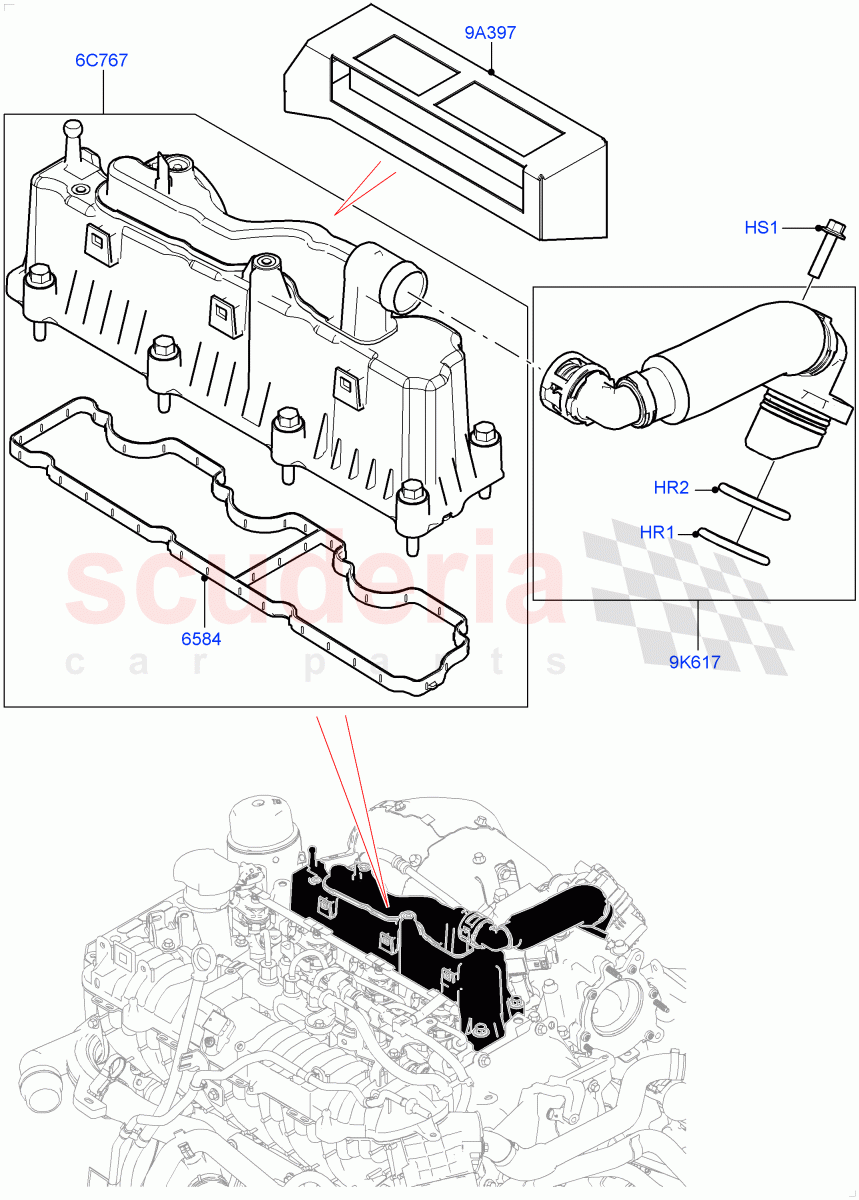

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR105417	O-RING	$5.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105418	O-RING	$5.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105593	GASKET - COVER	$78.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105980	COVER - BREATHER	$217.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174796	HEAT SHIELD	$97.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077852	HOSE - CRANKCASE VENTILATION	$83.65	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR105417	O-RING	LR105417 O-RING 38MM, Primary	$5.89	1
HR2	LR105418	O-RING	LR105418 O-RING 38MM, Secondary	$5.89	1
HS1	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Engine Ventilation, Hexagonal Head, Hose, M6 X 25MM	$1.34	2
6C767	LR105980	COVER - BREATHER	LR105980 COVER - BREATHER Engine Ventilation	$217.53	1
9A397	LR174796	HEAT SHIELD	LR174796 HEAT SHIELD	$97.89	1
9K617	LR077852	HOSE - CRANKCASE VENTILATION	LR077852 HOSE - CRANKCASE VENTILATION Engine Ventilation	$83.65	1
6584	LR105593	GASKET - COVER	LR105593 GASKET - COVER	$78.56	1
