Name: Turbocharger (1.5L AJ20P3 Petrol High, Changsu (China), 1.5L AJ20P3 Petrol High PHEV)
Rating: 5.0 (1 reviews)

View All

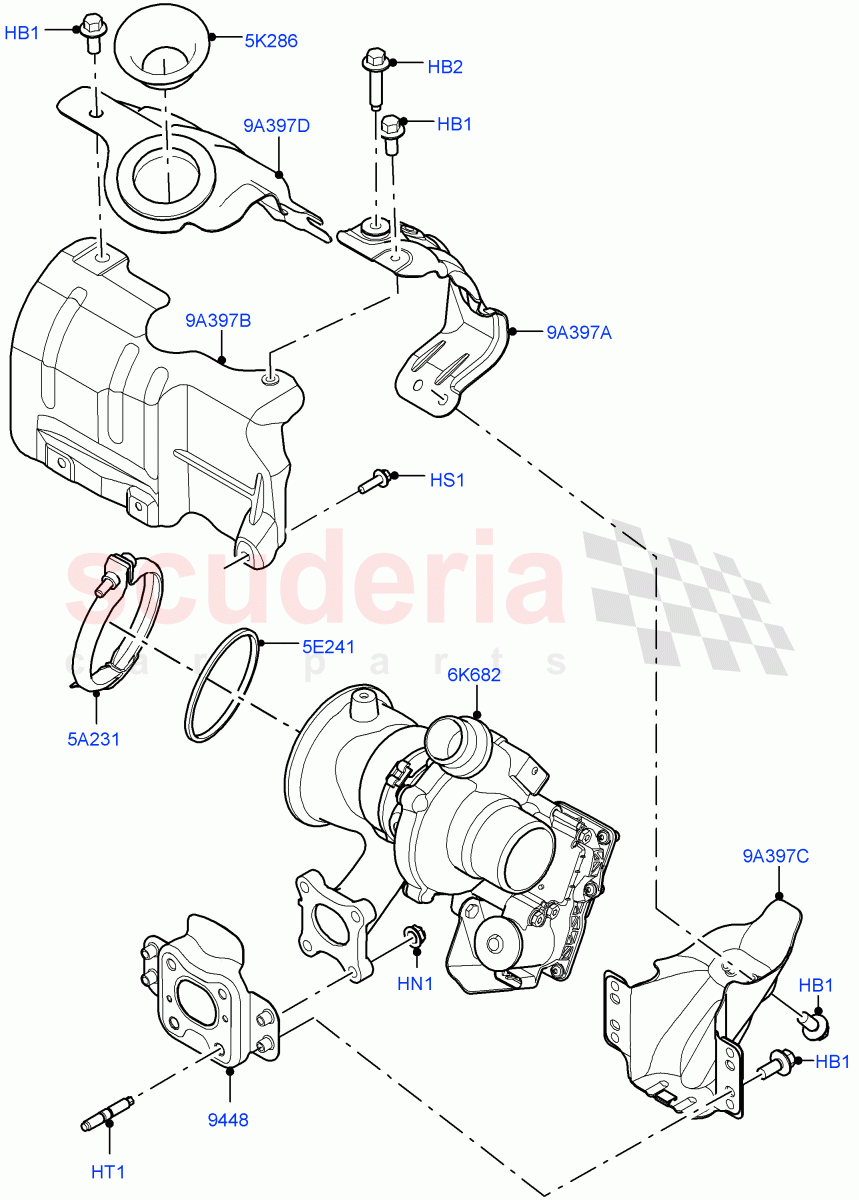

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091557	BOLT	$3.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092112	NUT	$2.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR092114	STUD	$3.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125371	GASKET - EXHAUST MANIFOLD	$53.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106799	CLAMP - EXHAUST	$38.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105411	GASKET - TURBOCHARGER	$20.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139516	HEAT SHIELD	$19.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153790	TURBOCHARGER	$2,174.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125372	HEAT SHIELD - TURBOCHARGER	$64.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138358	HEATSHIELD - CAM COVER	$121.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125373	HEAT SHIELD - TURBOCHARGER	$69.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125627	HEAT SHIELD - TURBOCHARGER	$168.87	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD M6 X 14MM, Shield	$2.77	10
HB2	LR091557	BOLT	LR091557 BOLT Heat Shield, M6 X 25MM	$3.01	1
HN1	LR092112	NUT	LR092112 NUT M8, Turbocharger	$2.16	4
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM, Shield IN STOCK	$1.60	3
HT1	LR092114	STUD	LR092114 STUD M8 X 17.5 + M8 X 20, Turbocharger	$3.59	4
5A231	LR106799	CLAMP - EXHAUST	LR106799 CLAMP - EXHAUST Turbocharger Outlet	$38.52	1
5E241	LR105411	GASKET - TURBOCHARGER	LR105411 GASKET - TURBOCHARGER Turbocharger Outlet	$20.79	1
5K286	LR139516	HEAT SHIELD	LR139516 HEAT SHIELD Insert	$19.38	1
6K682	LR153790	TURBOCHARGER	LR153790 TURBOCHARGER	$2,174.40	1
9A397A	LR125372	HEAT SHIELD - TURBOCHARGER	LR125372 HEAT SHIELD - TURBOCHARGER Upper	$64.11	1
9A397B	LR138358	HEATSHIELD - CAM COVER	LR138358 HEATSHIELD - CAM COVER Engine Side	$121.06	1
9A397C	LR125373	HEAT SHIELD - TURBOCHARGER	LR125373 HEAT SHIELD - TURBOCHARGER Lower	$69.88	1
9A397D	LR125627	HEAT SHIELD - TURBOCHARGER	LR125627 HEAT SHIELD - TURBOCHARGER	$168.87	1
9448	LR125371	GASKET - EXHAUST MANIFOLD	LR125371 GASKET - EXHAUST MANIFOLD	$53.74	1

Turbocharger (1.5L Aj20P3 Petrol High, Changsu (China), 1.5L Aj20P3 Petrol High Phev)

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]
