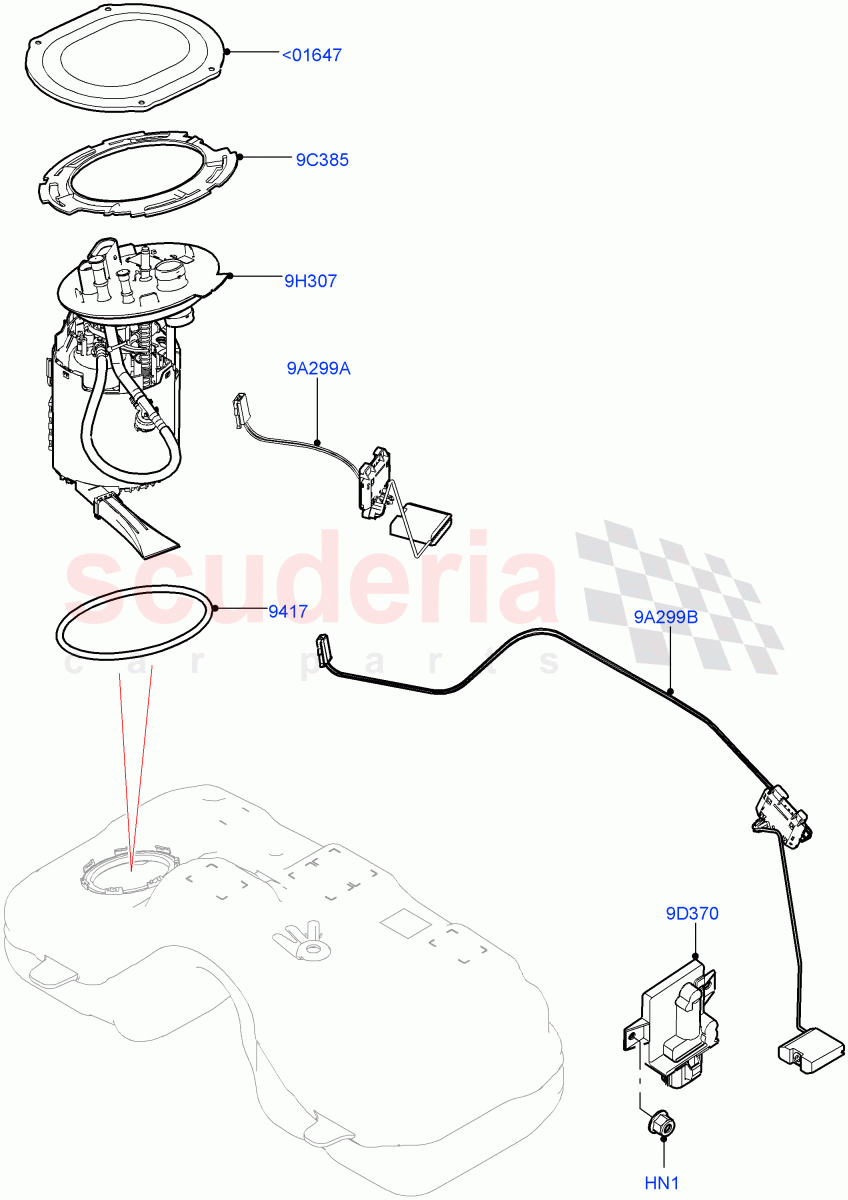

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	$10.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR117478	RING - RETAINING	$33.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR097220	CONTROL - FUEL PUMP DRIVE	$209.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127415	PUMP - FUEL	$551.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124972	PLUG - FLOOR PAN	$31.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133660	SENDER - FUEL TANK	$103.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR134923	SENDER - FUEL TANK	$134.07	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<01647	LR124972	PLUG - FLOOR PAN	LR124972 PLUG - FLOOR PAN	$31.79	1
HN1	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. For Fuel Pump Driver Module, Hexagonal Head, M6 IN STOCK	$0.68	2
9A299A	LR133660	SENDER - FUEL TANK	LR133660 SENDER - FUEL TANK RH	$103.72	1
9A299B	LR134923	SENDER - FUEL TANK	LR134923 SENDER - FUEL TANK LH	$134.07	1
9C385	LR117478	RING - RETAINING	LR117478 RING - RETAINING	$33.76	1
9D370	LR097220	CONTROL - FUEL PUMP DRIVE	LR097220 CONTROL - FUEL PUMP DRIVE	$209.00	1
9H307	LR127415	PUMP - FUEL	LR127415 PUMP - FUEL	$551.94	1
9417	LR117476	GASKET IN STOCK	LR117476 GASKET O-Ring IN STOCK	$10.56	1
