Name: Rear Exhaust System (1.5L AJ20P3 Petrol High PHEV, Changsu (China))
Rating: 5.0 (1 reviews)

View All

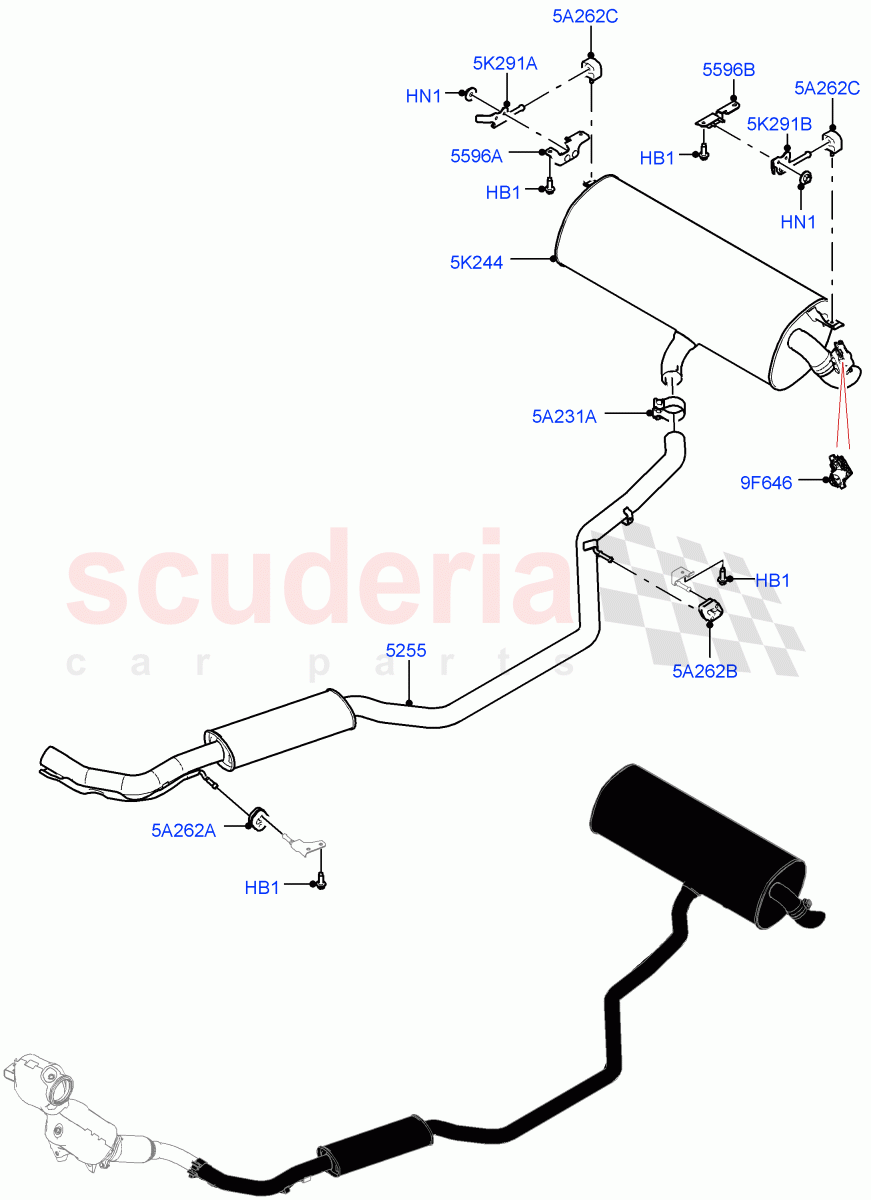

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500370	NUT AND WASHER - HEX.	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164119	PIPE - EXHAUST	$474.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125427	BRACKET - EXHAUST PIPE MOUNTING	$27.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125426	BRACKET - EXHAUST PIPE MOUNTING	$27.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135634	MUFFLER - REAR	$1,443.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137008	ACTUATOR - ELECTRONIC EXHAUST VALVE	$306.21	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500030	CLAMP - EXHAUST	$83.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	$11.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104929	INSULATOR - RUBBER	$9.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125106	INSULATOR - RUBBER	$32.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139406	BRACKET	$52.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139407	BRACKET	$47.15	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500440	BOLT	RYG500440 BOLT Hexagonal Head, M8 X 20MM	$1.03	7
HN1	RYH500370	NUT AND WASHER - HEX.	RYH500370 NUT AND WASHER - HEX. M8 Hex, Nut And Washer	$0.67	4
5A231A	WCL500030	CLAMP - EXHAUST	WCL500030 CLAMP - EXHAUST 55MM, Rear	$83.94	1
5A262A	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER Front	$11.74	1
5A262B	LR104929	INSULATOR - RUBBER	LR104929 INSULATOR - RUBBER Middle	$9.33	1
5A262C	LR125106	INSULATOR - RUBBER	LR125106 INSULATOR - RUBBER For Rear Muffler, RH/LH	$32.04	2
5K244	LR135634	MUFFLER - REAR	LR135634 MUFFLER - REAR	$1,443.56	1
5K291A	LR139406	BRACKET	LR139406 BRACKET Lower, RH Rear	$52.85	1
5K291B	LR139407	BRACKET	LR139407 BRACKET LH Rear, Lower	$47.15	1
9F646	LR137008	ACTUATOR - ELECTRONIC EXHAUST VALVE	LR137008 ACTUATOR - ELECTRONIC EXHAUST VALVE	$306.21	1
5255	LR164119	PIPE - EXHAUST	LR164119 PIPE - EXHAUST	$474.80	1
5596A	LR125427	BRACKET - EXHAUST PIPE MOUNTING	LR125427 BRACKET - EXHAUST PIPE MOUNTING RH Rear, Upper	$27.10	1
5596B	LR125426	BRACKET - EXHAUST PIPE MOUNTING	LR125426 BRACKET - EXHAUST PIPE MOUNTING LH Rear, Upper	$27.10	1

Rear Exhaust System (1.5L Aj20P3 Petrol High Phev, Changsu (China))

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]
