Name: Front Exhaust System (1.5L AJ20P3 Petrol High, 8 Speed Automatic Trans 8G30, Changsu (China))
Rating: 4.7 (1 reviews)

Front Exhaust System (1.5L AJ20P3 Petrol High, 8 Speed Automatic Trans 8G30, Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Front Exhaust System (1.5L AJ20P3 Petrol High, 8 Speed Automatic Trans 8G30, Changsu (China))

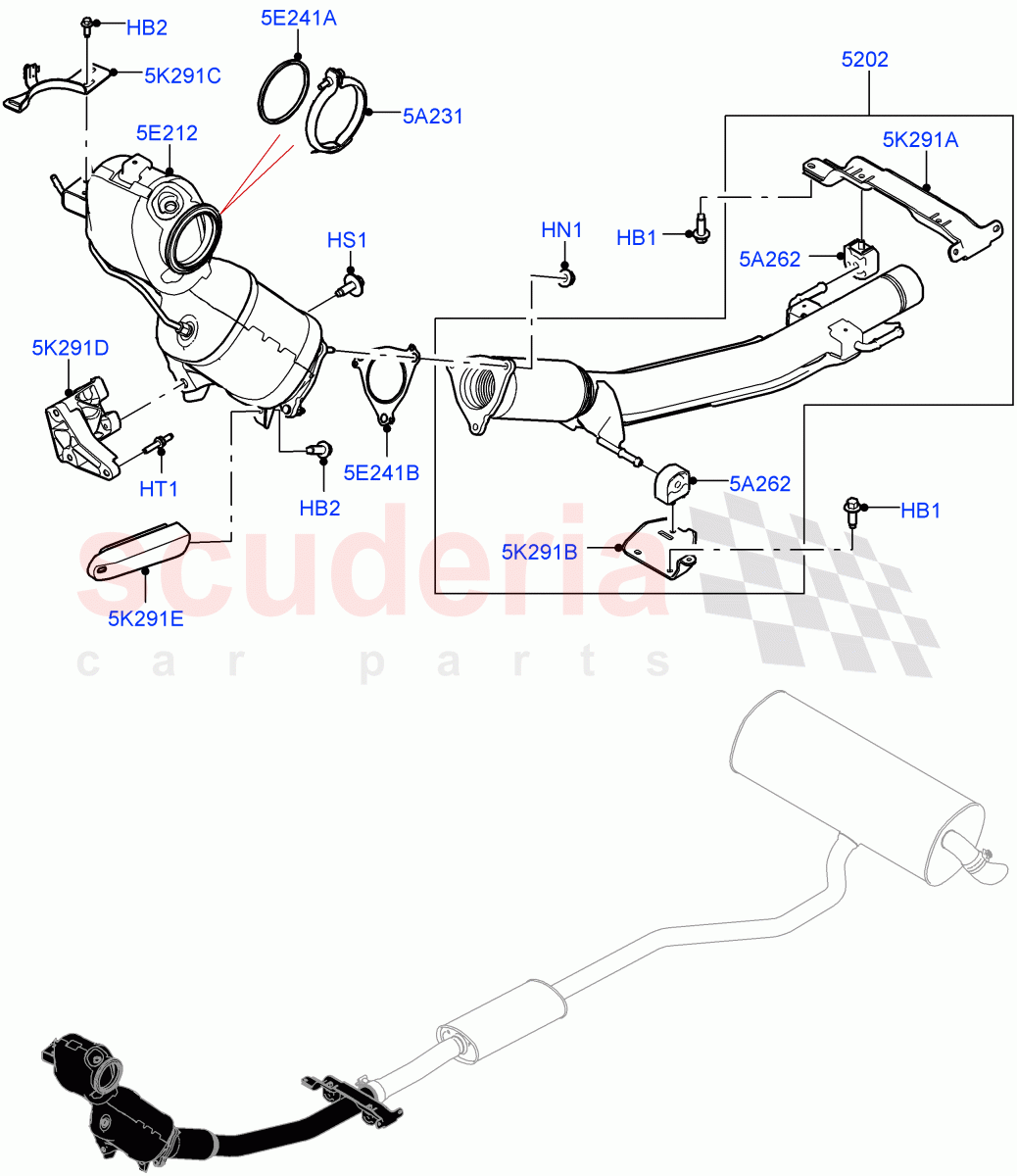

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500230	BOLT - HEX.HEAD	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	$0.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	PYG500050	SCREW	$1.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR023448	STUD	$5.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136894	CATALYTIC CONVERTER	$1,137.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106799	CLAMP - EXHAUST	$38.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR134608	INSULATOR - RUBBER	$21.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125525	CATALYST AND PARTICLE FILTER	$2,997.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105411	GASKET - TURBOCHARGER	$20.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094164	GASKET - EXHAUST PIPE	$16.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133157	BRACKET - EXHAUST PIPE MOUNTING	$55.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133156	BRACKET - EXHAUST PIPE MOUNTING	$33.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125527	BELLY BAND BRACKET - EXHAUST	$47.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125529	BELLY BAND BRACKET - EXHAUST	$51.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125531	BELLY BAND BRACKET - EXHAUST	$45.16	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500440	BOLT	RYG500440 BOLT Bracket, Exhaust pipe, Hexagonal Head, M8 X 20MM	$1.03	5
HB2	RYG500230	BOLT - HEX.HEAD IN STOCK	RYG500230 BOLT - HEX.HEAD Bracket, Catalyst, Hexagonal Head, M8 X 20MM IN STOCK	$1.43	5
HN1	FX108046	NUT - LOCKING IN STOCK	FX108046 NUT - LOCKING M8 IN STOCK	$0.40	3
HS1	PYG500050	SCREW IN STOCK	PYG500050 SCREW Catalyst, M8 X 20MM IN STOCK	$1.07	2
HT1	LR023448	STUD	LR023448 STUD M8 X 30 + M8 X 16MM	$5.04	3
5A231	LR106799	CLAMP - EXHAUST	LR106799 CLAMP - EXHAUST Turbocharger Outlet	$38.52	1
5A262	LR134608	INSULATOR - RUBBER	LR134608 INSULATOR - RUBBER	$21.77	3
5E212	LR125525	CATALYST AND PARTICLE FILTER	LR125525 CATALYST AND PARTICLE FILTER	$2,997.62	1
5E241A	LR105411	GASKET - TURBOCHARGER	LR105411 GASKET - TURBOCHARGER Turbocharger Outlet	$20.79	1
5E241B	LR094164	GASKET - EXHAUST PIPE	LR094164 GASKET - EXHAUST PIPE Outlet	$16.58	1
5K291A	LR133157	BRACKET - EXHAUST PIPE MOUNTING	LR133157 BRACKET - EXHAUST PIPE MOUNTING Exhaust pipe, Rear	$55.67	1
5K291B	LR133156	BRACKET - EXHAUST PIPE MOUNTING	LR133156 BRACKET - EXHAUST PIPE MOUNTING Exhaust pipe, Front	$33.87	1
5K291C	LR125527	BELLY BAND BRACKET - EXHAUST	LR125527 BELLY BAND BRACKET - EXHAUST Catalyst, Upper	$47.88	1
5K291D	LR125529	BELLY BAND BRACKET - EXHAUST	LR125529 BELLY BAND BRACKET - EXHAUST Catalyst, Middle	$51.66	1
5K291E	LR125531	BELLY BAND BRACKET - EXHAUST	LR125531 BELLY BAND BRACKET - EXHAUST Catalyst, Lower	$45.16	1
5202	LR136894	CATALYTIC CONVERTER	LR136894 CATALYTIC CONVERTER	$1,137.56	1

Front Exhaust System (1.5L Aj20P3 Petrol High, 8 Speed Automatic Trans 8G30, Changsu (China))

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Front Exhaust System (1.5L AJ20P3 Petrol High, 8 Speed Automatic Trans 8G30, Changsu (China))
