Airbag System (Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Airbag System (Itatiaia (Brazil)) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
YYP500140 BOLT $1.40 To Order
Photo Part No Description Price (each) Stock
LR031341 NUT - HEX. $1.03 To Order
Photo Part No Description Price (each) Stock
VYP500060 SCREW $0.47 IN STOCK
Photo Part No Description Price (each) Stock
LR028391 WIRING - AIR BAG $69.24 To Order
Photo Part No Description Price (each) Stock
LR077205 MONITOR - AIRBAG DIAGNOSTIC MODULE $799.85 To Order
Photo Part No Description Price (each) Stock
LR028860 SENSOR - SIDE AIR BAG $49.10 To Order
Photo Part No Description Price (each) Stock
LR026025 BRACKET - AIR BAG $76.14 To Order
LR026026 BRACKET - AIR BAG $71.76 To Order
Photo Part No Description Price (each) Stock
LR085161 SENSOR - AIR BAG $144.36 To Order
Photo Part No Description Price (each) Stock
LR032046 SENSOR - AIR BAG $140.17 To Order
Photo Part No Description Price (each) Stock
LR071371 AIR BAG - STEERING WHEEL $918.97 To Order
Photo Part No Description Price (each) Stock
LR026031 AIR BAG - KNEE $643.61 To Order
LR026033 AIR BAG - KNEE $643.61 To Order
LR026034 AIR BAG - KNEE $643.61 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR026019 SIDE AIR BAG $510.52 To Order
LR026021 SIDE AIR BAG $510.52 To Order
Photo Part No Description Price (each) Stock
LR026016 AIR BAG - PASSENGER $970.64 To Order
Photo Part No Description Price (each) Stock
LR026028 AIR BAG - CURTAIN $591.94 To Order
LR026030 AIR BAG - CURTAIN $591.94 To Order
View All

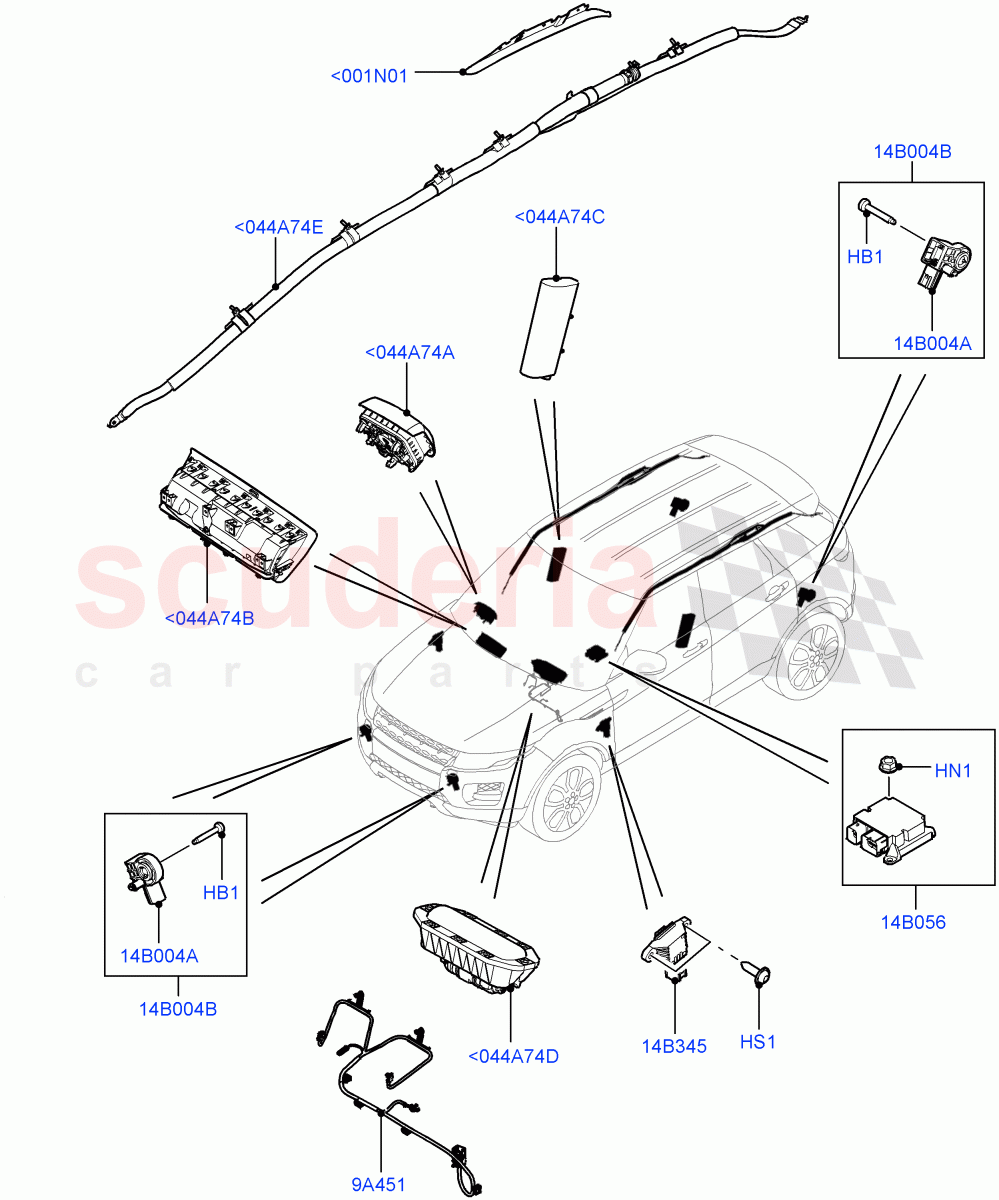

Airbag System (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<001N01 LR026025
BRACKET - AIR BAG
RH, To Side Air Curtain / From: GT000001 		$76.14 1
<001N01 LR026026
BRACKET - AIR BAG
LH, To Side Air Curtain / From: GT000001 		$71.76 1
<044A74A LR071371
AIR BAG - STEERING WHEEL
Driver, Ebony Black / From: GT000001 		$918.97 1
<044A74B LR026031
AIR BAG - KNEE
I/P Facia Contrast - Lunar / Driver, Knee Protection / From: GT000001 		$643.61 1
<044A74B LR026033
AIR BAG - KNEE
I/P Facia Contrast - Lunar/Ivory / Driver, Knee Protection / From: GT000001 		$643.61 1
<044A74B LR026034
AIR BAG - KNEE
I/P Facia Contrast - Ebony Black / Driver, Knee Protection / From: GT000001 		$643.61 1
<044A74B LR026035
AIR BAG - KNEE
I/P Facia Contrast-Espresso/Almond / Driver, Knee Protection / From: GT000001 		$727.99 1
<044A74C LR026019
SIDE AIR BAG
Seat - Standard / RH, Seat Back / From: GT000001 		$510.52 1
<044A74C LR026021
SIDE AIR BAG
Seat - Standard / LH, Seat Back / From: GT000001 		$510.52 1
<044A74D LR026016
AIR BAG - PASSENGER
Passenger / From: GT000001 		$970.64 1
<044A74E LR026028
AIR BAG - CURTAIN
RH, Air Curtain / From: GT000001 		$591.94 1
<044A74E LR026030
AIR BAG - CURTAIN
LH, Air Curtain / From: GT000001 		$591.94 1
HB1 YYP500140
BOLT
Fixings Cannot Be Reused, M6 x 35MM, Torx / From: GT000001 		$1.40 4
HN1 LR031341
NUT - HEX.
Fixings Cannot Be Reused, HEX Flange, Hexagonal Head, M6 / From: GT000001 		$1.03 3
HS1 VYP500060
SCREW
4.8 X 16MM, Fixings Cannot Be Reused, Torx / From: GT000001
IN STOCK 		$0.47 4
9A451 LR028391
WIRING - AIR BAG
LHD / Passenger Side / From: GT000001 		$69.24 1
14B004A LR085161
SENSOR - AIR BAG
Front And Rear, RH/LH / From: GT000001 		$144.36 4
14B004B LR032046
SENSOR - AIR BAG
Front And Rear, RH/LH / From: GT000001 		$140.17 4
14B056 LR077205
MONITOR - AIRBAG DIAGNOSTIC MODULE
From: GT000001 		$799.85 1
14B345 LR028860
SENSOR - SIDE AIR BAG
RH/LH, Side / From: GT000001 		$49.10 2
