Name: Instrument Panel (Upper, Internal Components) (Halewood (UK), Head Up Display) ((V) FROMFH000001)
Rating: 5.0 (1 reviews)

Instrument Panel (Upper, Internal Components) (Halewood (UK), Head Up Display) ((V) FROMFH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Instrument Panel (Upper, Internal Components) (Halewood (UK), Head Up Display) ((V) FROMFH000001)

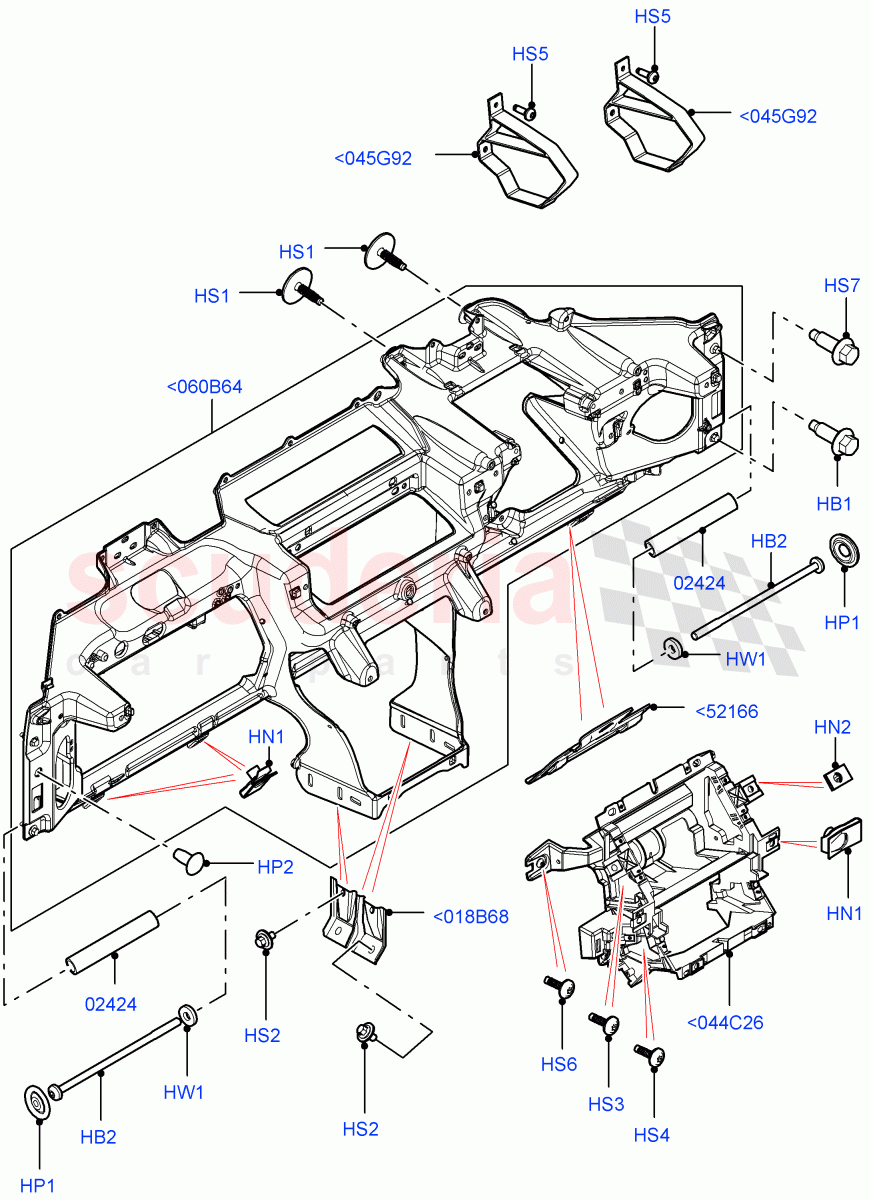

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049472	BOLT	$9.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	$1.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR006214	NUT	$1.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR000070	PLUG - BLANKING	$3.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032351	PLUG - RUBBER	$2.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030395	SCREW AND WASHER	$2.52	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501150	SCREW AND WASHER	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
	PYP500140	SCREW	$0.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR006211	SCREW	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR025172	SCREW	$1.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR028425	SCREW	$1.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500460	BOLT - HEX.HEAD	$5.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR005903	WASHER	$1.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR026084	EXTENSION - DASH PANEL	$3.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073097	BRACKET - SUPPORT	$30.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062491	BRACKET - INSTRUMENT PANEL	$41.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR026134	MOULDING - INSTRUMENT PANEL	$74.14	To Order
	LR071333	MOULDING - INSTRUMENT PANEL	$160.35	To Order
	LR087748	MOULDING - INSTRUMENT PANEL	$163.08	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR029225	Brace	$20.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR055532	REINFORCEMENT - INSTRUMENT PANEL	$784.63	To Order
	LR055533	REINFORCEMENT - INSTRUMENT PANEL	$784.63	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<018B68	LR062491	BRACKET - INSTRUMENT PANEL	LR062491 BRACKET - INSTRUMENT PANEL From: FH000001	$41.65	2
<044C26	LR026134	MOULDING - INSTRUMENT PANEL	LR026134 MOULDING - INSTRUMENT PANEL From: FH000001 / To: FH999999	$74.14	1
<044C26	LR071333	MOULDING - INSTRUMENT PANEL	LR071333 MOULDING - INSTRUMENT PANEL From: GH000001 / To: GH125983	$160.35	1
<044C26	LR087748	MOULDING - INSTRUMENT PANEL	LR087748 MOULDING - INSTRUMENT PANEL NGI Head Unit / From: GH125984 / To: HH206196	$163.08	1
<044C26	LR095475	MOULDING - INSTRUMENT PANEL	LR095475 MOULDING - INSTRUMENT PANEL Infotainment Head Unit Level C / From: HH206197	$492.86	1
<045G92	LR029225	Brace	LR029225 Brace (+)"CDN/MEX/USA" / From: FH000001	$20.79	2
<060B64	LR055532	REINFORCEMENT - INSTRUMENT PANEL	LR055532 REINFORCEMENT - INSTRUMENT PANEL LHD / From: FH000001	$784.63	1
<060B64	LR055533	REINFORCEMENT - INSTRUMENT PANEL	LR055533 REINFORCEMENT - INSTRUMENT PANEL RHD / From: FH000001	$784.63	1
<52166	LR073097	BRACKET - SUPPORT	LR073097 BRACKET - SUPPORT RHD / From: GH103080	$30.46	1
HB1	RYG500440	BOLT	RYG500440 BOLT Hexagonal Head, M8 X 20MM / From: FH000001	$1.03	8
HB2	LR049472	BOLT	LR049472 BOLT M12 X 1.25 X 240 / From: FH000001	$9.97	2
HN1	LR000053	NUT - FLANGED IN STOCK	LR000053 NUT - FLANGED M6 / From: FH000001 IN STOCK	$1.63	1
HN2	LR006214	NUT IN STOCK	LR006214 NUT 4.2 X 2.25 - 3 / From: FH000001 IN STOCK	$1.12	1
HP1	LR000070	PLUG - BLANKING	LR000070 PLUG - BLANKING 40 x 0.7 - 3.0 / From: FH000001	$3.39	2
HP2	LR032351	PLUG - RUBBER	LR032351 PLUG - RUBBER 13 X 3.5, Reinforcement, Rubber / From: FH000001	$2.65	2
HS1	LR030395	SCREW AND WASHER	LR030395 SCREW AND WASHER M8 x 28MM / From: FH000001	$2.52	2
HS2	RYG501150	SCREW AND WASHER	RYG501150 SCREW AND WASHER M8 Hex, M8 X 16MM / From: FH000001	$0.92	8
HS3	PYP500140	SCREW IN STOCK	PYP500140 SCREW 4.2 x 13MM, Torx / From: FH000001 IN STOCK	$0.77	1
HS4	LR006211	SCREW IN STOCK	LR006211 SCREW 4.2 x 16MM, Torx / From: FH000001 IN STOCK	$0.52	1
HS5	LR025172	SCREW IN STOCK	LR025172 SCREW M6 X 16MM / From: FH000001 IN STOCK	$1.24	1
HS6	LR028425	SCREW IN STOCK	LR028425 SCREW M6 X 1.4 X 17 / From: FH000001 IN STOCK	$1.11	1
HS7	RYG500460	BOLT - HEX.HEAD IN STOCK	RYG500460 BOLT - HEX.HEAD Hexagonal Head, M8 X 25MM / From: FH000001 IN STOCK	$5.05	2
HW1	LR005903	WASHER	LR005903 WASHER 13.4 X 32 X 6 FL Steel / From: FH000001	$1.95	2
02424	LR026084	EXTENSION - DASH PANEL	LR026084 EXTENSION - DASH PANEL From: FH000001	$3.71	1

Instrument Panel (Upper, Internal Components) (Halewood (Uk), Head Up Display) ((V) Fromfh000001)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Instrument Panel (Upper, Internal Components) (Halewood (UK), Head Up Display) ((V) FROMFH000001)
