Anti-Theft Alarm Systems (Halewood (Uk))

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Anti-Theft Alarm Systems (Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR031680 BOLT - SPECIAL $1.70 To Order
Photo Part No Description Price (each) Stock
RYQ500040 FASTENER $0.63 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.48 IN STOCK
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.60 IN STOCK
Photo Part No Description Price (each) Stock
DYH500190 NUT - FLANGED $4.37 To Order
LR080278 NUT - FLANGED $0.66 To Order
Photo Part No Description Price (each) Stock
RYH500950 NUT - ADJUSTING $1.22 To Order
Photo Part No Description Price (each) Stock
RYP500730 SCREW $0.71 To Order
Photo Part No Description Price (each) Stock
PYP500140 SCREW $0.78 IN STOCK
Photo Part No Description Price (each) Stock
VYP500060 SCREW $0.50 IN STOCK
Photo Part No Description Price (each) Stock
4648959 SCREW $4.12 To Order
Photo Part No Description Price (each) Stock
ESR0567 STUD $3.43 To Order
Photo Part No Description Price (each) Stock
LR034201 HORN $75.57 To Order
Photo Part No Description Price (each) Stock
LR020114 TRANSCEIVER - ANTI THEFT $51.47 To Order
Photo Part No Description Price (each) Stock
LR031729 HEAT SHIELD - EXHAUST $18.14 To Order
Photo Part No Description Price (each) Stock
LR031719 BRACKET - HORN $13.28 To Order
LR039639 BRACKET - HORN $20.50 To Order
LR108638 BRACKET - HORN $30.79 To Order
Photo Part No Description Price (each) Stock
LR075053 BRACKET - AERIAL $8.52 To Order
Photo Part No Description Price (each) Stock
LR033377 WIRE - SCANNING MODULE $27.61 To Order
Photo Part No Description Price (each) Stock
LR028318 WIRING - SECURITY SOUNDER $41.60 To Order
Photo Part No Description Price (each) Stock
LR028317 WIRING - SECURITY SOUNDER $27.70 To Order
Photo Part No Description Price (each) Stock
LR080756 MODULE - PASSIVE START $233.11 To Order
LR071386 MODULE - PASSIVE START $326.80 To Order
LR071651 MODULE - PASSIVE START $326.80 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR032735 SENSOR AND BRACKET - INTERIOR SCAN $132.82 To Order
LR045341 SENSOR AND BRACKET - INTERIOR SCAN $195.45 To Order
LR053183 SENSOR AND BRACKET - INTERIOR SCAN $201.77 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR012709 ANTENNA - LF $15.29 To Order
LR012709 ANTENNA - LF $15.29 To Order
Photo Part No Description Price (each) Stock
LR173841 LATCH - HOOD $45.72 To Order
LR041431 SWITCH - HOOD ANTI-THEFT $29.08 To Order
Photo Part No Description Price (each) Stock
LR023909 HORN $197.21 To Order
LR067841 SIREN - ANTI-THEFT ALARM SYSTEM $179.13 To Order
Photo Part No Description Price (each) Stock
LR012397 RECEIVER - RADIO REMOTE CONTROL $81.23 To Order
LR012398 RECEIVER - RADIO REMOTE CONTROL $93.66 To Order
LR039647 RECEIVER - RADIO REMOTE CONTROL $68.71 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR138596 RECEIVER - RADIO REMOTE CONTROL $107.42 To Order
LR138730 RECEIVER - RADIO REMOTE CONTROL $108.26 To Order
View All

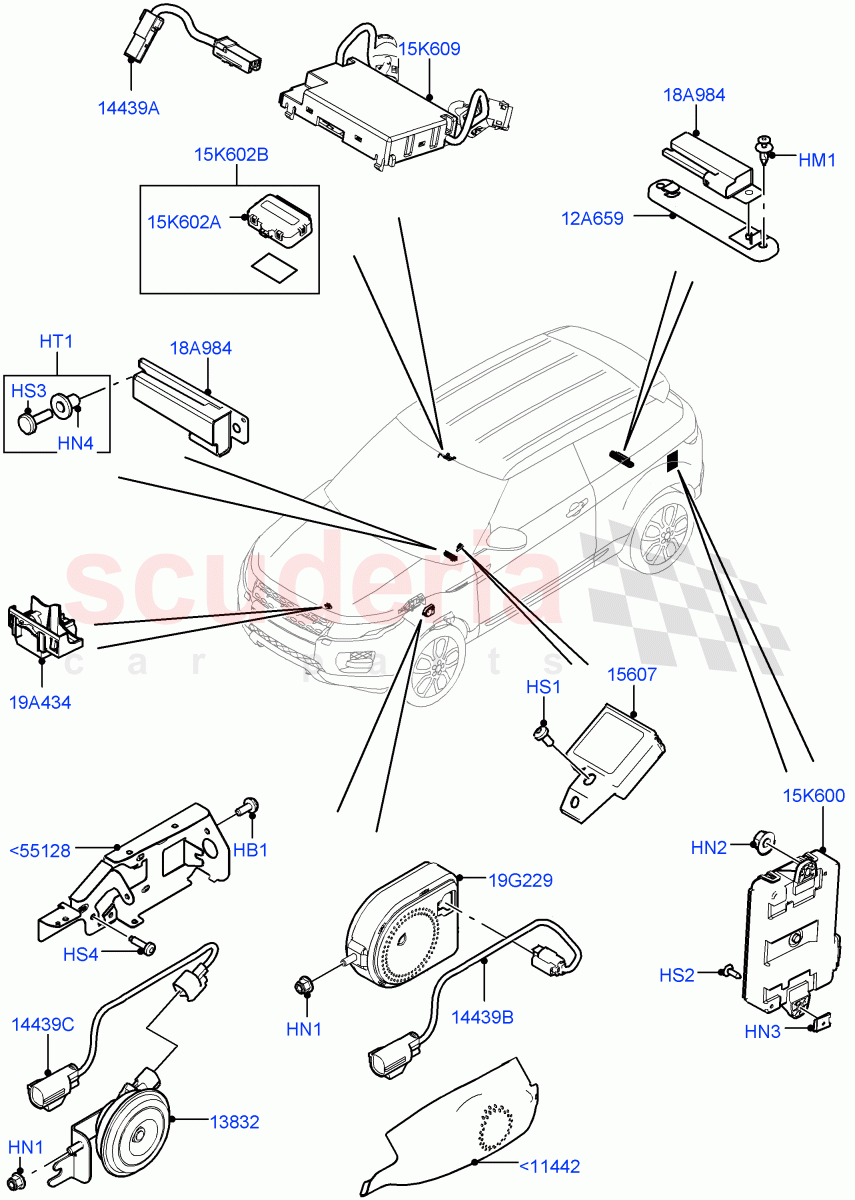

Anti-Theft Alarm Systems (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<11442 LR031729
HEAT SHIELD - EXHAUST
Siren 		$18.14 1
<55128 LR031719
BRACKET - HORN
Siren / To: CH686207 		$13.28 1
<55128 LR039639
BRACKET - HORN
Siren / From: CH686208 / To: JH271604 		$20.50 1
<55128 LR108638
BRACKET - HORN
Siren / From: JH271605 		$30.79 1
HB1 LR031680
BOLT - SPECIAL
M6 X 14MM, Special Bolt 		$1.70 2
HM1 RYQ500040
FASTENER
6.25 x 1.6/6MM / From: GH000001
IN STOCK 		$0.63 2
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.48 2
HN2 FX106046
NUT - FLANGED
Hexagonal Head, M6
IN STOCK 		$0.60 1
HN3 DYH500190
NUT - FLANGED
Nut "U" Spring, 		$4.37 1
HN3 LR080278
NUT - FLANGED
Nut "U" Spring, 		$0.66 1
HN4 RYH500950
NUT - ADJUSTING
4.8 X 8 X 8 X 0.7, Expanding Rivet, Includes Seal 		$1.22 4
HS1 RYP500730
SCREW
4 x 14MM, Torx 		$0.71 1
HS2 PYP500140
SCREW
4.2 x 13MM, Torx
IN STOCK 		$0.78 1
HS3 VYP500060
SCREW
4.8 X 16MM, Torx
IN STOCK 		$0.50 4
HS4 4648959
SCREW
M6 X 20MM, Torx 		$4.12 2
HT1 ESR0567
STUD
6.2 X 3-5.8 		$3.43 4
12A659 LR075053
BRACKET - AERIAL
Keyless Entry/Strt-Pass-Jap Script / From: GH000001 		$8.52 1
15K600 LR080756
MODULE - PASSIVE START
With Keyless Start / From: FH986021 / To: HH186711 		$233.11 1
15K600 LR071386
MODULE - PASSIVE START
Keyless Entry/Start - Passive / To: FH986020 		$326.80 1
15K600 LR071651
MODULE - PASSIVE START
With Keyless Start / From: FH035552 / To: FH986020 		$326.80 1
15K600 LR071424
MODULE - PASSIVE START
Keyless Start - Japanese Script / From: HH186712 		$246.75 1
15K600 LR080744
MODULE - PASSIVE START
Keyless Entry/Start - Passive / From: GH000001 		$181.10 1
15K600 LR071423
MODULE - PASSIVE START
Keyless Entry/Start - Passive / From: FH986021 / To: FH999999 		$182.29 1
15K600 LR071385
Module
Keyless Start - Japanese Script / To: FH035551 		$316.81 1
15K602A LR012397
RECEIVER - RADIO REMOTE CONTROL
315 MHZ Door Lock Frequency / To: CH671758 		$81.23 1
15K602A LR012398
RECEIVER - RADIO REMOTE CONTROL
433 MHZ Door Lock Frequency / To: CH671758 		$93.66 1
15K602A LR039647
RECEIVER - RADIO REMOTE CONTROL
315 MHZ Door Lock Frequency / From: CH671759 / To: GH087917 		$68.71 1
15K602A LR039648
RECEIVER - RADIO REMOTE CONTROL
433 MHZ Door Lock Frequency / From: CH671759 / To: GH087917 		$70.08 1
15K602A LR080281
RECEIVER - RADIO REMOTE CONTROL
315 MHZ Door Lock Frequency / From: GH087918 / To: GH090320 		$107.73 1
15K602A LR080282
RECEIVER - RADIO REMOTE CONTROL
433 MHZ Door Lock Frequency / From: GH087918 / To: GH090320 		$93.82 1
15K602A LR113850
RECEIVER - RADIO REMOTE CONTROL
315 MHZ Door Lock Frequency / From: GH090321 		$109.89 1
15K602A LR143239
RECEIVER - RADIO REMOTE CONTROL
433 MHZ Door Lock Frequency / From: GH090321 		$80.50 1
15K602B LR138596
RECEIVER - RADIO REMOTE CONTROL
315 MHZ Door Lock Frequency / Service Kit In Assembly With A Dual Lock Pad To Fit Where Needed / From: CH684393 		$107.42 1
15K602B LR138730
RECEIVER - RADIO REMOTE CONTROL
433 MHZ Door Lock Frequency / Service Kit In Assembly With A Dual Lock Pad To Fit Where Needed / From: CH684393 		$108.26 1
15K609 LR032735
SENSOR AND BRACKET - INTERIOR SCAN
Perimeter / Volume Theft System / To: DH725495 		$132.82 1
15K609 LR045341
SENSOR AND BRACKET - INTERIOR SCAN
Perimeter / Volume Theft System / From: DH725496 / To: DH999999 		$195.45 1
15K609 LR053183
SENSOR AND BRACKET - INTERIOR SCAN
5 Door, Perimeter / Volume Theft System / From: EH000001 / To: HH199720 		$201.77 1
15K609 LR083344
SENSOR AND BRACKET - INTERIOR SCAN
2 Door Convertible, Perimeter / Volume Theft System / From: GH000001 / To: HH199720 		$202.96 1
15K609 LR106725
SENSOR AND BRACKET - INTERIOR SCAN
Perimeter / Volume Theft System / From: HH199721 		$180.28 1
18A984 LR012709
ANTENNA - LF
Keyless Start - Japanese Script / Remote Keyless Antenna 		$15.29 2
18A984 LR012709
ANTENNA - LF
Keyless Entry/Strt-Pass-Jap Script / Located In Rear Bumper, Remote Keyless Antenna / From: GH000001 		$15.29 6
19A434 LR173841
LATCH - HOOD
To: CH690005 		$45.72 1
19A434 LR041431
SWITCH - HOOD ANTI-THEFT
From: CH690006 / To: DH852431 		$29.08 1
19G229 LR023909
HORN
BBU With Tilt Sensor, Perimeter / Volume Theft System / To: EH999999 		$197.21 1
19G229 LR067841
SIREN - ANTI-THEFT ALARM SYSTEM
BBU With Tilt Sensor, Perimeter / Volume Theft System / From: FH000001 		$179.13 1
13832 LR034201
HORN
Securty Siren - Less Battery Backup 		$75.57 1
14439A LR033377
WIRE - SCANNING MODULE
Interior Motion Sensor 		$27.61 1
14439B LR028318
WIRING - SECURITY SOUNDER
BBU With Tilt Sensor 		$41.60 1
14439C LR028317
WIRING - SECURITY SOUNDER
Securty Siren - Less Battery Backup 		$27.70 1
15607 LR020114
TRANSCEIVER - ANTI THEFT
With Engine Immobiliser 		$51.47 1
