Name: Battery And Mountings (Changsu (China), Starter - Stop/Start System) ((V) FROMEG000001)
Rating: 4.8 (1 reviews)

Battery And Mountings (Changsu (China), Starter - Stop/Start System) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Battery And Mountings (Changsu (China), Starter - Stop/Start System) ((V) FROMEG000001)

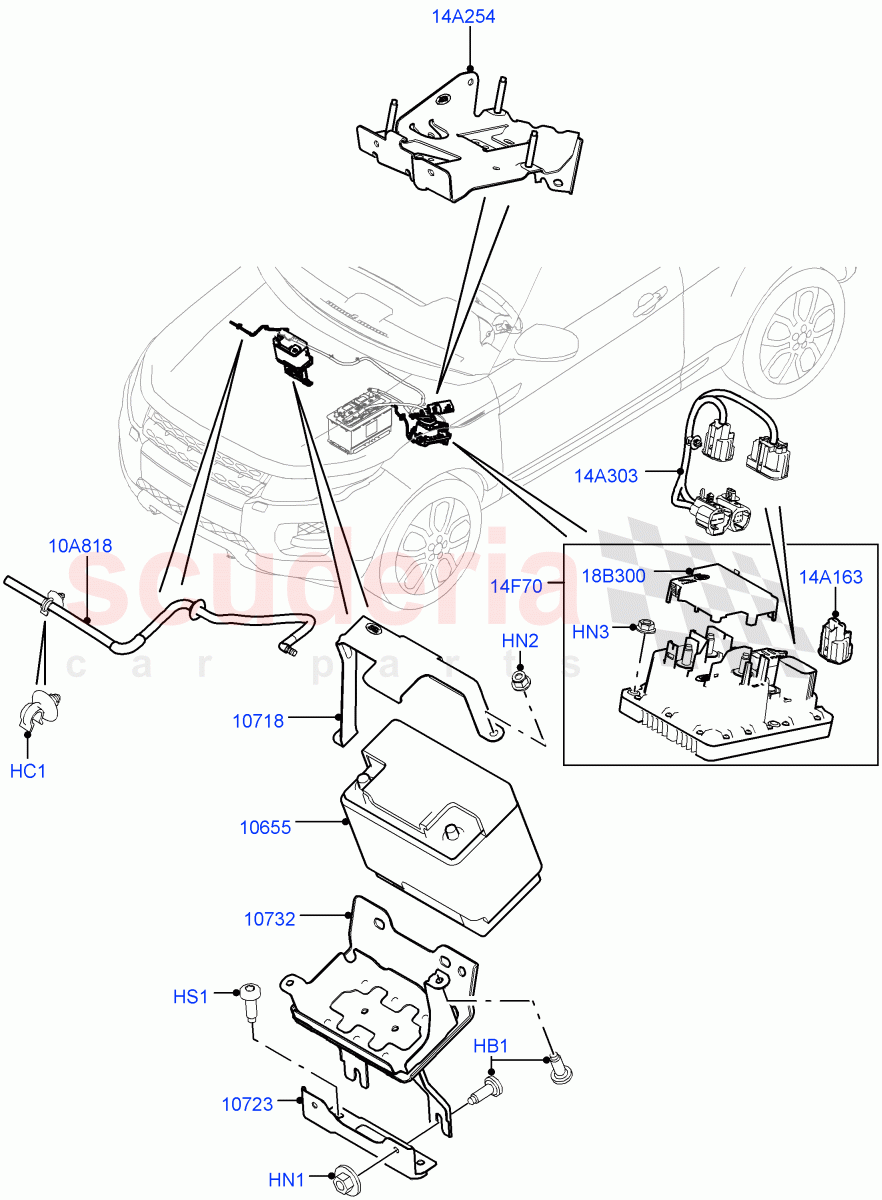

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AYG500030	BOLT	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050522	CLIP - HOSE	$3.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	$3.13	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR043873	SCREW - PAN - TORX	$1.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR047630	BATTERY NON SPILLABLE	$279.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061668	BRACKET - BATTERY HOLD DOWN	$16.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049320	SUPPORT - BATTERY TRAY	$36.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049322	TRAY - BATTERY	$31.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048786	POWER SUPPLY DISTRIBUTION BOX	$627.47	To Order
	LR067367	POWER SUPPLY DISTRIBUTION BOX	$2,114.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047577	TUBE - VENTILATION	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048824	PLUG - BLANKING	$3.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047578	BRACKET - FUSE BOX	$26.47	To Order
	LR078367	BRACKET - FUSE BOX	$28.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047603	WIRE - ACCESSORY FEED	$79.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048567	COVER - PWR SUPPLY DISTRIBUTION BOX	$15.44	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	AYG500030	BOLT	AYG500030 BOLT M6 x 15 / From: EG000001	$0.59	4
HC1	LR050522	CLIP - HOSE IN STOCK	LR050522 CLIP - HOSE Clip 8-9X6.5X1.5-5, Ventilation Tube / From: EG000001 IN STOCK	$3.66	1
HN1	RYH500310	NUT AND WASHER - HEX. IN STOCK	RYH500310 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer / From: EG000001 IN STOCK	$3.13	4
HN2	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. Hexagonal Head, M6 / From: EG000001 IN STOCK	$0.70	2
HN3	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: EG000001 IN STOCK	$1.48	3
HS1	LR043873	SCREW - PAN - TORX IN STOCK	LR043873 SCREW - PAN - TORX M6 X 16MM, Torx / From: EG000001 IN STOCK	$1.09	2
10A818	LR047577	TUBE - VENTILATION	LR047577 TUBE - VENTILATION From: EG000001	$33.68	1
14A163	LR048824	PLUG - BLANKING	LR048824 PLUG - BLANKING Power Supply Distribution Box / From: EG000001	$3.92	1
14A254	LR047578	BRACKET - FUSE BOX	LR047578 BRACKET - FUSE BOX Power Supply Distribution Box / From: EG000001 / To: GG134737	$26.47	1
14A254	LR078367	BRACKET - FUSE BOX	LR078367 BRACKET - FUSE BOX Power Supply Distribution Box / From: GG134738	$28.81	1
14A303	LR047603	WIRE - ACCESSORY FEED	LR047603 WIRE - ACCESSORY FEED Power Supply Distribution Box / From: EG000001	$79.20	1
14F70	LR048786	POWER SUPPLY DISTRIBUTION BOX	LR048786 POWER SUPPLY DISTRIBUTION BOX 9 Speed Auto AWD / From: EG000001 / To: FG100063	$627.47	1
14F70	LR067367	POWER SUPPLY DISTRIBUTION BOX	LR067367 POWER SUPPLY DISTRIBUTION BOX 9 Speed Auto AWD / From: FG100064	$2,114.17	1
18B300	LR048567	COVER - PWR SUPPLY DISTRIBUTION BOX	LR048567 COVER - PWR SUPPLY DISTRIBUTION BOX Power Supply Distribution Box / From: EG000001	$15.44	1
10655	LR047630	BATTERY NON SPILLABLE	LR047630 BATTERY NON SPILLABLE Auxiliary / From: EG000001	$279.70	1
10718	LR061668	BRACKET - BATTERY HOLD DOWN	LR061668 BRACKET - BATTERY HOLD DOWN From: EG000001	$16.84	1
10723	LR049320	SUPPORT - BATTERY TRAY	LR049320 SUPPORT - BATTERY TRAY From: EG000001	$36.74	1
10732	LR049322	TRAY - BATTERY	LR049322 TRAY - BATTERY From: EG000001	$31.77	1

Battery And Mountings (Changsu (China), Starter - Stop/Start System) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Battery And Mountings (Changsu (China), Starter - Stop/Start System) ((V) FROMEG000001)
