Instrument Panel (Upper, Internal Components) (Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Instrument Panel (Upper, Internal Components) (Changsu (China)) ((V) FROMEG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500440 BOLT $1.02 To Order
Photo Part No Description Price (each) Stock
LR049472 BOLT $9.89 To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED $1.61 IN STOCK
Photo Part No Description Price (each) Stock
LR006214 NUT $1.11 IN STOCK
Photo Part No Description Price (each) Stock
LR000070 PLUG - BLANKING $3.36 To Order
Photo Part No Description Price (each) Stock
LR032351 PLUG - RUBBER $2.63 To Order
Photo Part No Description Price (each) Stock
LR030395 SCREW AND WASHER $2.50 To Order
Photo Part No Description Price (each) Stock
RYG501150 SCREW AND WASHER $0.91 To Order
Photo Part No Description Price (each) Stock
PYP500140 SCREW $0.77 IN STOCK
Photo Part No Description Price (each) Stock
LR006211 SCREW $0.52 IN STOCK
Photo Part No Description Price (each) Stock
LR028425 SCREW $1.10 IN STOCK
Photo Part No Description Price (each) Stock
RYG500460 BOLT - HEX.HEAD $5.01 IN STOCK
Photo Part No Description Price (each) Stock
LR026084 EXTENSION - DASH PANEL $3.68 To Order
Photo Part No Description Price (each) Stock
LR062491 BRACKET - INSTRUMENT PANEL $41.33 To Order
Photo Part No Description Price (each) Stock
LR026134 MOULDING - INSTRUMENT PANEL $73.56 To Order
LR087748 MOULDING - INSTRUMENT PANEL $161.81 To Order
LR095475 MOULDING - INSTRUMENT PANEL $489.01 To Order
Photo Part No Description Price (each) Stock
LR055530 REINFORCEMENT - INSTRUMENT PANEL $707.71 To Order
View All

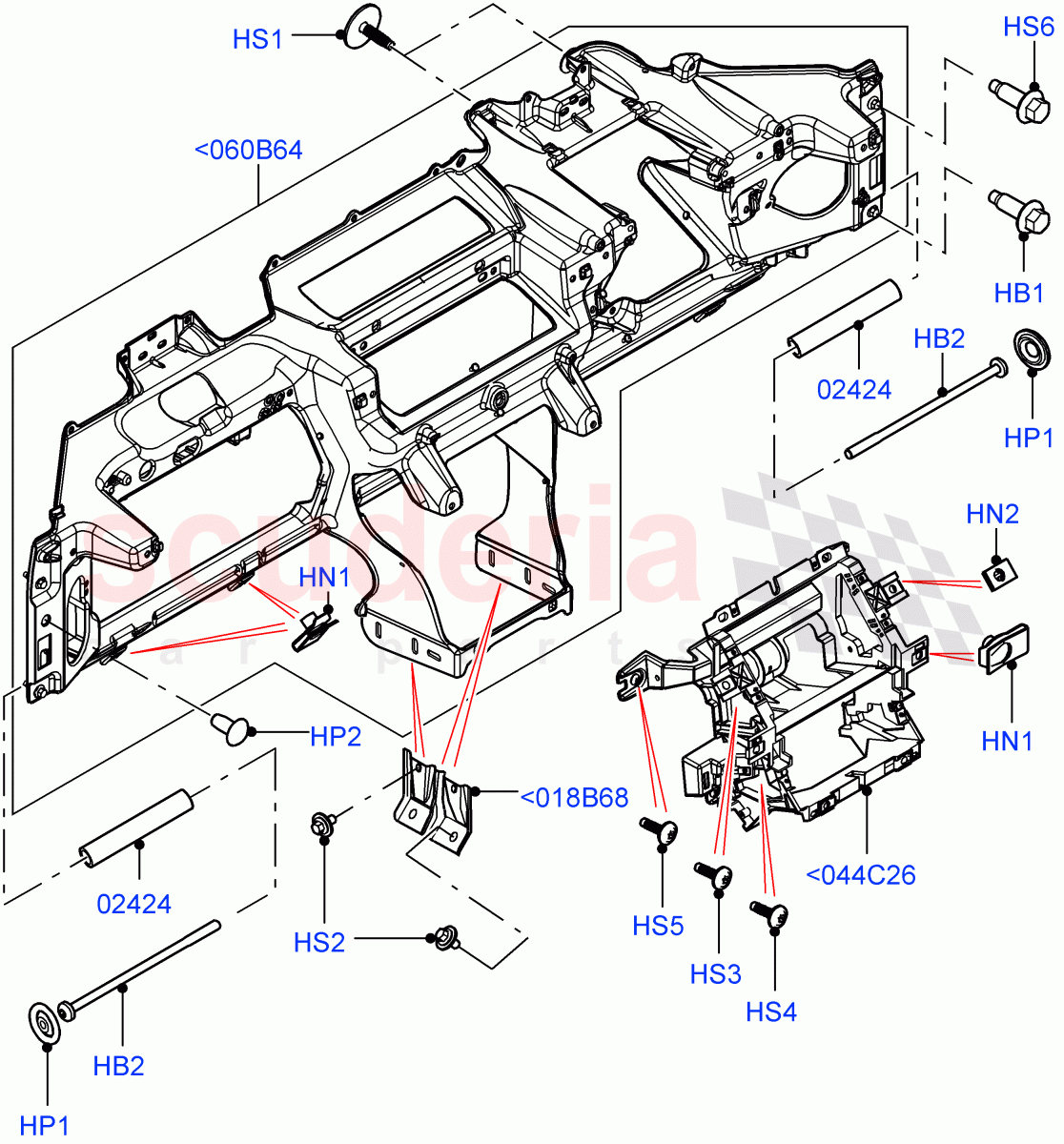

Instrument Panel (Upper, Internal Components) (Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<018B68 LR062491
BRACKET - INSTRUMENT PANEL
From: EG000001 		$41.33 2
<044C26 LR026134
MOULDING - INSTRUMENT PANEL
From: EG000001 / To: GG146040 		$73.56 1
<044C26 LR087748
MOULDING - INSTRUMENT PANEL
From: GG146041 / To: HG158839 		$161.81 1
<044C26 LR095475
MOULDING - INSTRUMENT PANEL
From: HG158840 		$489.01 1
<060B64 LR055530
REINFORCEMENT - INSTRUMENT PANEL
From: EG000001 		$707.71 1
HB1 RYG500440
BOLT
Hexagonal Head, M8 X 20MM / From: EG000001 		$1.02 2
HB2 LR049472
BOLT
M12 X 1.25 X 240 / From: EG000001 		$9.89 2
HN1 LR000053
NUT - FLANGED
M6, Reinforcement / From: EG000001
IN STOCK 		$1.61 1
HN2 LR006214
NUT
4.2 X 2.25 - 3 / From: EG000001
IN STOCK 		$1.11 1
HP1 LR000070
PLUG - BLANKING
40 x 0.7 - 3.0 / From: EG000001 		$3.36 2
HP2 LR032351
PLUG - RUBBER
13 X 3.5, Reinforcement, Rubber / From: EG000001 		$2.63 2
HS1 LR030395
SCREW AND WASHER
M8 x 28MM / From: EG000001 		$2.50 2
HS2 RYG501150
SCREW AND WASHER
M8 Hex, M8 X 16MM / From: EG000001 		$0.91 8
HS3 PYP500140
SCREW
4.2 x 13MM, Torx / From: EG000001
IN STOCK 		$0.77 1
HS4 LR006211
SCREW
4.2 x 16MM, Torx / From: EG000001
IN STOCK 		$0.52 1
HS5 LR028425
SCREW
M6 X 1.4 X 17 / From: EG000001
IN STOCK 		$1.10 1
HS6 RYG500460
BOLT - HEX.HEAD
Hexagonal Head, M8 X 25MM / From: EG000001
IN STOCK 		$5.01 2
02424 LR026084
EXTENSION - DASH PANEL
From: EG000001 		$3.68 2
