Console - Floor (External Components) (Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Console - Floor (External Components) (Itatiaia (Brazil)) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR044894 CLIP $1.45 IN STOCK
Photo Part No Description Price (each) Stock
LR003016 SCREW AND WASHER $2.04 To Order
Photo Part No Description Price (each) Stock
PYP500140 SCREW $0.77 IN STOCK
Photo Part No Description Price (each) Stock
LR080321 PANEL - CONSOLE - SIDE FINISHER $287.20 To Order
LR080324 PANEL - CONSOLE - SIDE FINISHER $245.97 To Order
Photo Part No Description Price (each) Stock
LR047972 INTAGLIO - CONSOLE CENTRE $35.89 To Order
Photo Part No Description Price (each) Stock
LR066247 PANEL - CONSOLE - END FINISHER $314.01 To Order
LR066248 PANEL - CONSOLE - END FINISHER $314.01 To Order
Photo Part No Description Price (each) Stock
LR066240 PANEL - CONSOLE - END FINISHER $314.01 To Order
LR066241 PANEL - CONSOLE - END FINISHER $295.38 To Order
Photo Part No Description Price (each) Stock
LR066252 PANEL - CONSOLE $314.25 To Order
LR066253 PANEL - CONSOLE $314.25 To Order
Photo Part No Description Price (each) Stock
FHE500012PVJ COVER - CONSOLE FIXING $9.84 To Order
Photo Part No Description Price (each) Stock
LR058304 PANEL - CONSOLE $50.96 To Order
Photo Part No Description Price (each) Stock
LR052909 PANEL - CONSOLE $34.62 To Order
Photo Part No Description Price (each) Stock
LR071530 PANEL - CONSOLE SIDE $307.80 To Order
LR071531 PANEL - CONSOLE SIDE $268.36 To Order
LR071535 PANEL - CONSOLE SIDE $309.93 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR025674 PANEL - CONSOLE SIDE $116.62 To Order
LR025673 PANEL - CONSOLE SIDE $116.62 To Order
LR025668 PANEL - CONSOLE SIDE $112.11 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR025645 MAT - CONSOLE STOWAGE $9.02 To Order
Photo Part No Description Price (each) Stock
LR052910 MAT - CONSOLE STOWAGE $35.89 To Order
View All

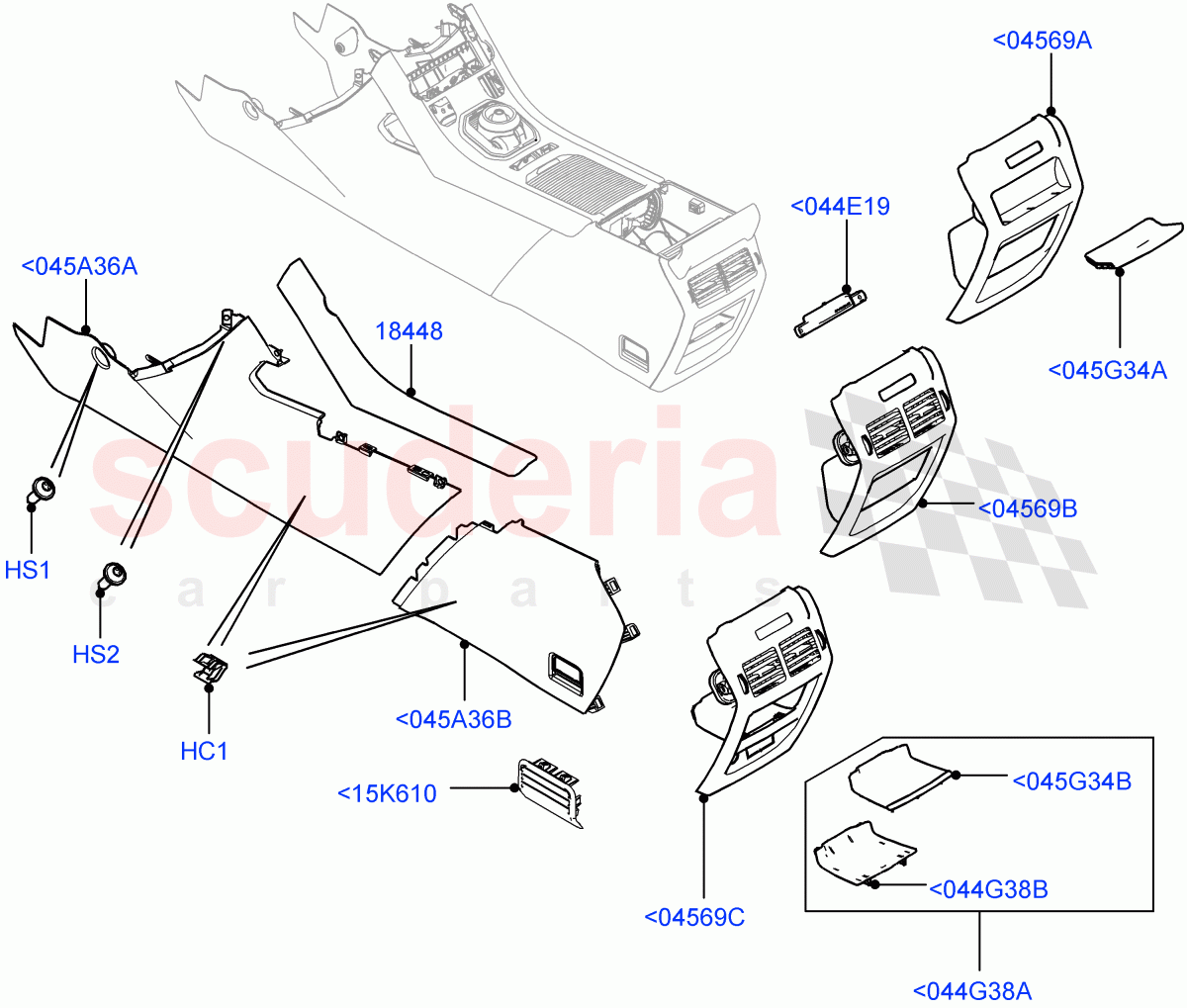

Console - Floor (External Components) (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<15K610 FHE500012PVJ
COVER - CONSOLE FIXING
From: GT000001 		$9.84 2
<044E19 LR047972
INTAGLIO - CONSOLE CENTRE
Less Seat Temperature Control / From: GT000001 		$35.89 1
<044G38A LR058304
PANEL - CONSOLE
Rear End Console With Vents, Rear Entertainment Screen / Includes Mat / From: GT000001 		$50.96 1
<044G38B LR052909
PANEL - CONSOLE
Rear End Console With Vents, Rear Entertainment Screen / From: GT000001 		$34.62 1
<045A36A LR071530
PANEL - CONSOLE SIDE
I/P Facia Contrast - Ebony Black / RH, Front / From: GT000001 		$307.80 1
<045A36A LR071531
PANEL - CONSOLE SIDE
I/P Facia Contrast-Espresso/Almond / RH, Front / From: GT000001 		$268.36 1
<045A36A LR071535
PANEL - CONSOLE SIDE
I/P Facia Contrast - Ebony Black / LH, Front / From: GT000001 		$309.93 1
<045A36A LR071536
PANEL - CONSOLE SIDE
I/P Facia Contrast-Espresso/Almond / LH, Front / From: GT000001 		$309.93 1
<045A36B LR025674
PANEL - CONSOLE SIDE
I/P Facia Contrast - Ebony Black / RH, Rear / From: GT000001 		$116.62 1
<045A36B LR025673
PANEL - CONSOLE SIDE
I/P Facia Contrast-Espresso/Almond / RH, Rear / From: GT000001 		$116.62 1
<045A36B LR025668
PANEL - CONSOLE SIDE
I/P Facia Contrast - Ebony Black / LH, Rear / From: GT000001 		$112.11 1
<045A36B LR025667
PANEL - CONSOLE SIDE
I/P Facia Contrast-Espresso/Almond / LH, Rear / From: GT000001 		$116.62 1
<045G34A LR025645
MAT - CONSOLE STOWAGE
Rear End Console With Stowage / From: GT000001 		$9.02 1
<045G34B LR052910
MAT - CONSOLE STOWAGE
Rear End Console With Vents, Rear Entertainment Screen / From: GT000001 		$35.89 1
<04569A LR066247
PANEL - CONSOLE - END FINISHER
I/P Facia Contrast - Ebony Black, Less Rear Entertainment Screen, Rear End Console With Stowage / From: GT000001 		$314.01 1
<04569A LR066248
PANEL - CONSOLE - END FINISHER
I/P Facia Contrast-Espresso/Almond, Less Rear Entertainment Screen, Rear End Console With Stowage / From: GT000001 		$314.01 1
<04569B LR066240
PANEL - CONSOLE - END FINISHER
I/P Facia Contrast - Ebony Black, Less Rear Entertainment Screen, Rear End Console With Vents / From: GT000001 		$314.01 1
<04569B LR066241
PANEL - CONSOLE - END FINISHER
I/P Facia Contrast-Espresso/Almond, Less Rear Entertainment Screen, Rear End Console With Vents / From: GT000001 		$295.38 1
<04569C LR066252
PANEL - CONSOLE
I/P Facia Contrast - Ebony Black, Rear End Console With Vents, Rear Entertainment Screen / From: GT000001 		$314.25 1
<04569C LR066253
PANEL - CONSOLE
I/P Facia Contrast-Espresso/Almond, Rear End Console With Vents, Rear Entertainment Screen / From: GT000001 		$314.25 1
HC1 LR044894
CLIP
0.8 - 2.5 / From: GT000001
IN STOCK 		$1.45 1
HS1 LR003016
SCREW AND WASHER
17.0MM, 4.2 / From: GT000001 		$2.04 2
HS2 PYP500140
SCREW
4.2 x 13MM, Torx, With Cup Holder / From: GT000001
IN STOCK 		$0.77 1
18448 LR080321
PANEL - CONSOLE - SIDE FINISHER
Gloss Black Strata / RH / From: GT000001 		$287.20 1
18448 LR080324
PANEL - CONSOLE - SIDE FINISHER
Gloss Black Strata / LH / From: GT000001 		$245.97 1
