Rear Brake Discs And Calipers (Changsu (China)) ((V) Fromeg000001, (V) Togg134737)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Rear Brake Discs And Calipers (Changsu (China)) ((V) FROMEG000001, (V) TOGG134737)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR002080 BOLT $3.20 IN STOCK
Photo Part No Description Price (each) Stock
LR042690 BOLT $6.09 IN STOCK
Photo Part No Description Price (each) Stock
LR018509 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR015523 SCREW - BLEED $6.76 IN STOCK
Photo Part No Description Price (each) Stock
LR032821 SHIELD - BRAKE DISC SPLASH $26.74 To Order
LR032822 SHIELD - BRAKE DISC SPLASH $26.74 To Order
Photo Part No Description Price (each) Stock
LR027126 CALIPER - BRAKE - LESS PADS $334.43 To Order
LR027128 CALIPER - BRAKE - LESS PADS $334.43 To Order
Photo Part No Description Price (each) Stock
LR031319 BOLT $3.47 IN STOCK
Photo Part No Description Price (each) Stock
LR027130 BRACKET - BRAKE CALIPER $152.97 To Order
Photo Part No Description Price (each) Stock
LR027123 DISC - BRAKE - SOLID $104.42 To Order
Photo Part No Description Price (each) Stock
STC1913 CAP - BLEED SCREW $6.17 IN STOCK
Photo Part No Description Price (each) Stock
SEE500030 KIT - SLIDE PIN BOOT $18.45 IN STOCK
Photo Part No Description Price (each) Stock
LR043714 BRAKE PADS - WITH SPRINGS $109.76 To Order
View All

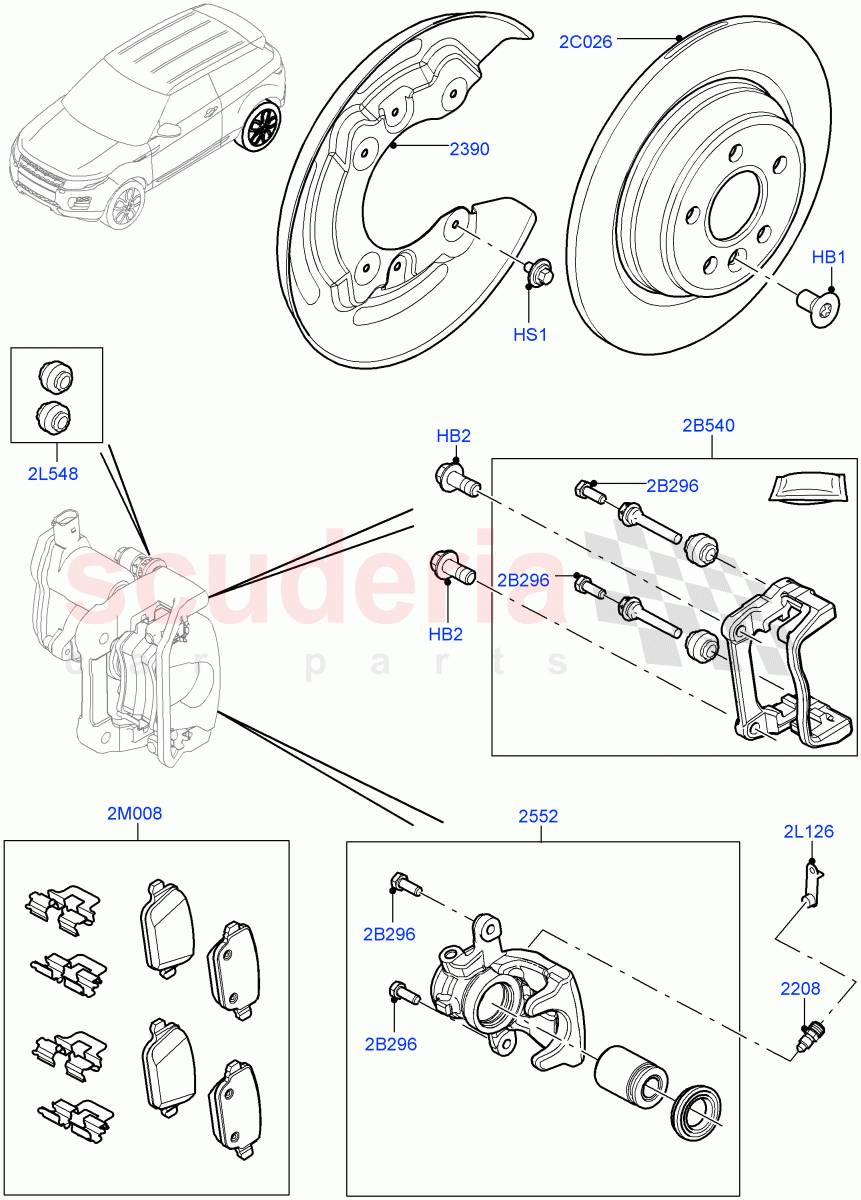

Rear Brake Discs And Calipers (Changsu (China)) ((V) FROMEG000001, (V) TOGG134737) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR002080
BOLT
M10 X 20MM, Torx / From: EG000001 / To: GG134737
IN STOCK 		$3.20 2
HB2 LR042690
BOLT
Hex Head, M12 x 36MM / From: EG000001 / To: GG134737
IN STOCK 		$6.09 4
HS1 LR018509
SCREW
M6 X 10MM, Torx / From: EG000001 / To: GG134737
IN STOCK 		$1.24 6
2B296 LR031319
BOLT
Pin - Guide / From: EG000001 / To: GG134737
IN STOCK 		$3.47 2
2B540 LR027130
BRACKET - BRAKE CALIPER
RH/LH / From: EG000001 / To: GG134737 		$152.97 2
2C026 LR027123
DISC - BRAKE - SOLID
302MM / From: EG000001 / To: GG134737 		$104.42 2
2L126 STC1913
CAP - BLEED SCREW
From: EG000001 / To: GG134737
IN STOCK 		$6.17 2
2L548 SEE500030
KIT - SLIDE PIN BOOT
Dust Boots / From: EG000001 / To: GG134737
IN STOCK 		$18.45 2
2M008 LR043714
BRAKE PADS - WITH SPRINGS
With Clips / From: EG000001 / To: GG134737 		$109.76 1
2208 LR015523
SCREW - BLEED
From: EG000001 / To: GG134737
IN STOCK 		$6.76 2
2390 LR032821
SHIELD - BRAKE DISC SPLASH
RH / From: EG000001 / To: GG134737 		$26.74 1
2390 LR032822
SHIELD - BRAKE DISC SPLASH
LH / From: EG000001 / To: GG134737 		$26.74 1
2552 LR027126
CALIPER - BRAKE - LESS PADS
RH / From: EG000001 / To: GG134737 		$334.43 1
2552 LR027128
CALIPER - BRAKE - LESS PADS
LH / From: EG000001 / To: GG134737 		$334.43 1
