Name: Front Brake Discs And Calipers (Halewood (UK), Front Disc And Caliper Size 17) ((V) FROMGH000001)
Rating: 4.7 (1 reviews)

Front Brake Discs And Calipers (Halewood (UK), Front Disc And Caliper Size 17) ((V) FROMGH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Front Brake Discs And Calipers (Halewood (UK), Front Disc And Caliper Size 17) ((V) FROMGH000001)

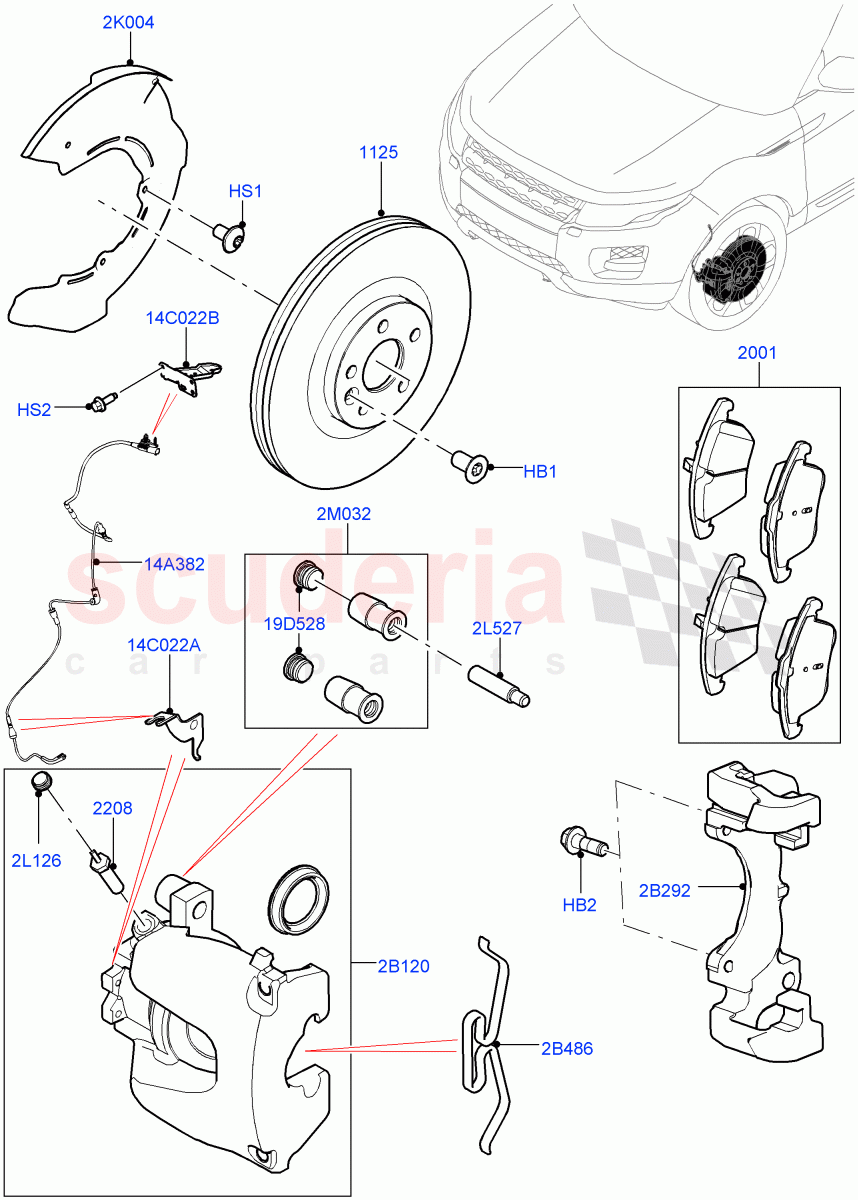

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR002080	BOLT	$3.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR058339	BOLT	$4.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500920	SCREW	$0.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500190	SCREW	$0.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR059122	DISC - BRAKE - VENTED	$167.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR160435	BRAKE PADS - LESS SPRINGS	$147.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000377	SCREW - BLEED	$6.10	IN STOCK
	LR061377	SCREW - BLEED	$13.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061370	CALIPER - BRAKE	$279.50	To Order
	LR061369	CALIPER - BRAKE	$268.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061366	BRACKET - BRAKE CALIPER	$88.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061374	SPRING - BRAKE CALIPER	$11.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR057825	SHIELD - BRAKE DISC SPLASH	$63.80	To Order
	LR057826	SHIELD - BRAKE DISC SPLASH	$63.80	To Order
	LR066998	SHIELD - SPLASH	$63.89	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR027312	CAP - BLEED SCREW	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR061375	KIT - RETAINING PIN	$26.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR061376	KIT - BUSH	$29.16	To Order
	LR021651	KIT - BUSH	$26.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061365	WIRE - BRAKE PAD WEAR WARNING	$36.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083648	CAP - PROTECTIVE	$44.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR064690	BRACKET - WIRING	$8.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079314	BRACKET - WIRING CONNECTOR	$36.73	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR002080	BOLT IN STOCK	LR002080 BOLT M10 X 20MM, Torx / From: GH000001 IN STOCK	$3.19	2
HB2	LR058339	BOLT IN STOCK	LR058339 BOLT M12 X 42MM / From: GH000001 IN STOCK	$4.47	4
HS1	RYP500920	SCREW IN STOCK	RYP500920 SCREW M6 X 14MM, Torx / From: GH000001 IN STOCK	$0.74	6
HS2	RYG500190	SCREW IN STOCK	RYG500190 SCREW Hexagonal Head, M6 X 16MM / From: GH000001 IN STOCK	$0.73	2
2B120	LR061370	CALIPER - BRAKE	LR061370 CALIPER - BRAKE LH, For 17" Brakes / From: GH000001	$279.50	1
2B120	LR061369	CALIPER - BRAKE	LR061369 CALIPER - BRAKE RH, For 17" Brakes / From: GH000001	$268.62	1
2B292	LR061366	BRACKET - BRAKE CALIPER	LR061366 BRACKET - BRAKE CALIPER RH/LH, To Caliper / From: GH000001	$88.15	2
2B486	LR061374	SPRING - BRAKE CALIPER IN STOCK	LR061374 SPRING - BRAKE CALIPER From: GH000001 IN STOCK	$11.68	2
2K004	LR057825	SHIELD - BRAKE DISC SPLASH	LR057825 SHIELD - BRAKE DISC SPLASH 2.0L 16V TIVCT T/C 240PS Petrol, 9 Speed Auto AWD / RH / From: GH000001 / To: KH350904	$63.80	1
2K004	LR057826	SHIELD - BRAKE DISC SPLASH	LR057826 SHIELD - BRAKE DISC SPLASH 2.0L 16V TIVCT T/C 240PS Petrol, 6 Speed Manual Trans M66 - AWD / LH / From: GH000001 / To: KH350904	$63.80	1
2K004	LR066998	SHIELD - SPLASH	LR066998 SHIELD - SPLASH 2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans-JLR M66 2WD / LH / From: GH000001	$63.89	1
2K004	LR066997	SHIELD - SPLASH	LR066997 SHIELD - SPLASH 2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans-JLR M66 2WD / RH / From: GH000001	$86.10	1
2K004	LR118813	SHIELD - BRAKE DISC SPLASH	LR118813 SHIELD - BRAKE DISC SPLASH 2.0L 16V TIVCT T/C Gen2 Petrol, 6 Speed Manual Trans M66 - AWD / RH / From: KH350905	$63.80	1
2K004	LR118814	SHIELD - BRAKE DISC SPLASH	LR118814 SHIELD - BRAKE DISC SPLASH 2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans M66 - AWD / LH / From: KH350905	$63.80	1
2L126	LR027312	CAP - BLEED SCREW IN STOCK	LR027312 CAP - BLEED SCREW From: GH000001 IN STOCK	$1.32	2
2L527	LR061375	KIT - RETAINING PIN IN STOCK	LR061375 KIT - RETAINING PIN Pin - Slide / From: GH000001 IN STOCK	$26.32	4
2M032	LR061376	KIT - BUSH	LR061376 KIT - BUSH 9 Speed Auto AWD / From: GH000001	$29.16	2
2M032	LR021651	KIT - BUSH	LR021651 KIT - BUSH 6 Speed Manual Trans-JLR M66 2WD / From: GH000001	$26.29	2
14A382	LR061365	WIRE - BRAKE PAD WEAR WARNING	LR061365 WIRE - BRAKE PAD WEAR WARNING From: GH000001	$36.65	1
14C022A	LR064690	BRACKET - WIRING	LR064690 BRACKET - WIRING From: GH000001	$8.46	1
14C022B	LR079314	BRACKET - WIRING CONNECTOR	LR079314 BRACKET - WIRING CONNECTOR From: GH000001	$36.73	1
19D528	LR083648	CAP - PROTECTIVE	LR083648 CAP - PROTECTIVE One Piece / From: GH000001	$44.35	1
1125	LR059122	DISC - BRAKE - VENTED IN STOCK	LR059122 DISC - BRAKE - VENTED 325MM, For 17" Brakes, RH/LH / From: GH000001 IN STOCK	$167.44	2
2001	LR160435	BRAKE PADS - LESS SPRINGS	LR160435 BRAKE PADS - LESS SPRINGS For 17" Brakes, Less Clips / From: GH000001	$147.08	1
2208	LR000377	SCREW - BLEED IN STOCK	LR000377 SCREW - BLEED 6 Speed Manual Trans-JLR M66 2WD / With Cap / From: GH000001 IN STOCK	$6.10	1
2208	LR061377	SCREW - BLEED	LR061377 SCREW - BLEED 9 Speed Auto AWD / With Cap / From: GH000001	$13.48	1
