Name: Fuel Tank & Related Parts (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001)
Rating: 5.0 (1 reviews)

Fuel Tank & Related Parts (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Fuel Tank & Related Parts (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001)

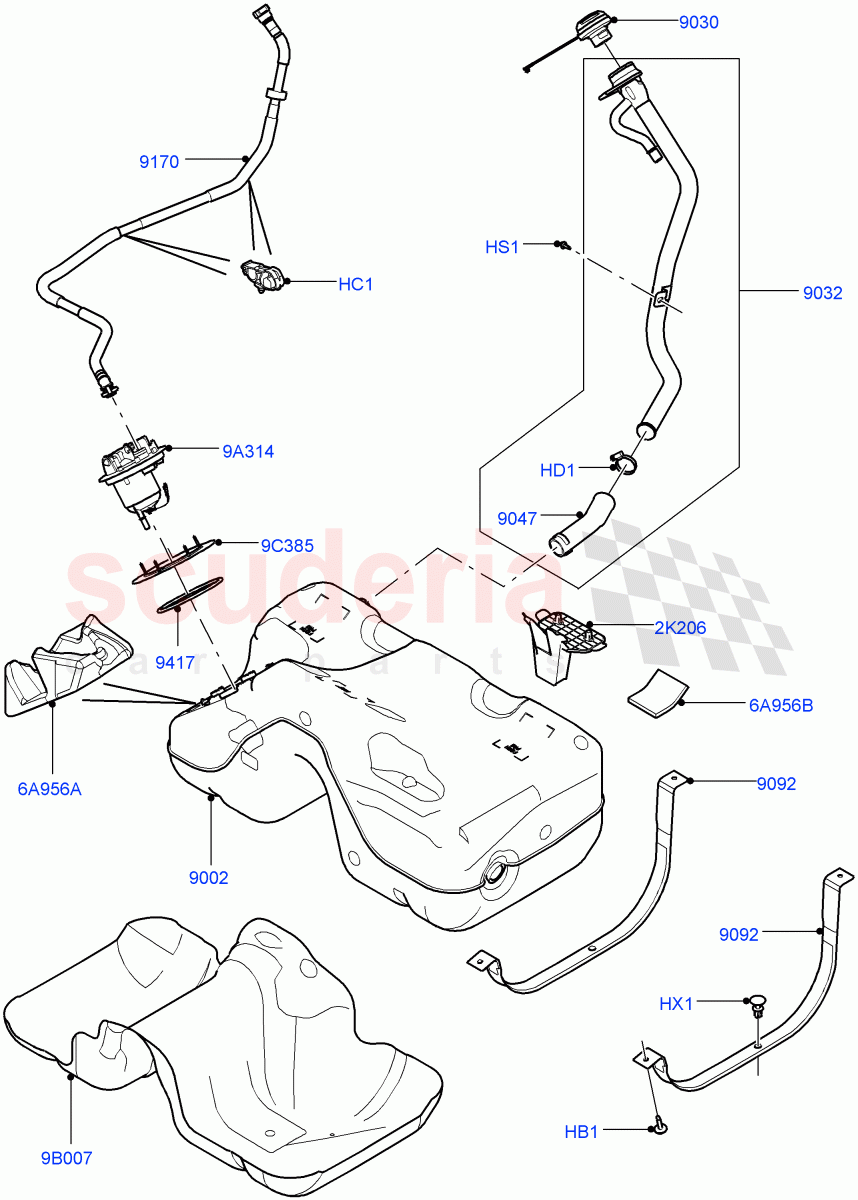

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG501020	BOLT	$1.98	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR006655	CLIP	$1.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001736	CLAMP - FUEL SUPPLY TUBE	$1.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023697	SCREW	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500170	RETAINER - RIVET	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072227	TANK - FUEL	$1,193.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR181511	CAP - FUEL TANK FILLER	$39.28	To Order
	LR073377	CAP - FUEL TANK FILLER	$45.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045112	PIPE - FUEL FILLER	$141.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028399	HOSE - FILLER PIPE	$34.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025817	STRAP - FUEL TANK	$35.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR052183	HOSE - VENT	$52.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	$10.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR049426	BRACKET - WIRE HARNESS MOUNTING	$11.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR026197	COVER - FUEL SENDER	$162.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041435	SHIELD - FUEL TANK	$415.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003778	RING - RETAINING	$38.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025816	FOAM PAD - ENERGY ABSORBING	$55.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025789	FOAM PAD - ENERGY ABSORBING	$23.34	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG501020	BOLT IN STOCK	RYG501020 BOLT M8 X 30MM / From: EG000001 IN STOCK	$1.98	4
HC1	LR006655	CLIP	LR006655 CLIP 14+12-20.5 X 7.5 X 1-3 / From: EG000001	$1.22	2
HD1	LR001736	CLAMP - FUEL SUPPLY TUBE	LR001736 CLAMP - FUEL SUPPLY TUBE 25 x 40MM / From: EG000001	$1.78	1
HS1	LR023697	SCREW	LR023697 SCREW M6 X 16MM	$0.57	2
HX1	RYQ500170	RETAINER - RIVET	RYQ500170 RETAINER - RIVET Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: JG175798	$1.01	2
2K206	LR049426	BRACKET - WIRE HARNESS MOUNTING	LR049426 BRACKET - WIRE HARNESS MOUNTING Support, Wiring Harness / From: EG000001	$11.76	1
6A956A	LR025816	FOAM PAD - ENERGY ABSORBING	LR025816 FOAM PAD - ENERGY ABSORBING RH, Side / From: EG000001	$55.74	1
6A956B	LR025789	FOAM PAD - ENERGY ABSORBING	LR025789 FOAM PAD - ENERGY ABSORBING Rear / From: EG000001	$23.34	3
9A314	LR026197	COVER - FUEL SENDER	LR026197 COVER - FUEL SENDER From: EG000001	$162.51	1
9B007	LR041435	SHIELD - FUEL TANK	LR041435 SHIELD - FUEL TANK Bottom, Fuel Tank / From: EG000001	$415.29	1
9C385	LR003778	RING - RETAINING	LR003778 RING - RETAINING From: EG000001	$38.24	1
9002	LR072227	TANK - FUEL	LR072227 TANK - FUEL From: EG000001	$1,193.66	1
9030	LR181511	CAP - FUEL TANK FILLER	LR181511 CAP - FUEL TANK FILLER From: EG000001 / To: GG134737	$39.28	1
9030	LR073377	CAP - FUEL TANK FILLER	LR073377 CAP - FUEL TANK FILLER From: GG134738	$45.38	1
9032	LR045112	PIPE - FUEL FILLER	LR045112 PIPE - FUEL FILLER From: EG000001	$141.35	1
9047	LR028399	HOSE - FILLER PIPE	LR028399 HOSE - FILLER PIPE From: EG000001	$34.70	1
9092	LR025817	STRAP - FUEL TANK IN STOCK	LR025817 STRAP - FUEL TANK From: EG000001 IN STOCK	$35.56	2
9170	LR052183	HOSE - VENT	LR052183 HOSE - VENT From: EG000001	$52.91	1
9417	LR117476	GASKET IN STOCK	LR117476 GASKET O-Ring / From: EG000001 IN STOCK	$10.55	1

Fuel Tank & Related Parts (2.0L 16V Tivct T/C 240Ps Petrol, Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Fuel Tank & Related Parts (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001)
