Fuel Tank & Related Parts (2.0L 16V Tivct T/C Gen2 Petrol, Halewood (Uk), 2.0L 16V Tivct T/C 240Ps...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Fuel Tank & Related Parts (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK), 2.0L 16V TIVCT T/C 240PS...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG501020 BOLT $1.98 IN STOCK
Photo Part No Description Price (each) Stock
LR006655 CLIP $1.22 To Order
Photo Part No Description Price (each) Stock
LR001736 CLAMP - FUEL SUPPLY TUBE $1.78 To Order
Photo Part No Description Price (each) Stock
LR023697 SCREW $0.57 To Order
Photo Part No Description Price (each) Stock
RYQ500170 RETAINER - RIVET $1.01 To Order
LR115125 RETAINER - RIVET $1.02 To Order
Photo Part No Description Price (each) Stock
LR026182 TANK - FUEL $996.59 To Order
LR032540 TANK - FUEL $1,192.03 To Order
LR072227 TANK - FUEL $1,192.03 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR181511 CAP - FUEL TANK FILLER $39.22 To Order
LR049865 CAP - FUEL TANK FILLER $28.75 To Order
LR049865 CAP - FUEL TANK FILLER $28.75 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR027081 PIPE - FUEL FILLER $145.30 To Order
LR029136 PIPE - FUEL FILLER $140.40 To Order
LR036341 PIPE - FUEL FILLER $96.79 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR028399 HOSE - FILLER PIPE $34.65 To Order
LR027093 HOSE - FILLER PIPE $28.18 To Order
Photo Part No Description Price (each) Stock
LR025817 STRAP - FUEL TANK $35.51 IN STOCK
Photo Part No Description Price (each) Stock
LR027873 HOSE - VENT $52.84 To Order
LR052183 HOSE - VENT $52.84 To Order
Photo Part No Description Price (each) Stock
LR117476 GASKET $10.53 IN STOCK
Photo Part No Description Price (each) Stock
LR049426 BRACKET - WIRE HARNESS MOUNTING $11.74 To Order
Photo Part No Description Price (each) Stock
LR026195 COVER - FUEL SENDER $155.87 To Order
LR026197 COVER - FUEL SENDER $162.28 To Order
Photo Part No Description Price (each) Stock
LR041435 SHIELD - FUEL TANK $414.72 To Order
LR041435 SHIELD - FUEL TANK $414.72 To Order
Photo Part No Description Price (each) Stock
LR003778 RING - RETAINING $38.19 To Order
Photo Part No Description Price (each) Stock
LR025816 FOAM PAD - ENERGY ABSORBING $55.66 To Order
Photo Part No Description Price (each) Stock
LR025789 FOAM PAD - ENERGY ABSORBING $23.31 To Order
View All

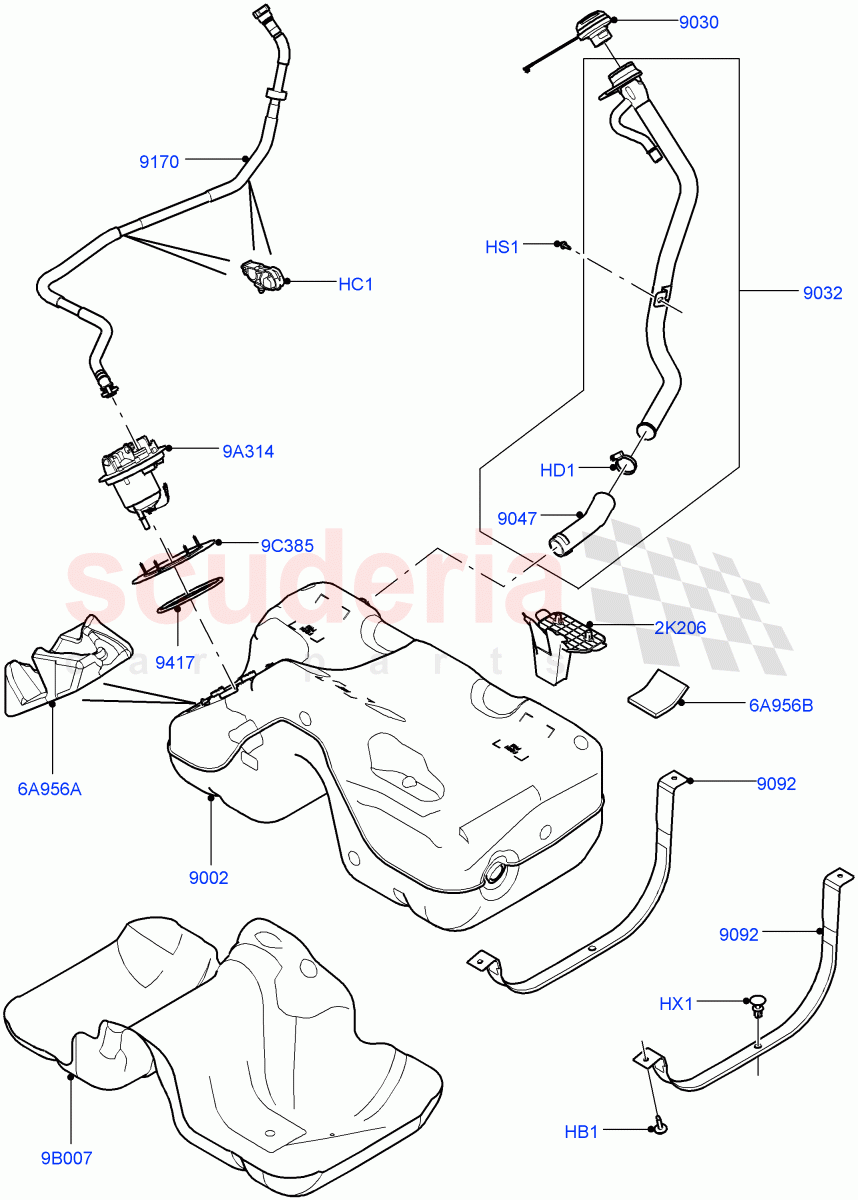

Fuel Tank & Related Parts (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK), 2.0L 16V TIVCT T/C 240PS Petrol) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG501020
BOLT
M8 X 30MM
IN STOCK 		$1.98 4
HC1 LR006655
CLIP
14+12-20.5 X 7.5 X 1-3 		$1.22 2
HD1 LR001736
CLAMP - FUEL SUPPLY TUBE
25 x 40MM 		$1.78 1
HS1 LR023697
SCREW
M6 X 16MM 		$0.57 2
HX1 RYQ500170
RETAINER - RIVET
Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / To: JH309714 		$1.01 2
HX1 LR115125
RETAINER - RIVET
Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: JH309715 		$1.02 2
2K206 LR049426
BRACKET - WIRE HARNESS MOUNTING
Support, Wiring Harness 		$11.74 1
6A956A LR025816
FOAM PAD - ENERGY ABSORBING
RH, Side 		$55.66 1
6A956B LR025789
FOAM PAD - ENERGY ABSORBING
Rear 		$23.31 3
9A314 LR026195
COVER - FUEL SENDER
(+)"CDN/MEX/USA" 		$155.87 1
9A314 LR026197
COVER - FUEL SENDER
(-)"CDN/MEX/USA" 		$162.28 1
9B007 LR041435
SHIELD - FUEL TANK
Bottom, Fuel Tank / To: DH772934 		$414.72 1
9B007 LR041435
SHIELD - FUEL TANK
Bottom, Fuel Tank / From: DH772935 		$414.72 1
9C385 LR003778
RING - RETAINING 		$38.19 1
9002 LR026182
TANK - FUEL
(+)"CDN/MEX/USA" / To: FH043694 		$996.59 1
9002 LR032540
TANK - FUEL
(-)"CDN/MEX/USA" / To: FH045307 		$1,192.03 1
9002 LR072227
TANK - FUEL
(-)"CDN/MEX/USA" / From: FH045308 		$1,192.03 1
9002 LR095424
TANK - FUEL
(+)"CDN/MEX/USA" / From: FH043695 		$1,192.03 1
9030 LR181511
CAP - FUEL TANK FILLER
2.0L 16V TIVCT T/C 240PS Petrol / To: FH999999 		$39.22 1
9030 LR049865
CAP - FUEL TANK FILLER
2.0L 16V TIVCT T/C Gen2 Petrol / From: EH000001 		$28.75 1
9030 LR049865
CAP - FUEL TANK FILLER
2.0L 16V TIVCT T/C 240PS Petrol, Fuel Tank Filler Neck - DMTL / From: GH000001 		$28.75 1
9030 LR181511
CAP - FUEL TANK FILLER
2.0L 16V TIVCT T/C 240PS Petrol, Fuel Tank Filler Neck - Unleaded / From: GH000001 / To: KH333701 		$39.22 1
9030 LR053665
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Unleaded / From: KH333702 		$34.78 1
9032 LR027081
PIPE - FUEL FILLER
(+)"CDN/MEX/USA" / To: DH783390 		$145.30 1
9032 LR029136
PIPE - FUEL FILLER
(-)"CDN/MEX/USA" / To: CH660837 		$140.40 1
9032 LR036341
PIPE - FUEL FILLER
(-)"CDN/MEX/USA" / From: CH660838 / To: DH783390 		$96.79 1
9032 LR045112
PIPE - FUEL FILLER
(-)"CDN/MEX/USA" / From: DH783391 		$141.16 1
9032 LR045110
PIPE - FUEL FILLER
(+)"CDN/MEX/USA" / From: DH783391 / To: DH999999 		$144.28 1
9032 LR049866
PIPE - FUEL FILLER
(+)"CDN/MEX/USA" / From: EH000001 / To: GH080636 		$187.99 1
9032 LR079221
PIPE - FUEL FILLER
(+)"CDN/MEX/USA" / From: GH080637 		$252.43 1
9047 LR028399
HOSE - FILLER PIPE
(-)"CDN/MEX/USA" 		$34.65 1
9047 LR027093
HOSE - FILLER PIPE
(+)"CDN/MEX/USA" 		$28.18 1
9092 LR025817
STRAP - FUEL TANK
IN STOCK 		$35.51 2
9170 LR027873
HOSE - VENT
(-)"CDN/MEX/USA" / To: DH804638 		$52.84 1
9170 LR052183
HOSE - VENT
(-)"CDN/MEX/USA" / From: DH804639 		$52.84 1
9417 LR117476
GASKET
O-Ring
IN STOCK 		$10.53 1
