Rear Seat Base (Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Rear Seat Base (Itatiaia (Brazil)) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
KYG500410 SCREW $1.65 To Order
Photo Part No Description Price (each) Stock
BYP500060 SCREW $0.80 To Order
Photo Part No Description Price (each) Stock
LR075088 FRAME AND SPRING - RR SEAT CUSHION $251.77 To Order
Photo Part No Description Price (each) Stock
LR028412 BUSHING - REAR SEAT MOUNTING $6.33 To Order
Photo Part No Description Price (each) Stock
LR026762 RETAINER - SEAT $9.46 To Order
Photo Part No Description Price (each) Stock
LR027195 BRACKET - SEAT MOUNTING $121.31 To Order
Photo Part No Description Price (each) Stock
LR027193 BRACKET - SEAT MOUNTING $118.16 To Order
Photo Part No Description Price (each) Stock
LR027194 BRACKET - SEAT MOUNTING $30.09 To Order
View All

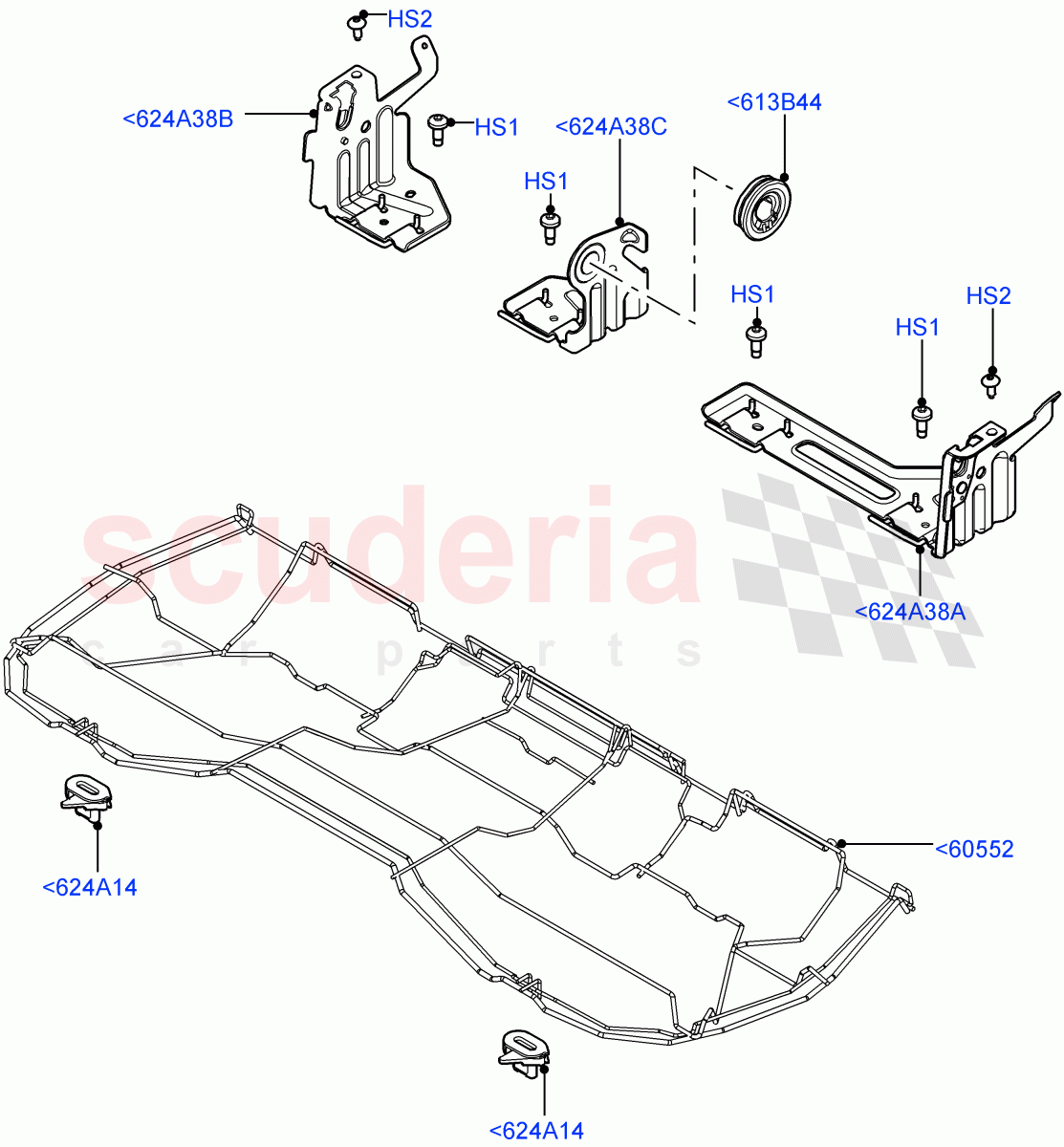

Rear Seat Base (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<613B44 LR028412
BUSHING - REAR SEAT MOUNTING
From: GT000001 		$6.33 1
<624A14 LR026762
RETAINER - SEAT
Floor, Front / From: GT000001 		$9.46 2
<624A38A LR027195
BRACKET - SEAT MOUNTING
With 60/40 Split - Folding Rr Seat / LH, 2nd Row Seat Mounting / From: GT000001 		$121.31 1
<624A38B LR027193
BRACKET - SEAT MOUNTING
With 60/40 Split - Folding Rr Seat / 2nd Row Seat Mounting, Centre / From: GT000001 		$118.16 1
<624A38C LR027194
BRACKET - SEAT MOUNTING
With 60/40 Split - Folding Rr Seat / 2nd Row Seat Mounting, Centre / From: GT000001 		$30.09 1
<60552 LR075088
FRAME AND SPRING - RR SEAT CUSHION
With 60/40 Split - Folding Rr Seat / From: GT000001 		$251.77 1
HS1 KYG500410
SCREW
Floor, M10 X 25MM, Rear, Self Tapping / From: GT000001 		$1.65 8
HS2 BYP500060
SCREW
M8 X 16MM, Rear / From: GT000001 		$0.80 2
