Rear Seat Back (Changsu (China), With 60/40 Split - Folding Rr Seat, 2Nd Row Seat 60/40 (3 P) -...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Rear Seat Back (Changsu (China), With 60/40 Split - Folding Rr Seat, 2nd Row Seat 60/40 (3 P) -...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR050665 SCREW - SPECIAL $1.42 To Order
Photo Part No Description Price (each) Stock
LR006018 BOLT $0.47 To Order
Photo Part No Description Price (each) Stock
LR054315 SCREW $11.82 To Order
Photo Part No Description Price (each) Stock
LR027002 LATCH - REAR SEAT BACK $61.19 To Order
LR027006 LATCH - REAR SEAT BACK $58.92 To Order
LR022373 LATCH - REAR SEAT BACK $98.98 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR000370 STRIKER - LATCH $28.31 To Order
LR000371 STRIKER $27.63 To Order
Photo Part No Description Price (each) Stock
LR065489 COVER - ARMREST $57.70 To Order
LR065490 COVER - ARMREST $61.19 To Order
LR065491 COVER - ARMREST $61.19 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR000727 INSERT - REAR SEAT ARMREST $97.76 To Order
Photo Part No Description Price (each) Stock
LR068937 BRACKET - ARMREST Enquire To Order
Photo Part No Description Price (each) Stock
LR029009 LID - STORAGE COMPARTMENT $122.50 To Order
LR003770 LID - STORAGE COMPARTMENT $112.32 To Order
LR009579 LID - STORAGE COMPARTMENT $76.69 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR057444 COVER - TETHER SEAT BACK $7.80 To Order
LR066217 COVER - TETHER SEAT BACK $22.79 To Order
LR066219 COVER - TETHER SEAT BACK $22.79 To Order
Photo Part No Description Price (each) Stock
LR004803 FASTENER - SEAT ARMREST $7.79 To Order
Photo Part No Description Price (each) Stock
LR002420 CARPET - REAR SEAT BACK $316.12 To Order
Photo Part No Description Price (each) Stock
LR002419 CARPET - REAR SEAT BACK $316.12 To Order
Photo Part No Description Price (each) Stock
LR068920 HINGE - REAR SEAT BACK Enquire To Order
Photo Part No Description Price (each) Stock
LR058047 FRAME - REAR SEAT BACK RETAINING $442.39 To Order
Photo Part No Description Price (each) Stock
LR058046 FRAME - REAR SEAT BACK RETAINING $424.06 To Order
Photo Part No Description Price (each) Stock
LR000728 BUSHING - ARMREST $2.30 To Order
Photo Part No Description Price (each) Stock
LR054316 BUSHING - ARMREST $42.20 To Order
Photo Part No Description Price (each) Stock
LR000731 CLIP $0.41 To Order
Photo Part No Description Price (each) Stock
LR000732 CLIP - PAD $7.57 To Order
Photo Part No Description Price (each) Stock
LR068938 BEZEL - SEAT BACK LOCKING MECHANISM Enquire To Order
LR068939 BEZEL - SEAT BACK LOCKING MECHANISM Enquire To Order
LR068922 BEZEL - SEAT BACK LOCKING MECHANISM Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR026867 BEZEL - SEAT BACK LOCKING MECHANISM $9.79 To Order
LR026868 BEZEL - SEAT BACK LOCKING MECHANISM $8.84 To Order
LR026870 BEZEL - SEAT BACK LOCKING MECHANISM $9.79 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR068934 BEZEL - HEADREST Enquire To Order
LR068933 BEZEL - HEADREST Enquire To Order
LR068932 BEZEL - HEADREST Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR000730 BEZEL $36.72 To Order
View All

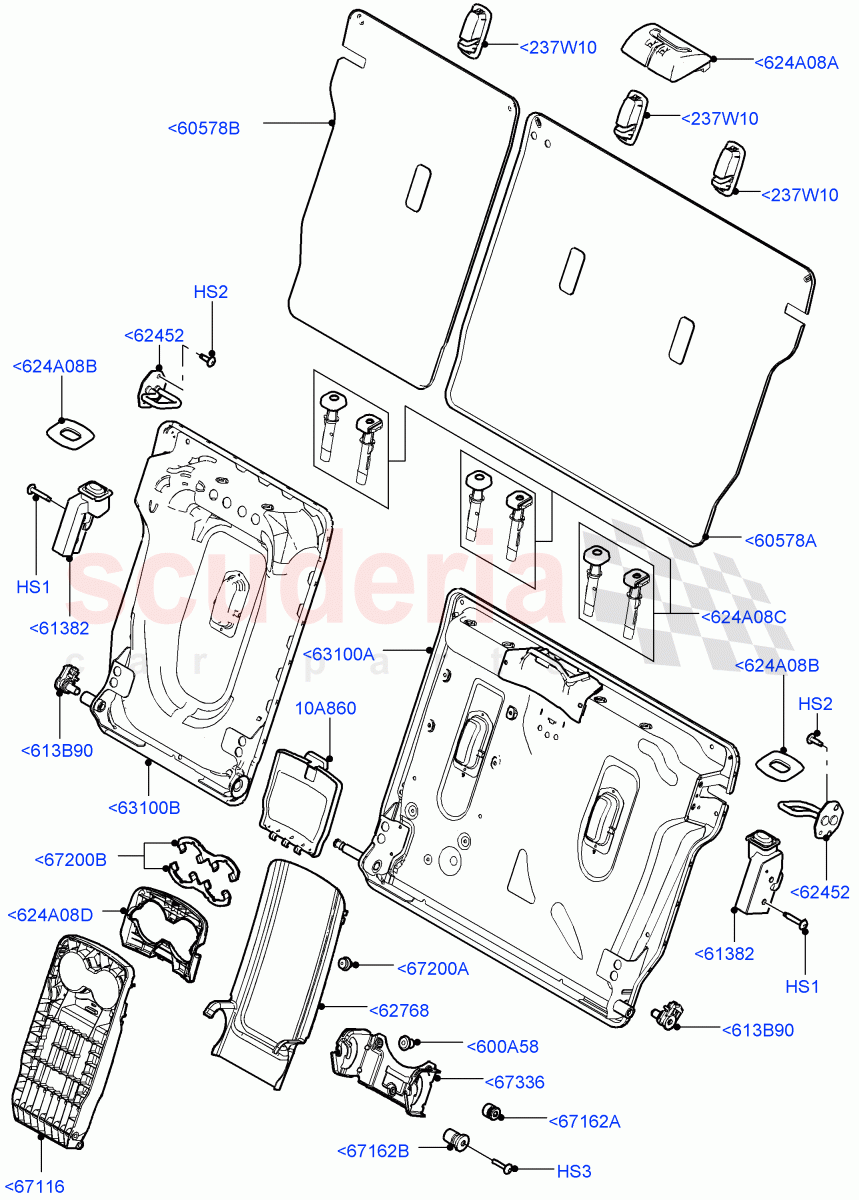

Rear Seat Back (Changsu (China), With 60/40 Split - Folding Rr Seat, 2nd Row Seat 60/40 (3 P) - Folding) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<237W10 LR057444
COVER - TETHER SEAT BACK
From: EG000001 / To: GG134737 		$7.80 3
<237W10 LR066217
COVER - TETHER SEAT BACK
With Head Impact Crash Criteria / With Painted Logo / From: GG134738 		$22.79 1
<237W10 LR066219
COVER - TETHER SEAT BACK
Less Head Impact Crash Criteria / Less Logo / From: GG134738 		$22.79 1
<600A58 LR004803
FASTENER - SEAT ARMREST
From: EG000001 		$7.79 3
<613B90 LR068920
HINGE - REAR SEAT BACK
From: EG000001 		- 2 Enquire
<624A08A LR068938
BEZEL - SEAT BACK LOCKING MECHANISM
Espresso, I/P Facia Contrast-Espresso/Ivory / Belt Guide, Centre / From: EG000001 		- 1 Enquire
<624A08A LR068939
BEZEL - SEAT BACK LOCKING MECHANISM
Lunar/Savannah / Belt Guide, Centre / From: EG000001 		- 1 Enquire
<624A08A LR068922
BEZEL - SEAT BACK LOCKING MECHANISM
Ebony Black/Ebony Black Interior / Belt Guide, Centre / From: EG000001 		- 1 Enquire
<624A08A LR068940
BEZEL - SEAT BACK LOCKING MECHANISM
Almond / Belt Guide, Centre / From: EG000001 		- 1 Enquire
<624A08B LR026867
BEZEL - SEAT BACK LOCKING MECHANISM
Espresso, I/P Facia Contrast-Espresso/Ivory / Latch, Outer / From: EG000001 		$9.79 2
<624A08B LR026868
BEZEL - SEAT BACK LOCKING MECHANISM
Lunar/Savannah / Latch, Outer / From: EG000001 		$8.84 2
<624A08B LR026870
BEZEL - SEAT BACK LOCKING MECHANISM
Ivory / Latch, Outer / From: EG000001 		$9.79 2
<624A08B LR006489
BEZEL - SEAT BACK LOCKING MECHANISM
Ebony/Pimento Red, I/P Facia Contrast - Ebony Black / Latch, Outer / From: EG000001 		$10.46 2
<624A08B LR009814
BEZEL - SEAT BACK LOCKING MECHANISM
Almond / Latch, Outer / From: EG000001 		$16.65 2
<624A08C LR068934
BEZEL - HEADREST
Almond / Locking Type / From: EG000001 		- 3 Enquire
<624A08C LR068933
BEZEL - HEADREST
Ebony Black/Ebony Black Interior / Locking Type / From: EG000001 		- 3 Enquire
<624A08C LR068932
BEZEL - HEADREST
Ivory/Lunar / Locking Type / From: EG000001 		- 3 Enquire
<624A08C LR068930
BEZEL - HEADREST
Tan / Locking Type / From: EG000001 		- 3 Enquire
<624A08C LR068923
BEZEL - HEADREST
Tan / Non Locking / From: EG000001 		- 3 Enquire
<624A08C LR068926
BEZEL - HEADREST
Ivory/Lunar / Non Locking / From: EG000001 		- 3 Enquire
<624A08C LR068927
BEZEL - HEADREST
Ebony Black/Ebony Black Interior / Non Locking / From: EG000001 		- 3 Enquire
<624A08C LR068929
BEZEL - HEADREST
Almond / Non Locking / From: EG000001 		- 3 Enquire
<624A08D LR000730
BEZEL
Windsor Leather Perforated / From: EG000001 		$36.72 1
<60578A LR002420
CARPET - REAR SEAT BACK
Large / From: EG000001 		$316.12 1
<60578B LR002419
CARPET - REAR SEAT BACK
Small / From: EG000001 		$316.12 1
<61382 LR027002
LATCH - REAR SEAT BACK
Lunar/Savannah / RH / From: EG000001 		$61.19 1
<61382 LR027006
LATCH - REAR SEAT BACK
Lunar/Savannah / LH / From: EG000001 		$58.92 1
<61382 LR022373
LATCH - REAR SEAT BACK
Almond / LH / From: EG000001 		$98.98 1
<61382 LR022375
LATCH - REAR SEAT BACK
Almond / RH / From: EG000001 		$100.38 1
<61382 LR020537
LATCH - REAR SEAT BACK
Ebony Black/Ebony Black Interior / RH / From: EG000001 		$149.95 1
<61382 LR020538
LATCH - REAR SEAT BACK
Ebony Black/Ebony Black Interior / LH / From: EG000001 		$134.52 1
<61382 LR027001
LATCH - REAR SEAT BACK
I/P Facia Contrast-Espresso/Ivory, Tan / RH / From: EG000001 		$61.91 1
<61382 LR027004
LATCH - REAR SEAT BACK
Ivory / RH / From: EG000001 		$61.91 1
<61382 LR027005
LATCH - REAR SEAT BACK
I/P Facia Contrast-Espresso/Ivory, Tan / LH / From: EG000001 		$65.11 1
<61382 LR027008
LATCH - REAR SEAT BACK
Ivory / LH / From: EG000001 		$65.11 1
<62452 LR000370
STRIKER - LATCH
RH / From: EG000001 		$28.31 1
<62452 LR000371
STRIKER
LH / From: EG000001 		$27.63 1
<62768 LR065489
COVER - ARMREST
Espresso, I/P Facia Contrast-Espresso/Ivory / From: EG000001 		$57.70 1
<62768 LR065490
COVER - ARMREST
Ivory/Lunar / From: EG000001 		$61.19 1
<62768 LR065491
COVER - ARMREST
Ivory / From: EG000001 		$61.19 1
<62768 LR063175
COVER - ARMREST
Ebony Black/Ebony Black Interior, I/P Facia Contrast - Ebony Black / From: EG000001 		$61.19 1
<62768 LR063176
COVER - ARMREST
Almond / From: EG000001 		$61.19 1
<63100A LR058047
FRAME - REAR SEAT BACK RETAINING
Large / From: EG000001 		$442.39 1
<63100B LR058046
FRAME - REAR SEAT BACK RETAINING
Small / From: EG000001 		$424.06 1
<67116 LR000727
INSERT - REAR SEAT ARMREST
From: EG000001 		$97.76 1
<67162A LR000728
BUSHING - ARMREST
From: EG000001 		$2.30 1
<67162B LR054316
BUSHING - ARMREST
From: EG000001 		$42.20 1
<67200A LR000731
CLIP
From: EG000001 		$0.41 4
<67200B LR000732
CLIP - PAD
From: EG000001 		$7.57 2
<67336 LR068937
BRACKET - ARMREST
From: EG000001 		- 1 Enquire
HS1 LR050665
SCREW - SPECIAL
M8 x 42 / From: EG000001 		$1.42 4
HS2 LR006018
BOLT
M8 X 21MM / From: EG000001 		$0.47 4
HS3 LR054315
SCREW
M6X16, Torx / From: EG000001 		$11.82 1
10A860 LR029009
LID - STORAGE COMPARTMENT
Lunar/Savannah, Taurus Leather Perforated / From: EG000001 		$122.50 1
10A860 LR003770
LID - STORAGE COMPARTMENT
Ebony/Pimento Red, Leather/Suede / From: EG000001 		$112.32 1
10A860 LR009579
LID - STORAGE COMPARTMENT
Almond, Leather/Suede / From: EG000001 		$76.69 1
10A860 LR022273
LID - STORAGE COMPARTMENT
Ivory, Windsor Leather / From: EG000001 		$234.79 1
10A860 LR022274
LID - STORAGE COMPARTMENT
Ebony Black/Ebony Black Interior, Windsor Sport Leather Perforated / From: EG000001 		$260.29 1
10A860 LR022275
LID - STORAGE COMPARTMENT
Tan, Windsor Leather / From: EG000001 		$260.29 1
10A860 LR068344
LID - STORAGE COMPARTMENT
Latte, Windsor Leather / From: EG000001 		$260.29 1
10A860 LR069688
LID - STORAGE COMPARTMENT
Espresso, Windsor Leather / From: EG000001 		$260.29 1
10A860 LR069689
LID - STORAGE COMPARTMENT
Lunar/Ice, Windsor Sport Leather Perforated / From: GG134738 		$260.29 1
