Name: Turbocharger (Lubrication And Cooling) (2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 Mid AJ200 Petrol E100) ((V) FROMJH000001)
Rating: 5.0 (1 reviews)

Turbocharger (Lubrication And Cooling) (2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 Mid AJ200 Petrol E100) ((V) FROMJH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Turbocharger (Lubrication And Cooling) (2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 Mid DOHC AJ200...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR136779	RING - SEALING	$4.84	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073688	O-RING	$3.99	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR123818	O-RING	$3.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR122683	SCREW	$1.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073686	SCREW	$2.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094426	HOSE - WATER	$34.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073671	WASHER - COPPER	$4.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR094437	HOSE - OIL RETURN	$19.87	To Order
	LR098033	PIPE - OIL DRAIN	$20.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094416	PIPE - OIL FEED	$59.25	To Order
	LR112673	PIPE - OIL FEED	$73.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR181892	SEPARATOR - COOLANT DEGAS	$96.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094406	HOSE - INTERCOOLER	$47.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094410	HOSE - COOLING SYSTEM	$47.90	To Order

View All

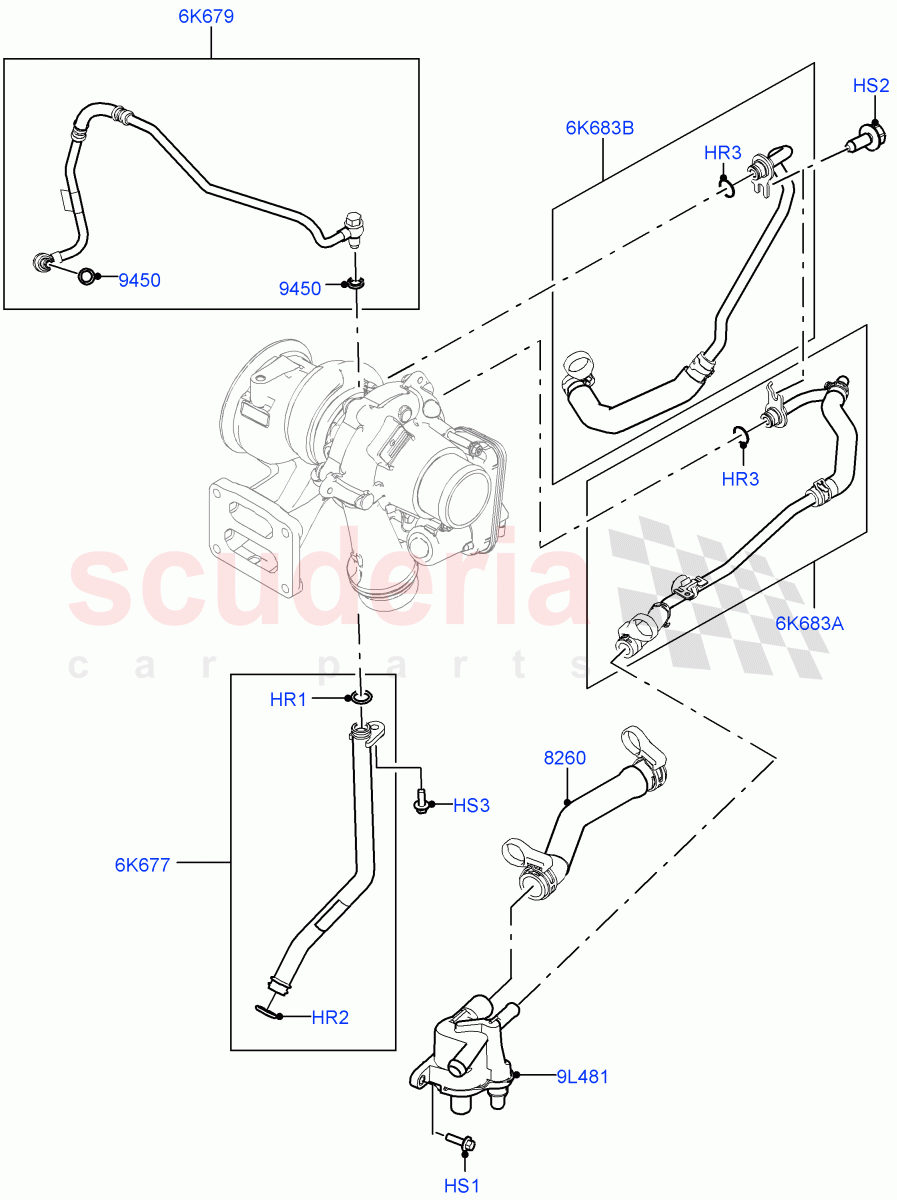

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR136779	RING - SEALING IN STOCK	LR136779 RING - SEALING 13.8 x 2.5, Drain, Upper / From: JH000001 IN STOCK	$4.84	1
HR2	LR073688	O-RING IN STOCK	LR073688 O-RING 15 X 3MM, Drain, Lower / From: JH000001 IN STOCK	$3.99	1
HR3	LR123818	O-RING	LR123818 O-RING Cooling For Turbocharger,	$3.16	2
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: JH000001 IN STOCK	$1.60	2
HS2	LR122683	SCREW IN STOCK	LR122683 SCREW M6 X 16MM / From: JH000001 IN STOCK	$1.89	1
HS3	LR073686	SCREW	LR073686 SCREW M6 X 16MM / From: JH000001	$2.49	1
6K677	LR094437	HOSE - OIL RETURN	LR094437 HOSE - OIL RETURN 2.0L I4 Mid DOHC AJ200 Petrol / From: JH000001	$19.87	1
6K677	LR098033	PIPE - OIL DRAIN	LR098033 PIPE - OIL DRAIN 2.0L I4 High DOHC AJ200 Petrol / From: JH000001	$20.74	1
6K679	LR094416	PIPE - OIL FEED	LR094416 PIPE - OIL FEED From: JH000001 / To: KH354089	$59.25	1
6K679	LR112673	PIPE - OIL FEED	LR112673 PIPE - OIL FEED From: KH354090	$73.64	1
6K683A	LR094406	HOSE - INTERCOOLER	LR094406 HOSE - INTERCOOLER Cooling For Turbocharger, Feed / From: JH000001	$47.90	1
6K683B	LR094410	HOSE - COOLING SYSTEM	LR094410 HOSE - COOLING SYSTEM Cooling For Turbocharger, Return / From: JH000001	$47.90	1
9L481	LR181892	SEPARATOR - COOLANT DEGAS	LR181892 SEPARATOR - COOLANT DEGAS From: JH000001	$96.17	1
8260	LR094426	HOSE - WATER	LR094426 HOSE - WATER Tube Water By-Pass / From: JH000001	$34.50	1
9450	LR073671	WASHER - COPPER IN STOCK	LR073671 WASHER - COPPER Banjo Washer, Requires 2 Pcs Per Banjo-Bolt, Turbocharger Oil Feed / From: JH000001 IN STOCK	$4.69	4
