Find Your Part

View All

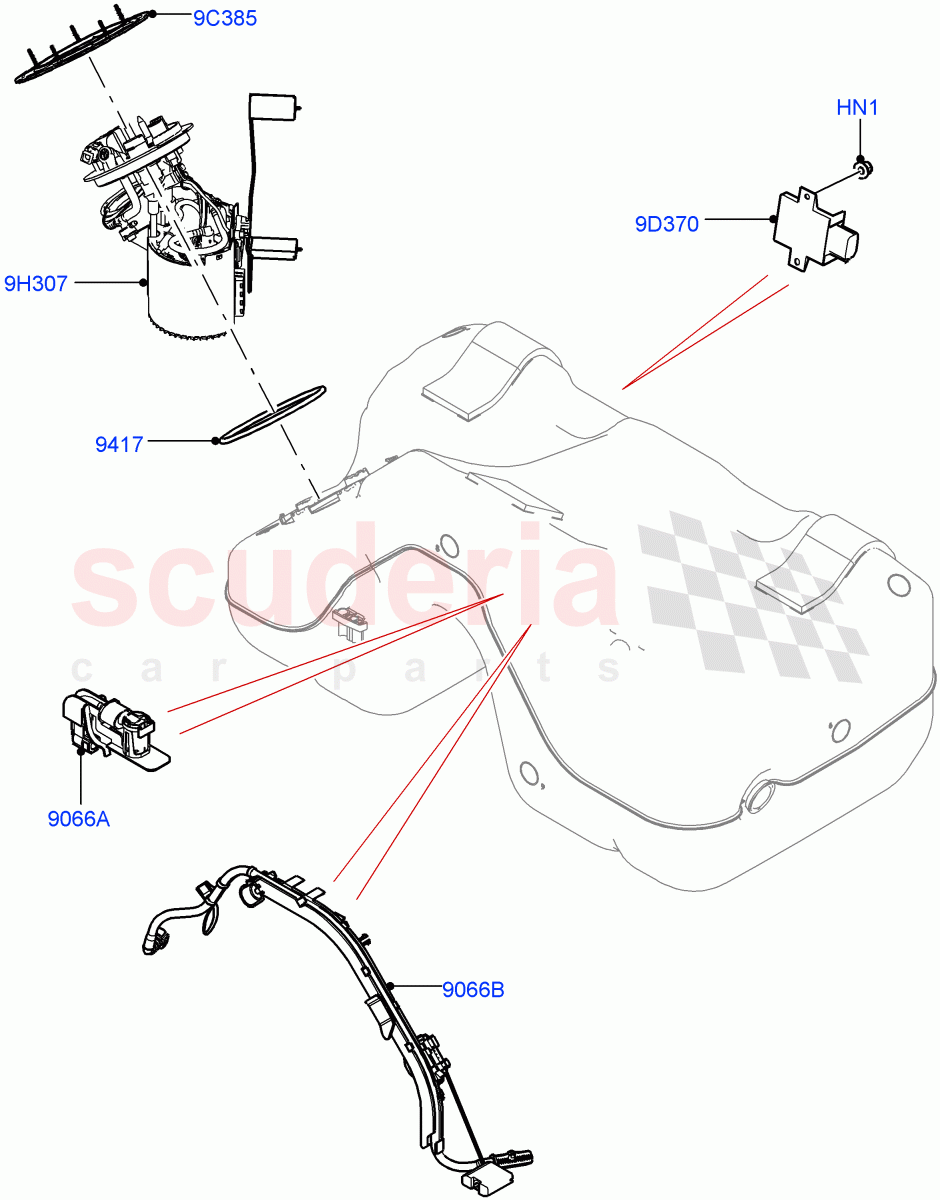

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	$10.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR101807	SENSOR - FUEL LEVEL	$321.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094503	SENSOR - FUEL LEVEL	$209.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003778	RING - RETAINING	$38.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR097220	CONTROL - FUEL PUMP DRIVE	$208.94	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. Hexagonal Head, M6 / From: JH000001 IN STOCK	$0.68	2
9C385	LR003778	RING - RETAINING	LR003778 RING - RETAINING From: JH000001	$38.27	1
9D370	LR097220	CONTROL - FUEL PUMP DRIVE	LR097220 CONTROL - FUEL PUMP DRIVE From: JH000001	$208.94	1
9H307	LR094502	PUMP - FUEL	LR094502 PUMP - FUEL Petrol Tank With Leak Detection / From: JH000001	$554.52	1
9H307	LR094504	PUMP - FUEL	LR094504 PUMP - FUEL Pet Tank W/O Leak Det - Std Filter / From: JH000001	$619.92	1
9066A	LR101807	SENSOR - FUEL LEVEL	LR101807 SENSOR - FUEL LEVEL From: JH000001	$321.20	1
9066B	LR094503	SENSOR - FUEL LEVEL	LR094503 SENSOR - FUEL LEVEL From: JH000001	$209.34	1
9417	LR117476	GASKET IN STOCK	LR117476 GASKET O-Ring / From: JH000001 IN STOCK	$10.55	1
