Name: Inlet Manifold (2.0L I4 Mid AJ200 Petrol E100, Itatiaia (Brazil), 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMJT000001)
Rating: 4.6 (1 reviews)

Inlet Manifold (2.0L I4 Mid AJ200 Petrol E100, Itatiaia (Brazil), 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMJT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Inlet Manifold (2.0L I4 Mid AJ200 Petrol E100, Itatiaia (Brazil), 2.0L I4 Mid DOHC AJ200 Petrol)...

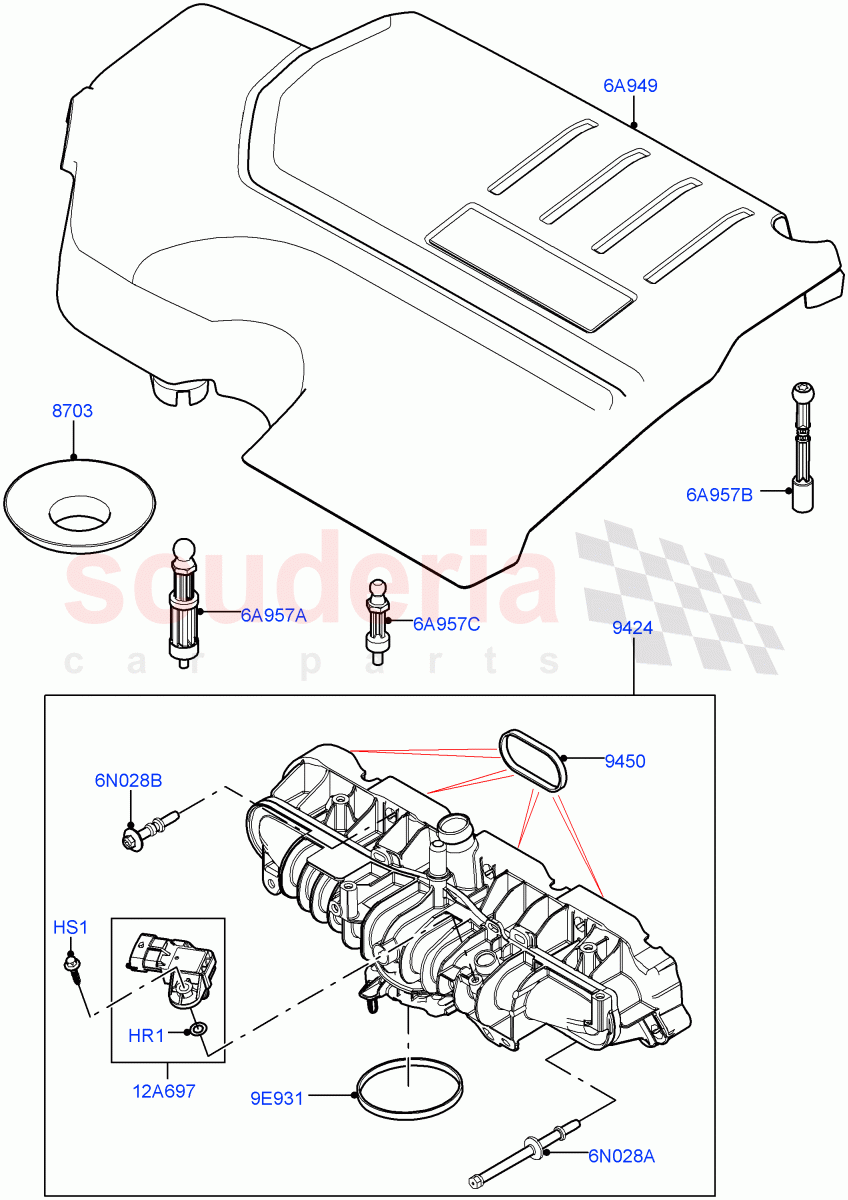

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR095783	O-RING	$4.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500810	SCREW	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074074	OIL SPILL GAITER	$13.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106371	INLET MANIFOLD WITH INTERCOOLER	$768.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091766	GASKET - INTAKE MANIFOLD	$12.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR094077	COVER - ENGINE TOP	$291.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074073	GASKET - THROTTLE	$15.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091865	SENSOR - AIR TEMPERATURE & PRESSURE	$139.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010871	STUD - BALL	$7.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022884	STUD - BALL	$6.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025916	STUD - ENGINE COVER	$6.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091773	BOLT - SPECIAL	$6.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074085	BOLT - SPECIAL	$5.04	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR095783	O-RING IN STOCK	LR095783 O-RING 7.5MM, MAP Sensor / From: GT000001 IN STOCK	$4.67	1
HS1	RYP500810	SCREW	RYP500810 SCREW Hexagonal Head, M5 x 20MM, Sensor / From: JT000001	$0.63	1
6A949	LR094077	COVER - ENGINE TOP	LR094077 COVER - ENGINE TOP Engine / From: JT000001	$291.27	1
6A957A	LR010871	STUD - BALL	LR010871 STUD - BALL Ball Stud, Engine Cover / From: JT000001	$7.08	1
6A957B	LR022884	STUD - BALL	LR022884 STUD - BALL Engine Cover / From: JT000001	$6.73	1
6A957C	LR025916	STUD - ENGINE COVER	LR025916 STUD - ENGINE COVER Engine Cover, Short / From: JT000001	$6.96	1
6N028A	LR091773	BOLT - SPECIAL	LR091773 BOLT - SPECIAL M6 x 97MM, Manifold To Cylinder Head, Special Bolt / From: JT000001	$6.73	1
6N028B	LR074085	BOLT - SPECIAL	LR074085 BOLT - SPECIAL M6 x 42MM, Manifold To Cylinder Head / From: JT000001	$5.04	6
9E931	LR074073	GASKET - THROTTLE	LR074073 GASKET - THROTTLE Throttle Body To Intake / From: JT000001	$15.98	1
12A697	LR091865	SENSOR - AIR TEMPERATURE & PRESSURE	LR091865 SENSOR - AIR TEMPERATURE & PRESSURE Pressure / From: JT000001	$139.84	1
8703	LR074074	OIL SPILL GAITER	LR074074 OIL SPILL GAITER Oil Spill / From: JT000001	$13.40	1
9424	LR106371	INLET MANIFOLD WITH INTERCOOLER	LR106371 INLET MANIFOLD WITH INTERCOOLER From: JT000001	$768.13	1
9450	LR091766	GASKET - INTAKE MANIFOLD IN STOCK	LR091766 GASKET - INTAKE MANIFOLD Inlet Manifold / From: JT000001 IN STOCK	$12.31	4

Inlet Manifold (2.0L I4 Mid Aj200 Petrol E100, Itatiaia (Brazil), 2.0L I4 Mid Dohc Aj200 Petrol)...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Inlet Manifold (2.0L I4 Mid AJ200 Petrol E100, Itatiaia (Brazil), 2.0L I4 Mid DOHC AJ200 Petrol)...
