Name: Cylinder Head (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L AJ200P Hi PHEV)
Rating: 5.0 (1 reviews)

Cylinder Head (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L AJ200P Hi PHEV) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Cylinder Head (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR123820	O-RING	$2.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073689	SCREW	$2.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073738	SCREW	$3.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR094453	STUD	$5.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091530	CYLINDER HEAD	$3,475.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091486	GASKET-CYLINDER HEAD	$86.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091487	BOLT - HEX.HEAD	$12.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091743	TENSIONER - TIMING BELT	$124.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073777	TAPPET - VALVE	$51.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR134473	VALVE - EXHAUST	$27.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124745	VALVE - INLET	$27.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091753	RETAINER - VALVE SPRING - UPPER	$17.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073774	COLLET - VALVE SPRING RETAINER	$3.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091754	ARM - VALVE ROCKER	$46.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091757	SEAL - VALVE STEM	$5.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094433	TUBE - WATER OUTLET	$66.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091751	SPRING - VALVE	$13.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091752	SPRING - VALVE	$12.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077674	VALVE - CHECK	$9.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073651	DOWEL - PIN	$3.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155114	SENSOR - CYLINDER HEAD TEMPERATURE	$63.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073685	TUBE - DRAIN	$24.82	To Order

View All

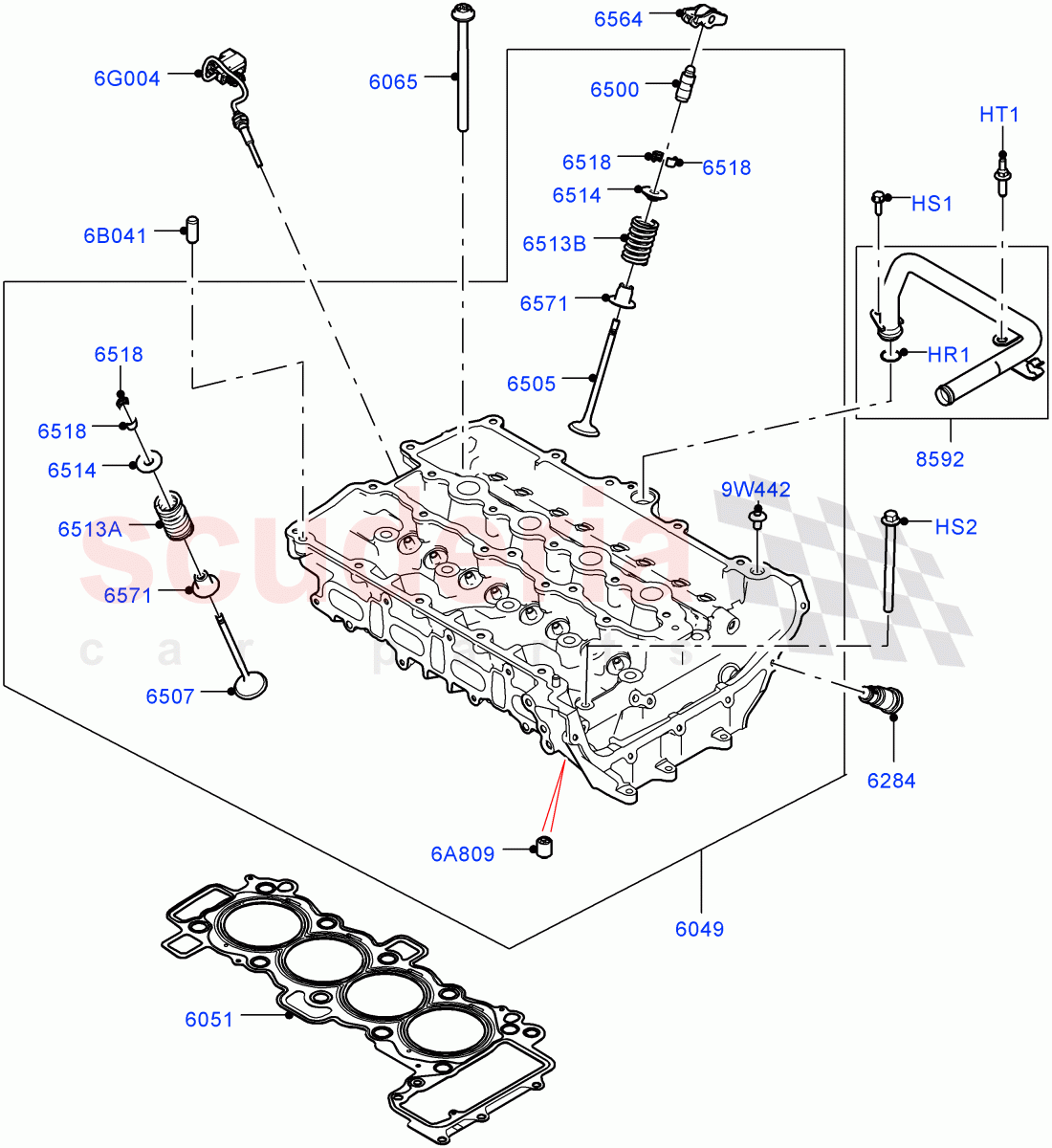

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR123820	O-RING	LR123820 O-RING Between Cylinder Head And Coolant Inlet Pipe, Elbow Connector / From: HG161788	$2.95	1
HS1	LR073689	SCREW	LR073689 SCREW Hexagonal Head, M6 X 20MM / From: HG161788	$2.36	1
HS2	LR073738	SCREW IN STOCK	LR073738 SCREW M8 x 100MM / From: HG161788 IN STOCK	$3.88	1
HT1	LR094453	STUD	LR094453 STUD M8 X 25MM + M6 X 15MM / From: HG161788	$5.29	1
6A809	LR077674	VALVE - CHECK	LR077674 VALVE - CHECK From: HG161788	$9.66	1
6B041	LR073651	DOWEL - PIN	LR073651 DOWEL - PIN 8 x 19MM / From: HG161788	$3.84	2
6G004	LR155114	SENSOR - CYLINDER HEAD TEMPERATURE	LR155114 SENSOR - CYLINDER HEAD TEMPERATURE Sensor - Cylinder Head Temperature / From: HG161788	$63.32	1
9W442	LR073685	TUBE - DRAIN	LR073685 TUBE - DRAIN Drain / From: HG161788	$24.82	1
6049	LR091530	CYLINDER HEAD	LR091530 CYLINDER HEAD With Valves / From: HG161788	$3,475.77	1
6051	LR091486	GASKET-CYLINDER HEAD	LR091486 GASKET-CYLINDER HEAD From: HG161788	$86.23	1
6065	LR091487	BOLT - HEX.HEAD	LR091487 BOLT - HEX.HEAD From: HG161788	$12.04	10
6284	LR091743	TENSIONER - TIMING BELT	LR091743 TENSIONER - TIMING BELT Secondary / From: HG161788	$124.44	1
6500	LR073777	TAPPET - VALVE	LR073777 TAPPET - VALVE From: HG161788	$51.03	8
6505	LR134473	VALVE - EXHAUST	LR134473 VALVE - EXHAUST From: HG161788	$27.94	8
6507	LR124745	VALVE - INLET	LR124745 VALVE - INLET From: HG161788	$27.86	8
6513A	LR091751	SPRING - VALVE	LR091751 SPRING - VALVE Intake Side / From: HG161788	$13.57	8
6513B	LR091752	SPRING - VALVE	LR091752 SPRING - VALVE EXHAUST SIDE / From: HG161788	$12.93	8
6514	LR091753	RETAINER - VALVE SPRING - UPPER	LR091753 RETAINER - VALVE SPRING - UPPER From: HG161788	$17.07	16
6518	LR073774	COLLET - VALVE SPRING RETAINER	LR073774 COLLET - VALVE SPRING RETAINER From: HG161788	$3.33	32
6564	LR091754	ARM - VALVE ROCKER	LR091754 ARM - VALVE ROCKER From: HG161788	$46.26	8
6571	LR091757	SEAL - VALVE STEM	LR091757 SEAL - VALVE STEM From: HG161788	$5.92	16
8592	LR094433	TUBE - WATER OUTLET	LR094433 TUBE - WATER OUTLET From: HG161788	$66.25	1

Cylinder Head (2.0L I4 High Dohc Aj200 Petrol, Changsu (China), 2.0L I4 Mid Dohc Aj200 Petrol, 2.0L...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Cylinder Head (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L...
