Find Your Part

View All

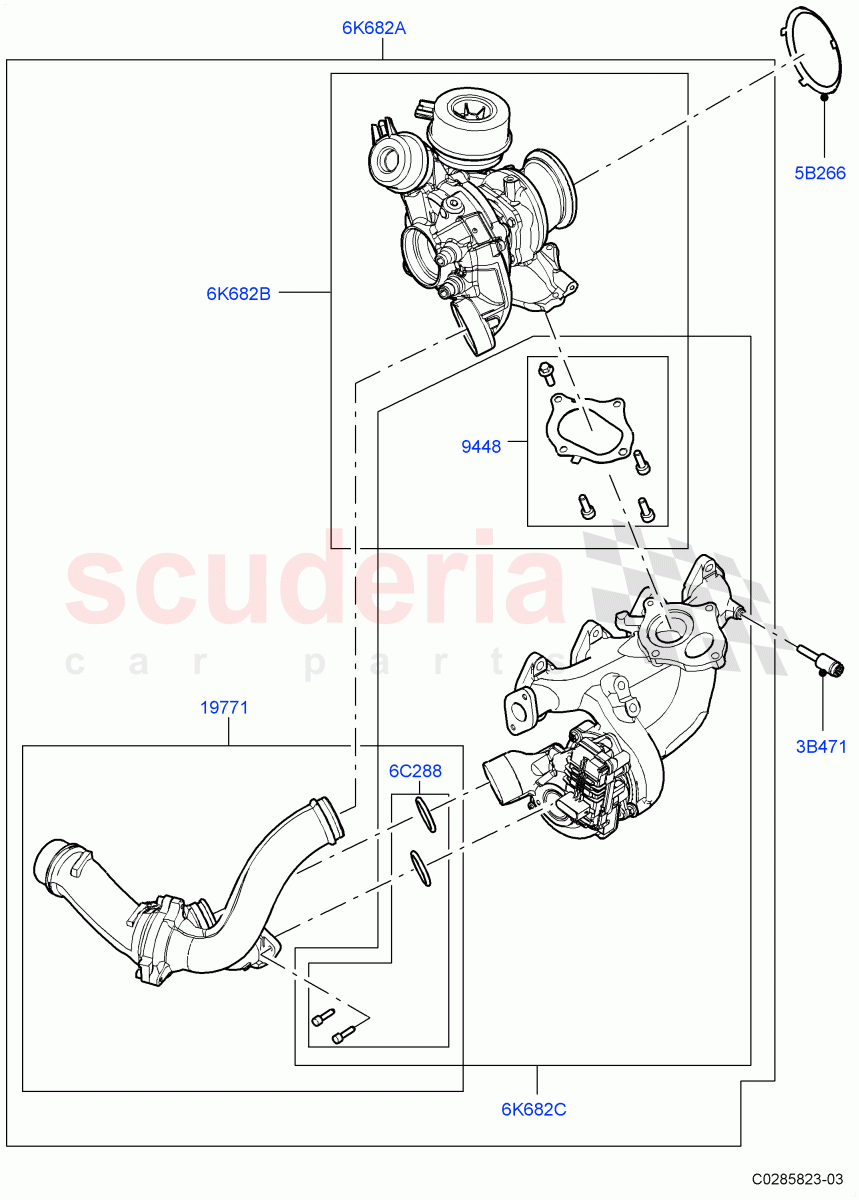

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR112419	GASKET - TURBOCHARGER	$96.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112422	COMPRESSOR - BYPASS VALVE	$281.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073663	BOLT - SPECIAL	$3.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072251	GASKET - TURBOCHARGER	$16.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112421	O RING - COMPRESSOR BYPASS VALVE	$44.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094518	TURBOCHARGER	$3,347.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112418	TURBOCHARGER - LOW PRESSURE	$1,883.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112420	TURBOCHARGER - HIGH PRESSURE	$1,883.05	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
3B471	LR073663	BOLT - SPECIAL	LR073663 BOLT - SPECIAL From: JT000001	$3.72	8
5B266	LR072251	GASKET - TURBOCHARGER	LR072251 GASKET - TURBOCHARGER 101 mm / From: JT000001	$16.71	1
6C288	LR112421	O RING - COMPRESSOR BYPASS VALVE	LR112421 O RING - COMPRESSOR BYPASS VALVE Kit - Includes Fixings / From: JT000001	$44.64	1
6K682A	LR094518	TURBOCHARGER	LR094518 TURBOCHARGER Complete Assembly / From: JT000001	$3,347.64	1
6K682B	LR112418	TURBOCHARGER - LOW PRESSURE	LR112418 TURBOCHARGER - LOW PRESSURE Low Pressure / From: JT000001	$1,883.05	1
6K682C	LR112420	TURBOCHARGER - HIGH PRESSURE	LR112420 TURBOCHARGER - HIGH PRESSURE High Pressure / From: JT000001	$1,883.05	1
9448	LR112419	GASKET - TURBOCHARGER	LR112419 GASKET - TURBOCHARGER Kit - Includes Fixings / From: JT000001	$96.43	1
19771	LR112422	COMPRESSOR - BYPASS VALVE	LR112422 COMPRESSOR - BYPASS VALVE From: JT000001	$281.37	1
