Name: Turbocharger (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil)) ((V) FROMGT000001)
Rating: 4.0 (1 reviews)

View All

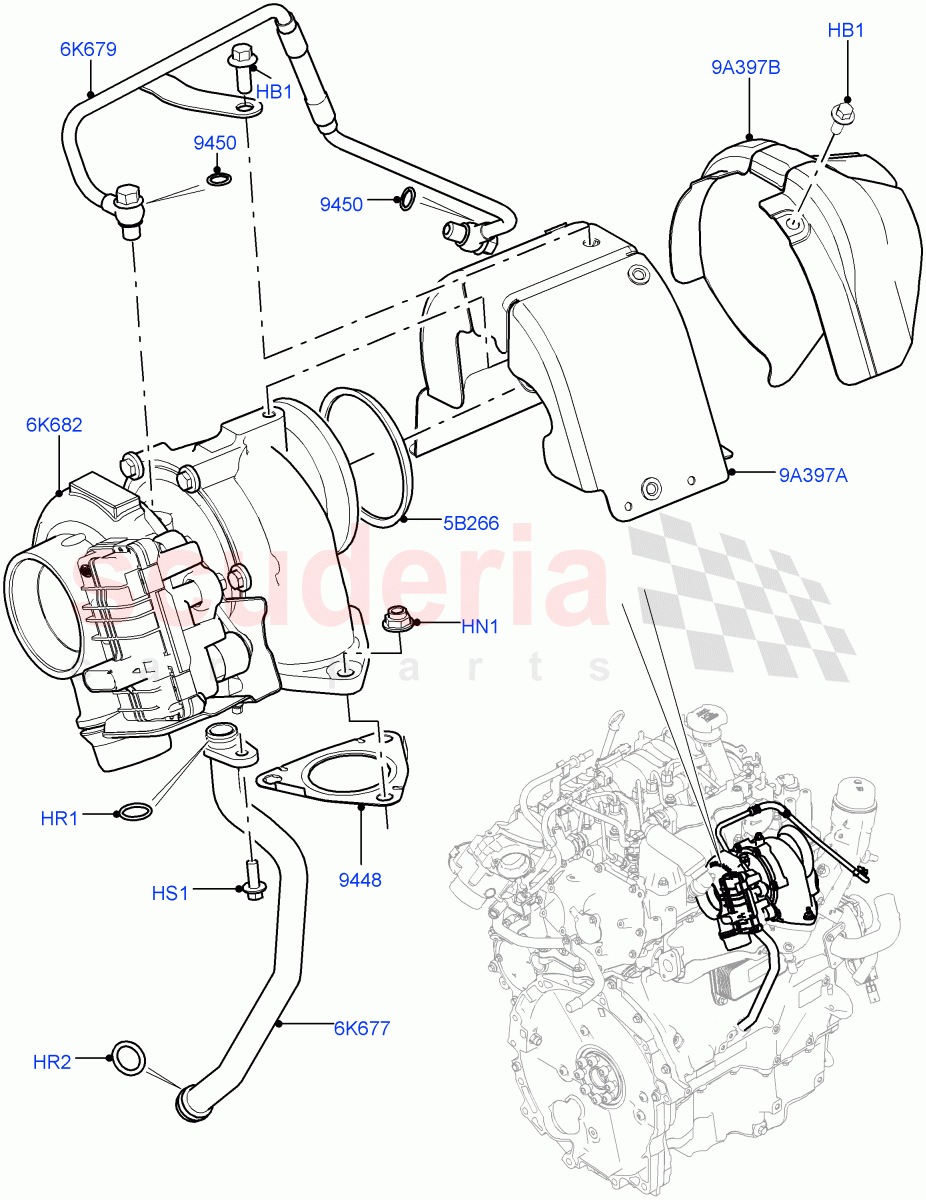

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073725	NUT - HEX.	$2.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073687	O-RING	$29.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073688	O-RING	$3.99	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073686	SCREW	$2.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073723	GASKET - EXHAUST MANIFOLD	$30.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073671	WASHER - COPPER	$4.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR072251	GASKET - TURBOCHARGER	$16.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073681	PIPE - OIL DRAIN	$53.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073682	PIPE - OIL FEED	$114.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083483	TURBOCHARGER	$2,100.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073656	HEAT SHIELD - TURBOCHARGER	$59.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071807	HEAT SHIELD - TURBOCHARGER	$42.10	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD M6 X 14MM, Shield / From: GT000001	$2.77	2
HN1	LR073725	NUT - HEX.	LR073725 NUT - HEX. M8 / From: GT000001	$2.48	3
HR1	LR073687	O-RING	LR073687 O-RING 14.3 x 2.4, Turbocharger, Upper / From: GT000001	$29.56	1
HR2	LR073688	O-RING IN STOCK	LR073688 O-RING 15 X 3MM, Lower / From: GT000001 IN STOCK	$3.99	1
HS1	LR073686	SCREW	LR073686 SCREW Drain, M6 X 16MM / From: GT000001	$2.49	1
5B266	LR072251	GASKET - TURBOCHARGER	LR072251 GASKET - TURBOCHARGER 101 mm / From: GT000001	$16.70	1
6K677	LR073681	PIPE - OIL DRAIN	LR073681 PIPE - OIL DRAIN From: GT000001	$53.66	1
6K679	LR073682	PIPE - OIL FEED	LR073682 PIPE - OIL FEED From: GT000001	$114.92	1
6K682	LR083483	TURBOCHARGER	LR083483 TURBOCHARGER From: GT000001	$2,100.11	1
9A397A	LR073656	HEAT SHIELD - TURBOCHARGER	LR073656 HEAT SHIELD - TURBOCHARGER From: GT000001	$59.22	1
9A397B	LR071807	HEAT SHIELD - TURBOCHARGER	LR071807 HEAT SHIELD - TURBOCHARGER From: GT000001	$42.10	1
9448	LR073723	GASKET - EXHAUST MANIFOLD	LR073723 GASKET - EXHAUST MANIFOLD Turbocharger / From: GT000001	$30.38	1
9450	LR073671	WASHER - COPPER IN STOCK	LR073671 WASHER - COPPER Banjo Washer, Cooling For Turbocharger, Requires 2 Pcs Per Banjo-Bolt / From: GT000001 IN STOCK	$4.69	4

Turbocharger (2.0L I4 Dsl Mid Dohc Aj200, Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]
