Thermostat/Housing & Related Parts (2.0L I4 Dsl Mid Dohc Aj200, 6 Speed Manual Trans-Jlr M66 2Wd,...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Thermostat/Housing & Related Parts (2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans-JLR M66 2WD,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR096839 O-RING $6.09 To Order
Photo Part No Description Price (each) Stock
LR096840 O-RING $12.64 To Order
Photo Part No Description Price (each) Stock
LR096841 O-RING $5.93 To Order
Photo Part No Description Price (each) Stock
LR073648 SCREW $2.67 IN STOCK
Photo Part No Description Price (each) Stock
LR073736 SCREW $1.71 To Order
Photo Part No Description Price (each) Stock
VYP500080 BOLT AND WASHER - HEX.HEAD $0.69 IN STOCK
Photo Part No Description Price (each) Stock
LR072044 SUPPORT - ENGINE MOUNTING - FRONT $359.49 To Order
Photo Part No Description Price (each) Stock
LR105592 SEAL - THERMOSTAT $8.67 To Order
Photo Part No Description Price (each) Stock
LR077712 TUBE - BY-PASS $50.64 To Order
LR083328 TUBE - BY-PASS $47.96 IN STOCK
Photo Part No Description Price (each) Stock
LR105975 THERMOSTAT $174.32 IN STOCK
LR105975 THERMOSTAT $174.32 IN STOCK
Photo Part No Description Price (each) Stock
LR117900 TUBE - CONNECTING $51.31 To Order
LR117900 TUBE - CONNECTING $51.31 To Order
Photo Part No Description Price (each) Stock
LR105595 SENSOR - ENGINE COOLANT TEMPERATURE $36.29 To Order
Photo Part No Description Price (each) Stock
LR105610 RETAINER - SENSOR CLIP $4.71 To Order
Photo Part No Description Price (each) Stock
LR114275 HOSE - WATER BY-PASS $70.86 To Order
LR114275 HOSE - WATER BY-PASS $70.86 To Order
Photo Part No Description Price (each) Stock
LR076780 TUBE - BY-PASS $61.42 To Order
View All

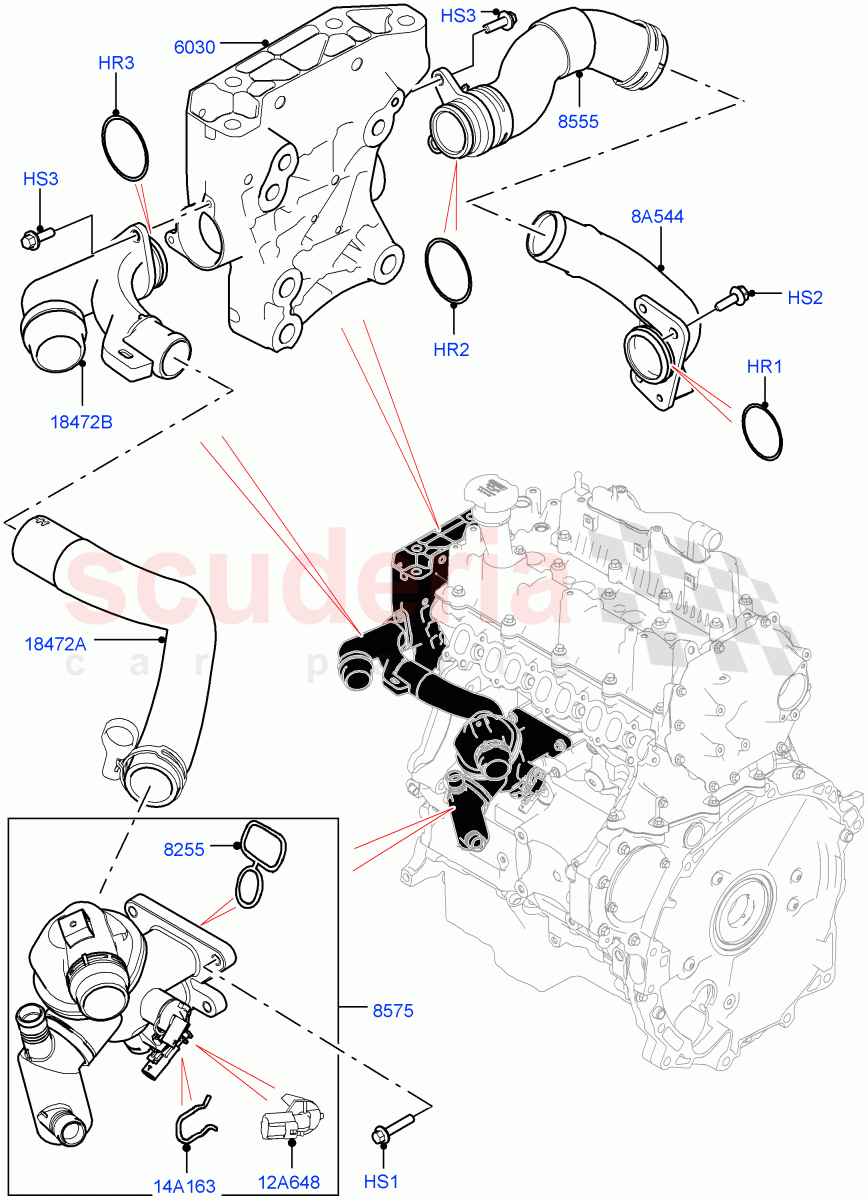

Thermostat/Housing & Related Parts (2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans-JLR M66 2WD, Halewood (UK), 6 Speed Manual Trans M66 - AWD, 2.0L I4 DSL HIGH DOHC AJ200, 9 Speed Auto AWD, 6 Speed Manual Trans BG6) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR096839
O-RING
Elbow Connector, 		$6.09 1
HR2 LR096840
O-RING 		$12.64 1
HR3 LR096841
O-RING 		$5.93 1
HS1 LR073648
SCREW
Hexagonal Head, M6 x 30MM / From: GH000001
IN STOCK 		$2.67 4
HS2 LR073736
SCREW
M8 X 30MM / From: GH000001 		$1.71 2
HS3 VYP500080
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M6 X 20MM / From: GH000001
IN STOCK 		$0.69 4
8A544 LR117900
TUBE - CONNECTING
From: GH000001 / To: JH315259 		$51.31 1
8A544 LR117900
TUBE - CONNECTING
From: JH315260 		$51.31 1
12A648 LR105595
SENSOR - ENGINE COOLANT TEMPERATURE
From: GH000001 		$36.29 1
14A163 LR105610
RETAINER - SENSOR CLIP
From: GH000001 		$4.71 1
6030 LR072044
SUPPORT - ENGINE MOUNTING - FRONT
From: GH000001 		$359.49 1
8255 LR105592
SEAL - THERMOSTAT
Thermostat And Housing Assy / From: GH000001 		$8.67 1
8555 LR077712
TUBE - BY-PASS
From: GH000001 / To: GH101147 		$50.64 1
8555 LR083328
TUBE - BY-PASS
From: GH101148
IN STOCK 		$47.96 1
8575 LR105975
THERMOSTAT
From: GH000001 / To: HH999999
IN STOCK 		$174.32 1
8575 LR105975
THERMOSTAT
From: JH000001
IN STOCK 		$174.32 1
18472A LR114275
HOSE - WATER BY-PASS
From: GH000001 / To: JH300263 		$70.86 1
18472A LR114275
HOSE - WATER BY-PASS
From: JH300264 		$70.86 1
18472B LR076780
TUBE - BY-PASS
From: GH000001 		$61.42 1
