Egr Cooling System (2.0L I4 Dsl Mid Dohc Aj200, Euro Stage 4 Emissions) ((V) Fromhh000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - EGR Cooling System (2.0L I4 DSL MID DOHC AJ200, Euro Stage 4 Emissions) ((V) FROMHH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR073713 TUBE - HEATER WATER $177.21 To Order
LR104391 TUBE - HEATER WATER $120.95 To Order
Photo Part No Description Price (each) Stock
LR071993 HOSE - HEATER WATER $69.43 To Order
Photo Part No Description Price (each) Stock
LR071992 HOSE - HEATER WATER $71.85 To Order
Photo Part No Description Price (each) Stock
LR087179 HOSE - EGR COOLER $133.00 To Order
Photo Part No Description Price (each) Stock
LR074125 HOSE - EGR COOLER $39.84 To Order
Photo Part No Description Price (each) Stock
LR084790 HOSE - WATER OUTLET $45.66 To Order
View All

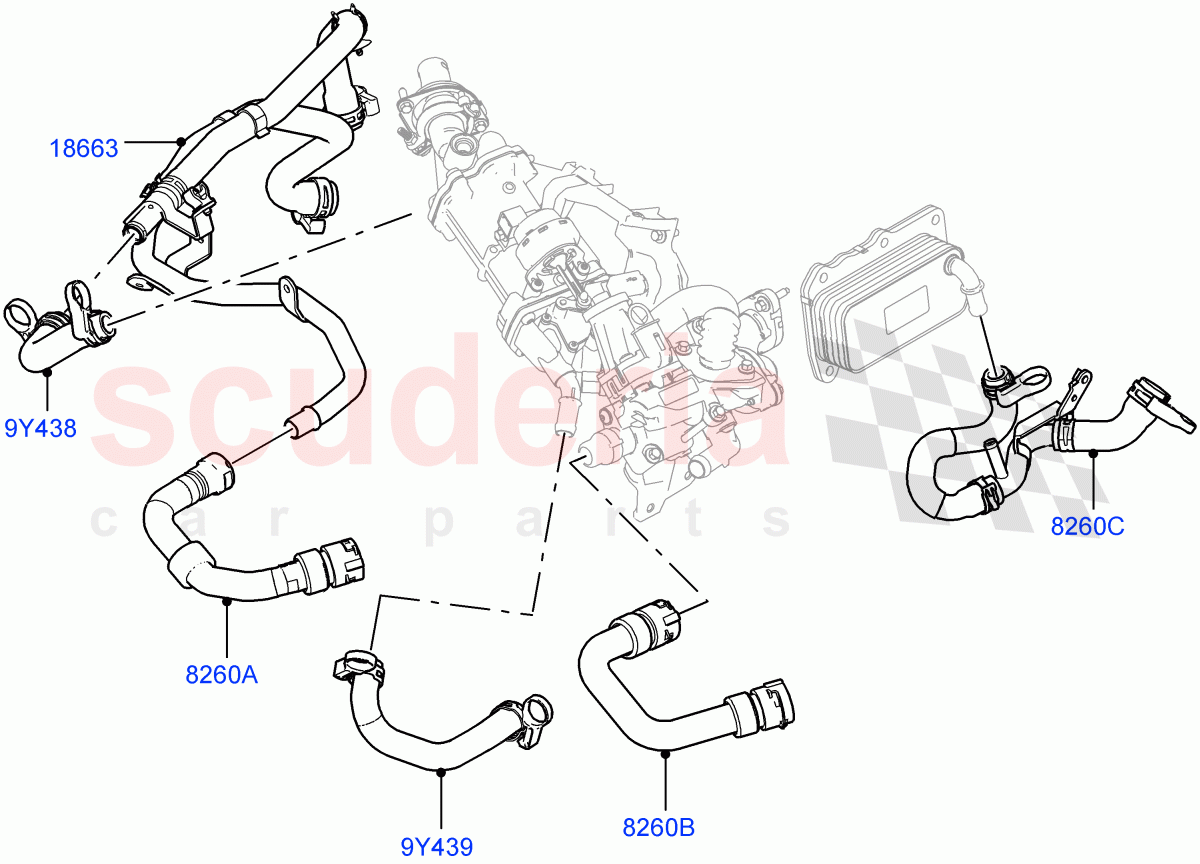

EGR Cooling System (2.0L I4 DSL MID DOHC AJ200, Euro Stage 4 Emissions) ((V) FROMHH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
9Y438 LR074125
HOSE - EGR COOLER
EGR Cooler Inlet / From: HH000001 		$39.84 1
9Y439 LR084790
HOSE - WATER OUTLET
Coolant EGR to Heater / From: HH000001 		$45.66 1
8260A LR071993
HOSE - HEATER WATER
Connection, Heater And EGR Water Rail / From: HH000001 		$69.43 1
8260B LR071992
HOSE - HEATER WATER
Coolant EGR to Heater, High Pressure EGR / From: HH000001 		$71.85 1
8260C LR087179
HOSE - EGR COOLER
Oil Cooler Hose / From: HH000001 		$133.00 1
18663 LR073713
TUBE - HEATER WATER
Heater And EGR Water Rail / From: HH000001 / To: HH262487 		$177.21 1
18663 LR104391
TUBE - HEATER WATER
Heater And EGR Water Rail / From: HH262488 		$120.95 1
