Exterior Rear View Mirror ((V) Fromaa000001, (V) Toda999999)

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Exterior Rear View Mirror ((V) FROMAA000001, (V) TODA999999)

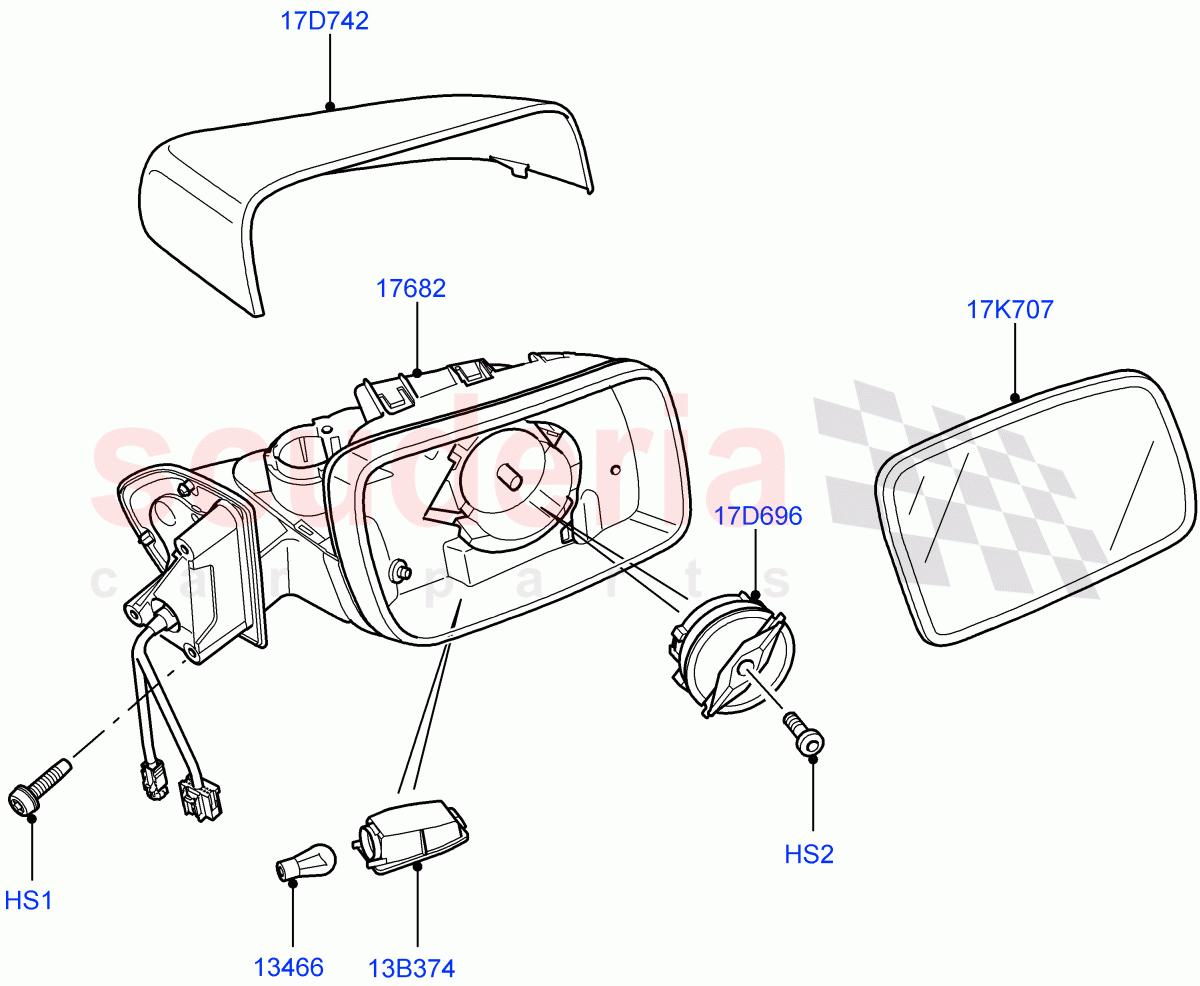

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CYG500010 SCREW $1.05 To Order
Photo Part No Description Price (each) Stock
LR011865 SCREW $1.29 IN STOCK
Photo Part No Description Price (each) Stock
CTY500011 BULB $1.56 IN STOCK
Photo Part No Description Price (each) Stock
LR013787 MIRROR - REAR VIEW - OUTER $435.91 To Order
LR013788 MIRROR - REAR VIEW - OUTER $435.91 To Order
LR013789 MIRROR - REAR VIEW - OUTER $435.91 To Order
...and 37 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
CTZ500010 CARRIER - BULB $21.53 To Order
Photo Part No Description Price (each) Stock
LR015050 MOTOR - EXTERIOR REAR VIEW MIRROR $87.77 To Order
LR015051 MOTOR - EXTERIOR REAR VIEW MIRROR $136.11 To Order
CRP500041 MOTOR - EXTERIOR REAR VIEW MIRROR $131.33 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR015056 COVER - MIRROR HOUSING $83.03 To Order
LR015057 COVER - MIRROR HOUSING $83.03 To Order
LR019961 COVER - MIRROR HOUSING $95.14 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR013774 GLASS - REAR VIEW OUTER MIRROR $123.32 To Order
LR013775 GLASS - REAR VIEW OUTER MIRROR $123.32 To Order
LR013776 GLASS - REAR VIEW OUTER MIRROR $118.66 To Order
...and 3 more part variants. See table on right for more details.
View All
Exterior Rear View Mirror ((V) FROMAA000001, (V) TODA999999) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 CYG500010
SCREW
M5 x 20MM / From: AA000001 		$1.05 3
HS2 LR011865
SCREW
M3 X 25MM / From: AA000001
IN STOCK 		$1.29 1
13B374 CTZ500010
CARRIER - BULB
With Approach Lamp / From: AA000001 		$21.53 1
17D696 LR015050
MOTOR - EXTERIOR REAR VIEW MIRROR
Less Memory Mirror / LH, 3 Pin Connector, Less Memory / From: AA000001 		$87.77 1
17D696 LR015051
MOTOR - EXTERIOR REAR VIEW MIRROR
With Memory Mirror / LH, 8 Pin Connector, With Memory / From: AA000001 		$136.11 1
17D696 CRP500041
MOTOR - EXTERIOR REAR VIEW MIRROR
With Memory Mirror / RH, 8 Pin Connector, With Memory / From: AA000001 		$131.33 1
17D696 CRP500031
MOTOR - EXTERIOR REAR VIEW MIRROR
Less Memory Mirror / RH, 3 Pin Connector, Less Memory / From: AA000001 		$89.42 1
17D742 LR015056
COVER - MIRROR HOUSING
RH, Primed / From: AA000001 / To: AA527285 		$83.03 1
17D742 LR015057
COVER - MIRROR HOUSING
LH, Primed / From: AA000001 / To: AA527285 		$83.03 1
17D742 LR019961
COVER - MIRROR HOUSING
RH, Primed / From: AA527286 		$95.14 1
17D742 LR019962
COVER - MIRROR HOUSING
LH, Primed / From: AA527286 		$95.14 1
17K707 LR013774
GLASS - REAR VIEW OUTER MIRROR
(-)"CDN/MEX/USA", Less Mirror Glass Script / RH, Convex / From: AA000001 		$123.32 1
17K707 LR013775
GLASS - REAR VIEW OUTER MIRROR
(-)"CDN/MEX/USA", Less Mirror Glass Script / LH, Convex / From: AA000001 		$123.32 1
17K707 LR013776
GLASS - REAR VIEW OUTER MIRROR
(+)"CDN/MEX/USA" / RH / From: AA000001 		$118.66 1
17K707 LR013777
GLASS - REAR VIEW OUTER MIRROR
(+)"CDN/MEX/USA", Less Mirror Glass Script / LH / From: AA000001 		$119.13 1
17K707 LR013778
GLASS - REAR VIEW OUTER MIRROR
(+)"GCC", Arabic Script On Mirror / RH, Convex / From: AA000001 		$117.84 1
17K707 LR013779
GLASS - REAR VIEW OUTER MIRROR
(+)"GCC", Arabic Script On Mirror / LH, Convex / From: AA000001 		$117.84 1
13466 CTY500011
BULB
With Approach Lamp / 12V - 5W / From: AA000001
IN STOCK 		$1.56 1
17682 LR013787
MIRROR - REAR VIEW - OUTER
Less Approach Lamp, Less Front Camera, Less Memory Mirror, Less Powerfold Mirror, RHD / RH / From: AA000001 / To: CA631548 		$435.91 1
17682 LR013788
MIRROR - REAR VIEW - OUTER
LHD, Less Approach Lamp, Less Front Camera, Less Memory Mirror, Less Powerfold Mirror / RH / From: AA000001 / To: CA631548 		$435.91 1
17682 LR013789
MIRROR - REAR VIEW - OUTER
Less Approach Lamp, Less Front Camera, Less Powerfold Mirror, RHD, With Memory Mirror / RH / From: AA000001 / To: CA631267 		$435.91 1
17682 LR013791
MIRROR - REAR VIEW - OUTER
LHD, Less Approach Lamp, Less Front Camera, Less Powerfold Mirror, With Memory Mirror / RH / From: AA000001 / To: CA631267 		$435.91 1
17682 LR013792
MIRROR - REAR VIEW - OUTER
Less Approach Lamp, Less Front Camera, Less Memory Mirror, Less Powerfold Mirror, RHD / LH / From: AA000001 / To: CA631548 		$435.91 1
17682 LR013793
MIRROR - REAR VIEW - OUTER
LHD, Less Approach Lamp, Less Front Camera, Less Memory Mirror, Less Powerfold Mirror / LH / From: AA000001 / To: CA631548 		$435.91 1
17682 LR013794
MIRROR - REAR VIEW - OUTER
Less Approach Lamp, Less Front Camera, Less Powerfold Mirror, RHD, With Memory Mirror / LH / From: AA000001 / To: CA631267 		$435.91 1
17682 LR013795
MIRROR - REAR VIEW - OUTER
LHD, Less Approach Lamp, Less Front Camera, Less Powerfold Mirror, With Memory Mirror / LH / From: AA000001 / To: CA631267 		$435.91 1
17682 LR013756
MIRROR - REAR VIEW - OUTER
Less Approach Lamp, Less Front Camera, Less Memory Mirror, RHD, With Powerfold Mirror / RH / From: AA000001 / To: CA631267 		$435.91 1
17682 LR013758
MIRROR - REAR VIEW - OUTER
LHD, Less Approach Lamp, Less Front Camera, Less Memory Mirror, With Powerfold Mirror / RH / From: AA000001 / To: CA631548 		$476.83 1
17682 LR013759
MIRROR - REAR VIEW - OUTER
Less Approach Lamp, Less Front Camera, RHD, With Memory Mirror, With Powerfold Mirror / RH / From: AA000001 / To: CA631548 		$435.91 1
17682 LR013760
MIRROR - REAR VIEW - OUTER
LHD, Less Approach Lamp, Less Front Camera, With Memory Mirror, With Powerfold Mirror / RH / From: AA000001 / To: CA631267 		$435.91 1
17682 LR013762
MIRROR - REAR VIEW - OUTER
RHD, Surround Camera System, With Approach Lamp, With Memory Mirror, With Powerfold Mirror / RH / From: AA000001 / To: CA631267 		$784.65 1
17682 LR013763
MIRROR - REAR VIEW - OUTER
LHD, Surround Camera System, With Approach Lamp, With Memory Mirror, With Powerfold Mirror / RH / From: AA000001 / To: CA631267 		$784.65 1
17682 LR013765
MIRROR - REAR VIEW - OUTER
Less Approach Lamp, Less Front Camera, Less Memory Mirror, RHD, With Powerfold Mirror / LH / From: AA000001 / To: CA631267 		$435.91 1
17682 LR013766
MIRROR - REAR VIEW - OUTER
LHD, Less Approach Lamp, Less Front Camera, Less Memory Mirror, With Powerfold Mirror / LH / From: AA000001 / To: CA631548 		$435.91 1
17682 LR013767
MIRROR - REAR VIEW - OUTER
Less Approach Lamp, Less Front Camera, RHD, With Memory Mirror, With Powerfold Mirror / LH / From: AA000001 / To: CA631548 		$348.75 1
17682 LR013768
MIRROR - REAR VIEW - OUTER
LHD, Less Approach Lamp, Less Front Camera, With Memory Mirror, With Powerfold Mirror / LH / From: AA000001 / To: CA631267 		$476.83 1
17682 LR013769
MIRROR - REAR VIEW - OUTER
RHD, Surround Camera System, With Approach Lamp, With Memory Mirror, With Powerfold Mirror / LH / From: AA000001 / To: CA631267 		$784.65 1
17682 LR013770
MIRROR - REAR VIEW - OUTER
LHD, Surround Camera System, With Approach Lamp, With Memory Mirror, With Powerfold Mirror / LH / From: AA000001 / To: CA631267 		$784.65 1
17682 LR041870
MIRROR - REAR VIEW - OUTER
Less Approach Lamp, Less Front Camera, Less Memory Mirror, Less Powerfold Mirror, RHD / RH / From: CA631549 		$373.27 1
17682 LR041874
MIRROR - REAR VIEW - OUTER
Less Approach Lamp, Less Front Camera, Less Memory Mirror, Less Powerfold Mirror, RHD / LH / From: CA631549 		$414.04 1
17682 LR041871
MIRROR - REAR VIEW - OUTER
LHD, Less Approach Lamp, Less Front Camera, Less Memory Mirror, Less Powerfold Mirror / RH / From: CA631549 		$414.35 1
17682 LR041875
MIRROR - REAR VIEW - OUTER
LHD, Less Approach Lamp, Less Front Camera, Less Memory Mirror, Less Powerfold Mirror / LH / From: CA631549 		$373.06 1
17682 LR041879
MIRROR - REAR VIEW - OUTER
LHD, Less Approach Lamp, Less Front Camera, Less Memory Mirror, With Powerfold Mirror / RH / From: CA631549 		$459.14 1
17682 LR041884
MIRROR - REAR VIEW - OUTER
LHD, Less Approach Lamp, Less Front Camera, Less Memory Mirror, With Powerfold Mirror / LH / From: CA631549 		$459.14 1
17682 LR041880
MIRROR - REAR VIEW - OUTER
Less Approach Lamp, Less Front Camera, RHD, With Memory Mirror, With Powerfold Mirror / RH / From: CA631549 		$493.32 1
17682 LR041885
MIRROR - REAR VIEW - OUTER
Less Approach Lamp, Less Front Camera, RHD, With Memory Mirror, With Powerfold Mirror / LH / From: CA631549 		$493.32 1
17682 LR041872
MIRROR - REAR VIEW - OUTER
Less Approach Lamp, Less Front Camera, Less Powerfold Mirror, RHD, With Memory Mirror / RH / From: CA631268 		$413.94 1
17682 LR041873
MIRROR - REAR VIEW - OUTER
LHD, Less Approach Lamp, Less Front Camera, Less Powerfold Mirror, With Memory Mirror / RH / From: CA631268 		$414.56 1
17682 LR041876
MIRROR - REAR VIEW - OUTER
Less Approach Lamp, Less Front Camera, Less Powerfold Mirror, RHD, With Memory Mirror / LH / From: CA631268 		$400.57 1
17682 LR041877
MIRROR - REAR VIEW - OUTER
LHD, Less Approach Lamp, Less Front Camera, Less Powerfold Mirror, With Memory Mirror / LH / From: CA631268 		$414.35 1
17682 LR041878
MIRROR - REAR VIEW - OUTER
Less Approach Lamp, Less Front Camera, Less Memory Mirror, RHD, With Powerfold Mirror / RH / From: CA631268 		$500.66 1
17682 LR041881
MIRROR - REAR VIEW - OUTER
LHD, Less Approach Lamp, Less Front Camera, With Memory Mirror, With Powerfold Mirror / RH / From: CA631268 		$493.32 1
17682 LR041882
MIRROR - REAR VIEW - OUTER
Less Approach Lamp, Less Front Camera, Less Memory Mirror, RHD, With Powerfold Mirror / LH / From: CA631268 		$418.84 1
17682 LR041886
MIRROR - REAR VIEW - OUTER
LHD, Less Approach Lamp, Less Front Camera, With Memory Mirror, With Powerfold Mirror / LH / From: CA631268 		$493.32 1
17682 LR041883
MIRROR - REAR VIEW - OUTER
RHD, Surround Camera System, With Approach Lamp, With Memory Mirror, With Powerfold Mirror / RH / From: CA631268 		$841.01 1
17682 LR041889
MIRROR - REAR VIEW - OUTER
LHD, Surround Camera System, With Approach Lamp, With Memory Mirror, With Powerfold Mirror / RH / From: CA631268 		$924.97 1
17682 LR041887
MIRROR - REAR VIEW - OUTER
Less Approach Lamp, RHD, Surround Camera System, With Memory Mirror, With Powerfold Mirror / LH / From: CA631268 		$841.01 1
17682 LR041888
MIRROR - REAR VIEW - OUTER
LHD, Surround Camera System, With Approach Lamp, With Memory Mirror, With Powerfold Mirror / LH / From: CA631268 		$924.97 1
