Side Panels - Inner (Front) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Side Panels - Inner (Front) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
BTR2710 BOLT $3.62 IN STOCK
Photo Part No Description Price (each) Stock
AME780280 REINFORCEMENT - "B" PILLAR $556.84 To Order
AME780290 REINFORCEMENT - "B" PILLAR $509.81 To Order
Photo Part No Description Price (each) Stock
ALR780600 REINFORCEMENT - BODY SIDE CENTRE $737.62 To Order
ALR780610 REINFORCEMENT - DOOR ASSY $737.62 To Order
Photo Part No Description Price (each) Stock
ALR780560 REINFORCEMENT $38.80 To Order
ALR780570 REINFORCEMENT $37.66 To Order
LR061716 REINFORCEMENT $394.51 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR014284 PANEL - SILL - INNER $65.83 To Order
LR014285 PANEL - SILL - INNER $61.45 To Order
LR055981 PANEL - SILL - INNER $338.95 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
ADR780380 REINFORCEMENT - FLOOR $8.81 To Order
Photo Part No Description Price (each) Stock
AME780081 RAIL - BODY SIDE - UPPER $138.60 To Order
AME780091 RAIL - BODY SIDE - UPPER $143.44 To Order
LR031720 RAIL - BODY SIDE - UPPER $127.25 To Order
...and 1 more part variants. See table on right for more details.
View All

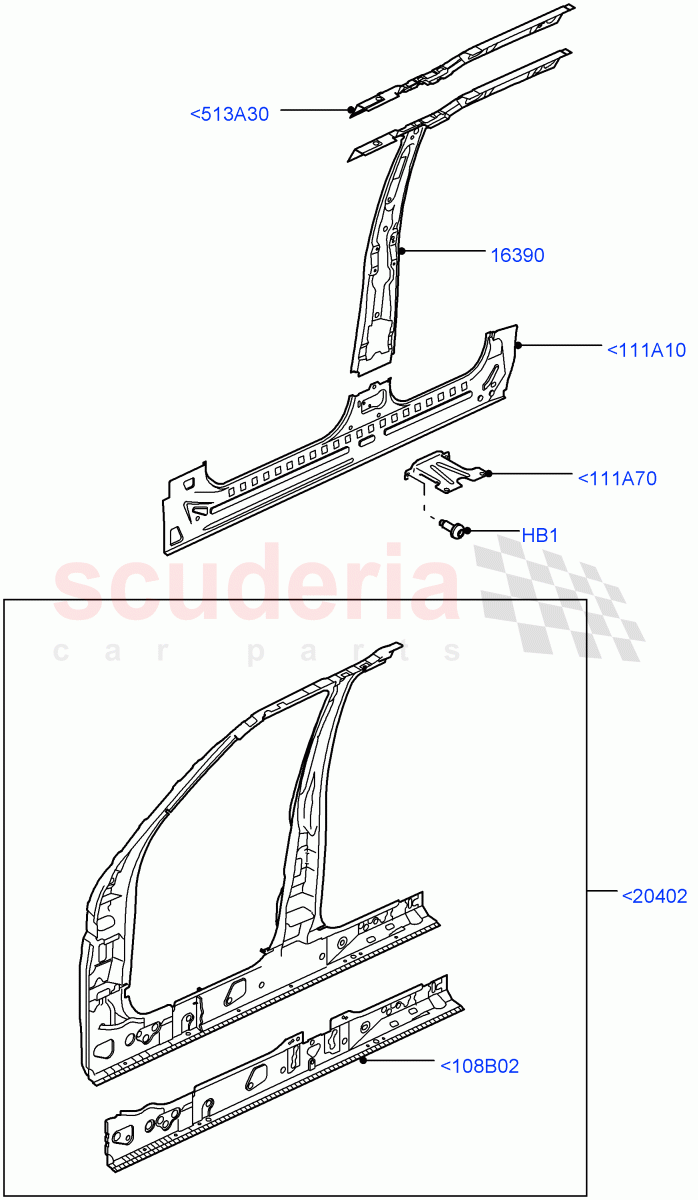

Side Panels - Inner (Front) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<108B02 ALR780560
REINFORCEMENT
RH, Sill / From: AA000001 / To: EA999999 		$38.80 1
<108B02 ALR780570
REINFORCEMENT
LH, Sill / From: AA000001 / To: EA999999 		$37.66 1
<108B02 LR061716
REINFORCEMENT
RH, Sill / From: FA000001 		$394.51 1
<108B02 LR061715
REINFORCEMENT
LH, "B" Pillar / From: FA000001 		$394.51 1
<111A10 LR014284
PANEL - SILL - INNER
RH / From: AA000001 / To: DA999999 		$65.83 1
<111A10 LR014285
PANEL - SILL - INNER
LH / From: AA000001 / To: DA999999 		$61.45 1
<111A10 LR055981
PANEL - SILL - INNER
RH / From: EA000001 		$338.95 1
<111A10 LR055982
PANEL - SILL - INNER
LH / From: EA000001 		$358.27 1
<111A70 ADR780380
REINFORCEMENT - FLOOR
"B" Pillar, Located On Floor / From: AA000001 		$8.81 2
<513A30 AME780081
RAIL - BODY SIDE - UPPER
RH / From: AA000001 / To: BA581534 		$138.60 1
<513A30 AME780091
RAIL - BODY SIDE - UPPER
LH / From: AA000001 / To: BA581534 		$143.44 1
<513A30 LR031720
RAIL - BODY SIDE - UPPER
RH / From: BA581535 		$127.25 1
<513A30 LR031721
RAIL - BODY SIDE - UPPER
LH / From: BA581535 		$132.58 1
<20402 ALR780600
REINFORCEMENT - BODY SIDE CENTRE
RH, Ringframe / From: AA000001 		$737.62 1
<20402 ALR780610
REINFORCEMENT - DOOR ASSY
LH, Ringframe / From: AA000001 		$737.62 1
HB1 BTR2710
BOLT
M10 X 1.5, Torx / From: AA000001
IN STOCK 		$3.62 3
16390 AME780280
REINFORCEMENT - "B" PILLAR
RH, "B" Pillar / From: AA000001 		$556.84 1
16390 AME780290
REINFORCEMENT - "B" PILLAR
LH, "B" Pillar / From: AA000001 		$509.81 1
