Name: Rear Seat Frame (Row 3) (With 7 Seat Configuration) ((V) FROMAA000001)
Rating: 4.5 (1 reviews)

Rear Seat Frame (Row 3) (With 7 Seat Configuration) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

View All

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Rear Seat Frame (Row 3) (With 7 Seat Configuration) ((V) FROMAA000001)

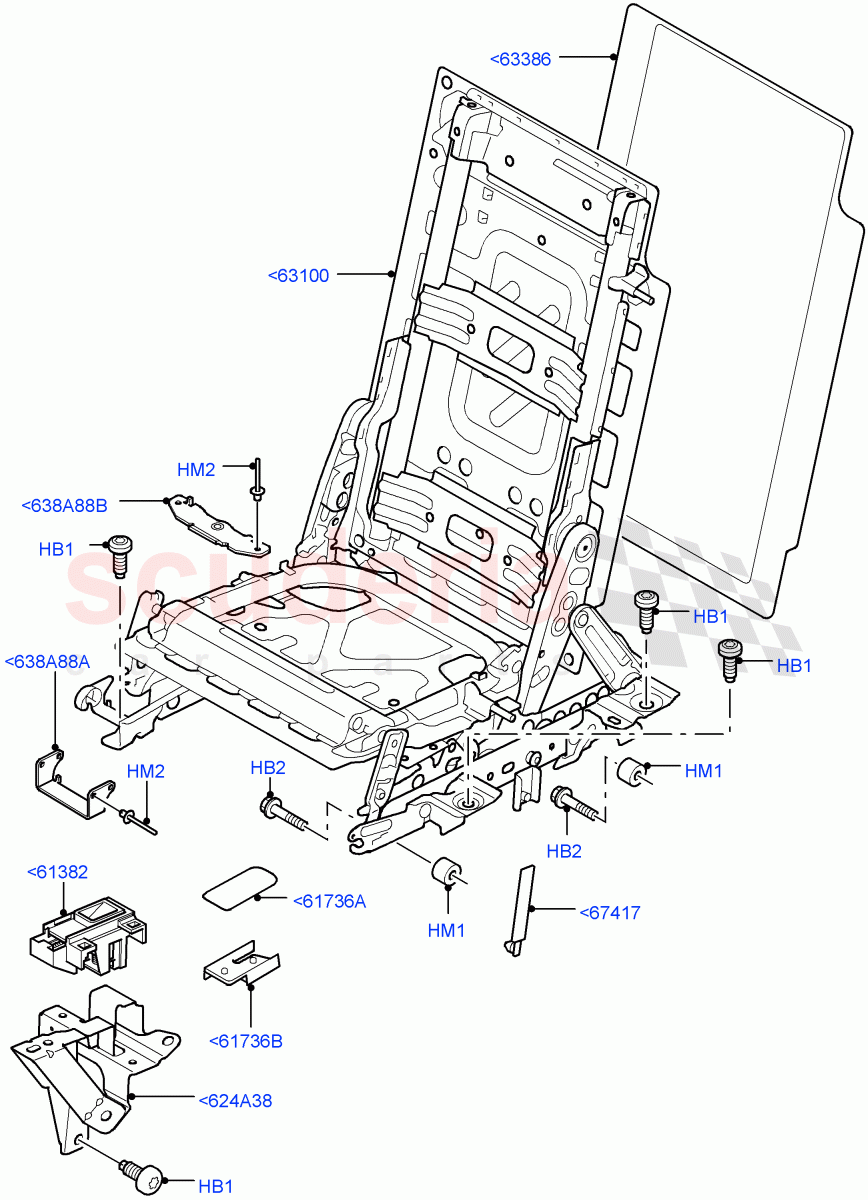

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BTR2710	BOLT	$3.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	BYG500130	BOLT	$2.36	To Order

Photo	Part No	Description	Price (each)	Stock
	HZT500011	BUSH	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	HYQ500020	RIVET	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	HWE500020	LATCH	$43.72	To Order
	HWE500030	LATCH	$47.15	To Order
	LR057393	LATCH	$65.77	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HTD500260	FRAME	$950.54	To Order
	HTD500270	FRAME	$950.54	To Order

Photo	Part No	Description	Price (each)	Stock
	HMS500041PVJ	COVER - REAR SEAT BRACKET	$285.79	To Order
	LR008327	COVER - REAR SEAT BRACKET	$182.09	To Order
	HMS500051PVJ	COVER - REAR SEAT BRACKET	$285.79	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HPH500011PVJ	STRAP - RELEASE	$26.35	To Order

Photo	Part No	Description	Price (each)	Stock
	HXG500240PVJ	HANDLE - SEAT BACK ADJUSTING	$16.25	To Order
	HXG500250PVJ	HANDLE - SEAT BACK ADJUSTING	$21.46	To Order

Photo	Part No	Description	Price (each)	Stock
	HXG500260PVJ	HANDLE - REAR SEAT CUSHION	$4.19	To Order
	HXG500270PVJ	HANDLE - REAR SEAT CUSHION	$4.19	To Order

Photo	Part No	Description	Price (each)	Stock
	HTM500050	BRACKET	$28.60	To Order
	HTM500040	BRACKET	$28.60	To Order

Photo	Part No	Description	Price (each)	Stock
	HTM500011	BRACKET	$2.98	To Order

Photo	Part No	Description	Price (each)	Stock
	HTM500021	BRACKET	$2.92	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<624A38	HTM500050	BRACKET	HTM500050 BRACKET LH, Latch / From: AA000001	$28.60	1
<624A38	HTM500040	BRACKET	HTM500040 BRACKET RH, Latch / From: AA000001	$28.60	1
<638A88A	HTM500011	BRACKET	HTM500011 BRACKET From: AA000001	$2.98	1
<638A88B	HTM500021	BRACKET	HTM500021 BRACKET From: AA000001	$2.92	1
<61382	HWE500020	LATCH	HWE500020 LATCH RH / From: AA000001 / To: EA703525	$43.72	1
<61382	HWE500030	LATCH	HWE500030 LATCH LH / From: AA000001 / To: EA703525	$47.15	1
<61382	LR057393	LATCH	LR057393 LATCH RH / From: EA703526	$65.77	1
<61382	LR057394	LATCH	LR057394 LATCH LH / From: EA703526	$75.11	1
<61736A	HXG500240PVJ	HANDLE - SEAT BACK ADJUSTING	HXG500240PVJ HANDLE - SEAT BACK ADJUSTING Rear Seat Back Release Handle, RH Upper / From: AA000001	$16.25	1
<61736A	HXG500250PVJ	HANDLE - SEAT BACK ADJUSTING	HXG500250PVJ HANDLE - SEAT BACK ADJUSTING LH Upper, Rear Seat Back Release Handle / From: AA000001	$21.46	1
<61736B	HXG500260PVJ	HANDLE - REAR SEAT CUSHION	HXG500260PVJ HANDLE - REAR SEAT CUSHION Rear Seat Back Release Handle, RH Lower / From: AA000001	$4.19	1
<61736B	HXG500270PVJ	HANDLE - REAR SEAT CUSHION	HXG500270PVJ HANDLE - REAR SEAT CUSHION LH Lower, Rear Seat Back Release Handle / From: AA000001	$4.19	1
<63100	HTD500260	FRAME	HTD500260 FRAME RH / From: AA000001	$950.54	1
<63100	HTD500270	FRAME	HTD500270 FRAME LH / From: AA000001	$950.54	1
<63386	HMS500041PVJ	COVER - REAR SEAT BRACKET	HMS500041PVJ COVER - REAR SEAT BRACKET Int Ebony Carpet / RH, For Seat Back / From: AA000001 / To: AA547164	$285.79	1
<63386	LR008327	COVER - REAR SEAT BRACKET	LR008327 COVER - REAR SEAT BRACKET Interior Nutmeg Carpet - LR / RH, For Seat Back / From: AA000001 / To: AA547164	$182.09	1
<63386	HMS500051PVJ	COVER - REAR SEAT BRACKET	HMS500051PVJ COVER - REAR SEAT BRACKET Int Ebony Carpet / LH, For Seat Back / From: AA000001 / To: AA547164	$285.79	1
<63386	LR008328	COVER - REAR SEAT BRACKET	LR008328 COVER - REAR SEAT BRACKET Interior Nutmeg Carpet - LR / LH, For Seat Back / From: AA000001 / To: AA547164	$182.09	1
<63386	LR021548	COVER - REAR SEAT BRACKET	LR021548 COVER - REAR SEAT BRACKET Int Ebony Carpet / LH, For Seat Back / From: AA547165	$238.42	1
<63386	LR021549	COVER - REAR SEAT BRACKET	LR021549 COVER - REAR SEAT BRACKET Interior Nutmeg Carpet - LR / LH, For Seat Back / From: AA547165	$197.14	1
<63386	LR021541	COVER - REAR SEAT BRACKET	LR021541 COVER - REAR SEAT BRACKET Int Ebony Carpet / RH, For Seat Back / From: AA547165	$231.56	1
<63386	LR021542	COVER - REAR SEAT BRACKET	LR021542 COVER - REAR SEAT BRACKET Interior Nutmeg Carpet - LR / RH, For Seat Back / From: AA547165	$197.96	1
<67417	HPH500011PVJ	STRAP - RELEASE	HPH500011PVJ STRAP - RELEASE For Seat Cushion / From: AA000001	$26.35	2
HB1	BTR2710	BOLT IN STOCK	BTR2710 BOLT M10 X 1.5, Torx / From: AA000001 IN STOCK	$3.62	-
HB2	BYG500130	BOLT	BYG500130 BOLT 3rd Row Seat Mounting, M6 X 15 Hex / From: AA000001	$2.36	4
HM1	HZT500011	BUSH	HZT500011 BUSH 3rd Row Seat Mounting, Bushing / From: AA000001	$0.79	4
HM2	HYQ500020	RIVET	HYQ500020 RIVET Bracket, Rivet / From: AA000001	$0.47	2

Rear Seat Frame (Row 3) (With 7 Seat Configuration) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Rear Seat Frame (Row 3) (With 7 Seat Configuration) ((V) FROMAA000001)
