Front Seat Base (Power Seat) (Electric Front Seat Adj Non-Memory) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Front Seat Base (Power Seat) (Electric Front Seat Adj Non-Memory) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
BTR2710 BOLT $3.51 IN STOCK
Photo Part No Description Price (each) Stock
HYG500220 BOLT $19.46 To Order
Photo Part No Description Price (each) Stock
HYG500300 BOLT $0.59 To Order
Photo Part No Description Price (each) Stock
HYQ500030 RIVET $0.47 To Order
Photo Part No Description Price (each) Stock
HHL500160 MOTOR - SEAT ADJUSTER $362.56 To Order
HHL500150 MOTOR - SEAT ADJUSTER $362.56 To Order
Photo Part No Description Price (each) Stock
HFD500090 BRACKET $48.53 To Order
Photo Part No Description Price (each) Stock
YDB500380 SENSOR - BODY WEIGHT - AIRBAG $106.55 To Order
Photo Part No Description Price (each) Stock
HJX500042PVJ MOULDING - SEAT VALANCE $6.60 To Order
HJX500052PVJ MOULDING - SEAT VALANCE $26.14 To Order
Photo Part No Description Price (each) Stock
HJX500062PVJ MOULDING - SEAT VALANCE $25.46 To Order
HJX500072PVJ MOULDING - SEAT VALANCE $25.46 To Order
Photo Part No Description Price (each) Stock
HJX500082PVJ MOULDING - SEAT VALANCE $6.92 To Order
HJX500092PVJ MOULDING - SEAT VALANCE $6.92 To Order
Photo Part No Description Price (each) Stock
HJX500102PVJ MOULDING - SEAT VALANCE $37.74 To Order
HJX500112PVJ MOULDING - SEAT VALANCE $37.74 To Order
Photo Part No Description Price (each) Stock
LR015516 FRAME $1,509.44 To Order
LR013359 FRAME $1,174.00 To Order
LR016240 FRAME $1,174.00 To Order
...and 11 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HFF500012 FRAME $92.91 To Order
Photo Part No Description Price (each) Stock
HHE500030 FRAME $261.98 To Order
HHE500020 FRAME $286.25 To Order
View All

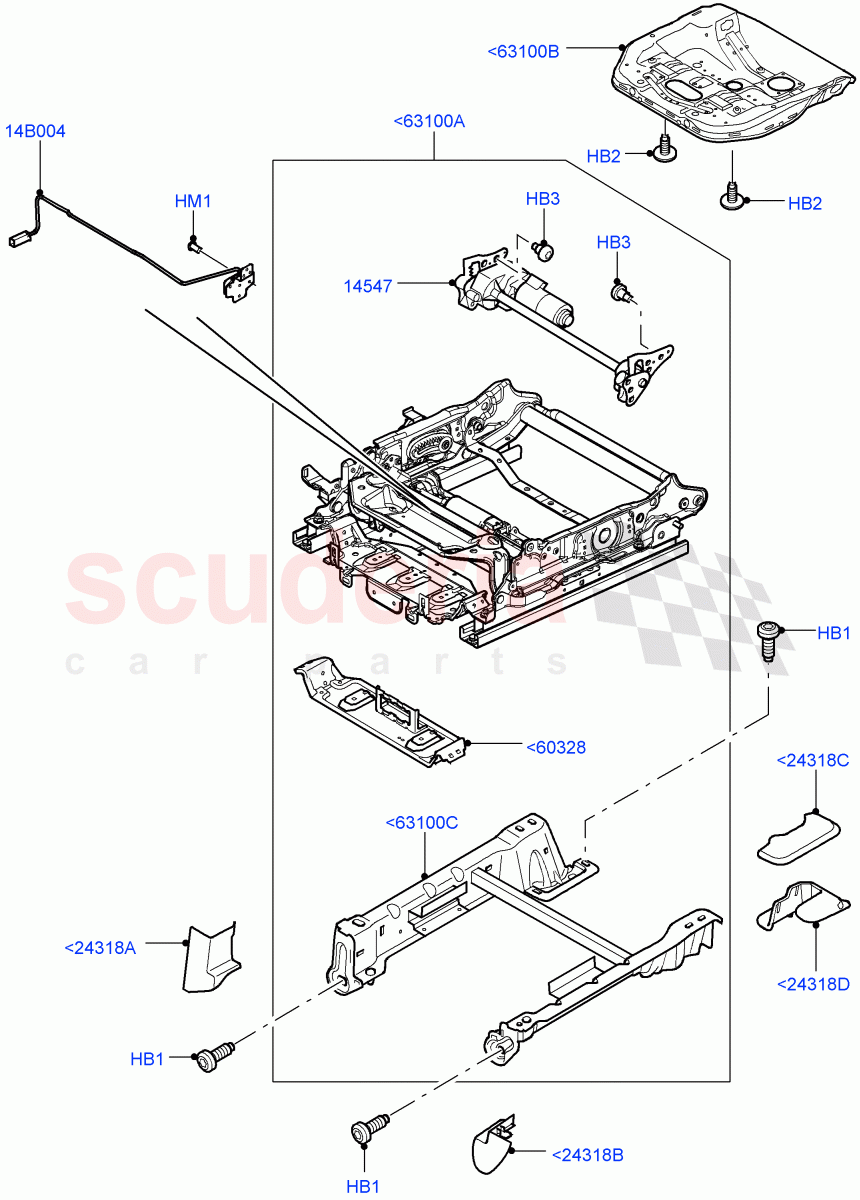

Front Seat Base (Power Seat) (Electric Front Seat Adj Non-Memory) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<24318A HJX500042PVJ
MOULDING - SEAT VALANCE
RH, Front Outer / From: AA000001 		$6.60 1
<24318A HJX500052PVJ
MOULDING - SEAT VALANCE
LH, Front Outer / From: AA000001 		$26.14 1
<24318B HJX500062PVJ
MOULDING - SEAT VALANCE
RH, Front Inner / From: AA000001 		$25.46 1
<24318B HJX500072PVJ
MOULDING - SEAT VALANCE
LH, Front Inner / From: AA000001 		$25.46 1
<24318C HJX500082PVJ
MOULDING - SEAT VALANCE
Rear Outer, RH Seat / From: AA000001 		$6.92 1
<24318C HJX500092PVJ
MOULDING - SEAT VALANCE
LH Seat, Rear Outer / From: AA000001 		$6.92 1
<24318D HJX500102PVJ
MOULDING - SEAT VALANCE
Inner, LH Seat, Rear / From: AA000001 		$37.74 1
<24318D HJX500112PVJ
MOULDING - SEAT VALANCE
Inner, Rear, RH Seat / From: AA000001 		$37.74 1
<60328 HFD500090
BRACKET
With Relay Mounting Bracket / From: AA000001 		$48.53 1
<63100A LR015516
FRAME
(+)"CDN/MEX/USA", LHD / RH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA000001 / To: AA531558 		$1,509.44 1
<63100A LR013359
FRAME
(-)"CDN/MEX/USA", LHD / RH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA000001 / To: AA531558 		$1,174.00 1
<63100A LR016240
FRAME
Electric Front Seat Adj Non-Memory, LHD / LH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA000001 / To: AA531558 		$1,174.00 1
<63100A LR023766
FRAME
(+)"CDN/MEX/USA", LHD / RH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA531559 / To: CA608102 		$1,477.01 1
<63100A LR023767
FRAME
(-)"CDN/MEX/USA", LHD / RH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA531559 / To: CA608102 		$1,474.18 1
<63100A LR023771
FRAME
Electric Front Seat Adj Non-Memory, LHD / LH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA531559 / To: CA608102 		$1,614.73 1
<63100A LR023770
FRAME
RHD / LH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA531559 / To: CA608102 		$1,612.70 1
<63100A LR023769
FRAME
Electric Front Seat Adj Non-Memory, RHD / RH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: BA000001 / To: CA608102 		$1,513.54 1
<63100A LR032383
FRAME - SEAT
(+)"CDN/MEX/USA", LHD / RH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: CA608103 		$1,401.67 1
<63100A LR032385
FRAME - SEAT
(-)"CDN/MEX/USA", LHD / RH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: CA608103 		$1,794.15 1
<63100A LR032387
FRAME - SEAT
RHD / LH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: CA608103 		$1,228.45 1
<63100A LR032388
FRAME - SEAT
Electric Front Seat Adj Non-Memory, LHD / LH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: CA608103 		$1,105.92 1
<63100A LR039438
FRAME - SEAT
Electric Front Seat Adj Non-Memory, RHD / RH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: CA608103 		$1,158.34 1
<63100A LR013361
FRAME
RHD / LH, Please Use Lower Level Assembly Parts Where Available For Warranty / From: AA000001 / To: AA531558 		$1,174.00 1
<63100B HFF500012
FRAME
Not For Use With NAS Passenger Seat / From: AA000001 		$92.91 2
<63100C HHE500030
FRAME
LH / From: AA000001 		$261.98 1
<63100C HHE500020
FRAME
RH / From: AA000001 		$286.25 1
HB1 BTR2710
BOLT
M10 X 1.5, Torx / From: AA000001
IN STOCK 		$3.51 -
HB2 HYG500220
BOLT
M8 / From: AA000001 		$19.46 8
HB3 HYG500300
BOLT
Support / From: AA000001 		$0.59 4
HM1 HYQ500030
RIVET
Rivet / From: AA000001 		$0.47 2
14B004 YDB500380
SENSOR - BODY WEIGHT - AIRBAG
Seat Position Sensor - Driver Air Bag / From: AA000001 		$106.55 1
14547 HHL500160
MOTOR - SEAT ADJUSTER
For Passengers Side, Tilt Adjustment, With Cushion Tilt / From: AA000001 		$362.56 1
14547 HHL500150
MOTOR - SEAT ADJUSTER
For Drivers Side, Tilt Adjustment, With Cushion Tilt / From: AA000001 		$362.56 1
