Heater Hoses (Front) (Lion Diesel 2.7 V6 (140Kw)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Heater Hoses (Front) (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108167 SCREW $0.78 To Order
Photo Part No Description Price (each) Stock
PEK500080 CLIP - DOUBLE $10.78 To Order
Photo Part No Description Price (each) Stock
FS106127L SCREW $2.05 To Order
Photo Part No Description Price (each) Stock
LR014278 SHIELD $10.58 To Order
Photo Part No Description Price (each) Stock
LR018781 BRACKET $104.14 To Order
Photo Part No Description Price (each) Stock
WAP500380 TUBE - EGR VALVE TO EXHAUST MANIFLD $249.65 To Order
Photo Part No Description Price (each) Stock
LR013829 HOSE AND CONNECTOR $125.31 To Order
Photo Part No Description Price (each) Stock
LR013831 HOSE $184.33 To Order
Photo Part No Description Price (each) Stock
JHB501670 HOSE AND CONNECTOR $398.79 To Order
Photo Part No Description Price (each) Stock
JHB501690 HOSE - VENT $623.89 To Order
View All

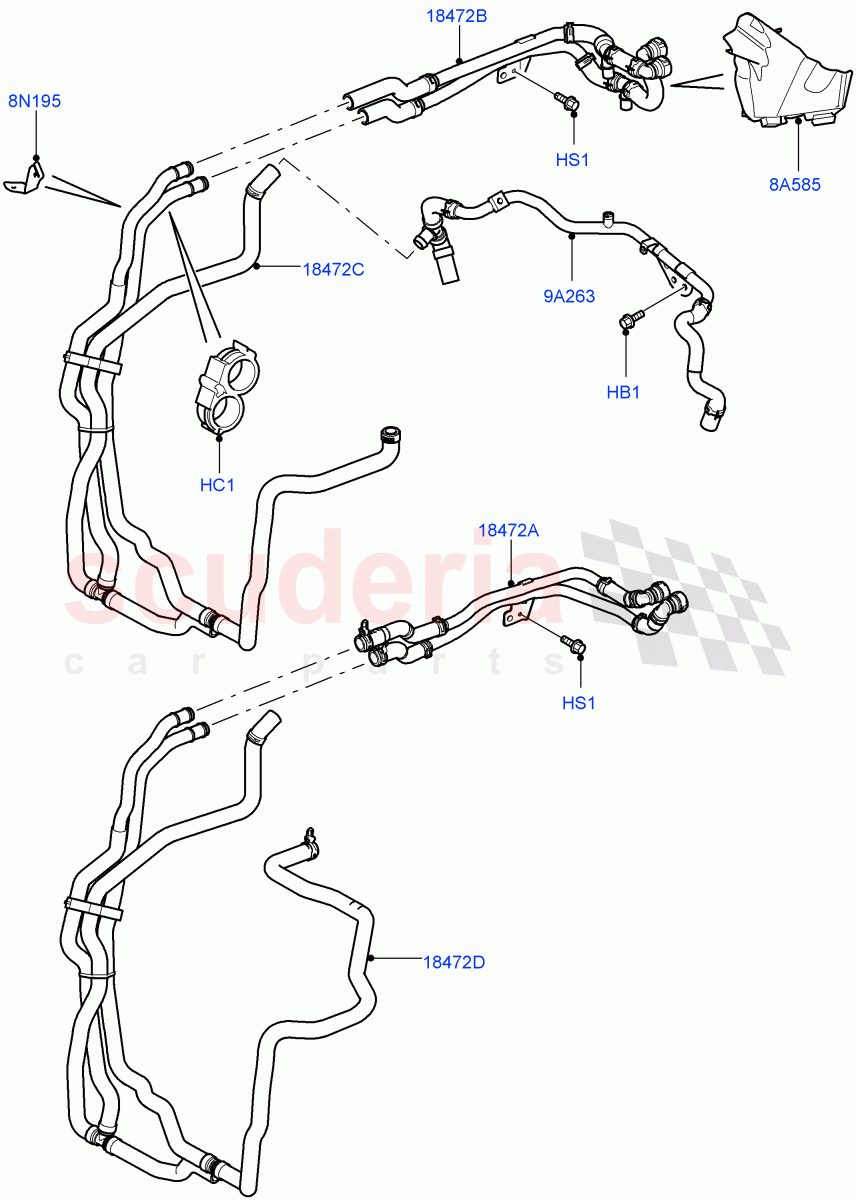

Heater Hoses (Front) (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108167
SCREW
M8 X 16MM / From: AA000001 		$0.78 2
HC1 PEK500080
CLIP - DOUBLE
Double / From: AA000001 		$10.78 1
HS1 FS106127L
SCREW
M6 x 12MM / From: AA000001 		$2.05 1
8A585 LR014278
SHIELD
From: AA000001 		$10.58 1
8N195 LR018781
BRACKET
From: AA000001 		$104.14 1
9A263 WAP500380
TUBE - EGR VALVE TO EXHAUST MANIFLD
Cooled EGR, Outlet / From: AA000001 		$249.65 1
18472A LR013829
HOSE AND CONNECTOR
Less Rear Seat Climate Control / To Heater Matrix / From: AA000001 		$125.31 1
18472B LR013831
HOSE
With Rear Seat Climate Control / To Heater Matrix / From: AA000001 		$184.33 1
18472C JHB501670
HOSE AND CONNECTOR
With Fuel Fired Heater / Thermostat Housing To Heater Tube / From: AA000001 		$398.79 1
18472D JHB501690
HOSE - VENT
With Fresh Air Heater / Thermostat Housing To Heater Tube / From: AA000001 		$623.89 1
