Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Air Conditioning System (Front) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FYG500040 SCREW $0.71 To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
LR054871 O-RING $3.32 To Order
Photo Part No Description Price (each) Stock
LR044466 O-RING $4.34 To Order
Photo Part No Description Price (each) Stock
LR054870 O-RING $3.55 To Order
Photo Part No Description Price (each) Stock
FS106256 SCREW $0.43 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.47 IN STOCK
Photo Part No Description Price (each) Stock
LR052188 TUBE - COMPRESSOR LINE $200.79 To Order
Photo Part No Description Price (each) Stock
LR013846 BRACKET $4.96 To Order
Photo Part No Description Price (each) Stock
LR010849 BRACKET $8.02 To Order
Photo Part No Description Price (each) Stock
LR052189 TUBE - COMPRESSOR DELIVERY $200.79 To Order
LR052190 TUBE - COMPRESSOR DELIVERY $168.63 To Order
Photo Part No Description Price (each) Stock
LR050912 TUBE- A/C EVAPORATOR INLET & OUTLET $198.00 IN STOCK
Photo Part No Description Price (each) Stock
LR050913 TUBE- A/C EVAPORATOR INLET & OUTLET $134.89 To Order
Photo Part No Description Price (each) Stock
LR052192 HOSE - AIR CONDITIONING $281.06 To Order
LR052193 HOSE - AIR CONDITIONING $168.63 To Order
Photo Part No Description Price (each) Stock
LR013850 CLIP $6.06 To Order
Photo Part No Description Price (each) Stock
JTE000010 SWITCH $102.05 To Order
Photo Part No Description Price (each) Stock
LR023245 CAP $23.51 To Order
Photo Part No Description Price (each) Stock
LR023246 CAP $23.51 To Order
Photo Part No Description Price (each) Stock
LR031797 O-RING $8.50 To Order
Photo Part No Description Price (each) Stock
JUU500010 O-RING $9.88 To Order
Photo Part No Description Price (each) Stock
JUU500030 O-RING $9.88 To Order
View All

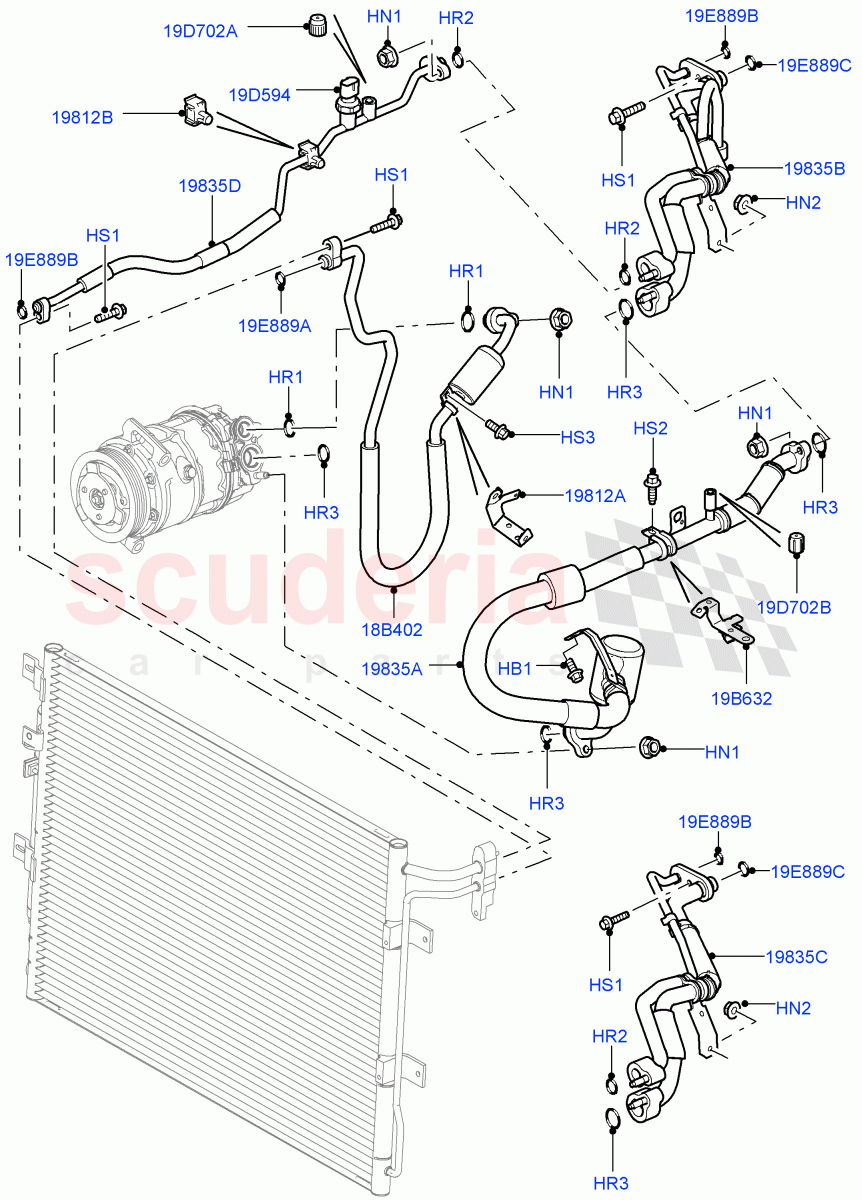

Air Conditioning System (Front) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FYG500040
SCREW
M8 X 16MM / From: EA000001 		$0.71 1
HN1 FN108046
NUT - HEX.
Hexagonal Head, M8 / From: EA000001 		$1.97 4
HN2 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: EA000001
IN STOCK 		$1.47 1
HR1 LR054871
O-RING
10.82MM X 1.78MM / From: EA000001 		$3.32 2
HR2 LR044466
O-RING
7.65 X 1.78 / From: EA000001 		$4.34 2
HR3 LR054870
O-RING
16.5 X 1.78MM / From: EA000001 		$3.55 4
HS1 FS106256
SCREW
M6 x 25MM / From: EA000001 		$0.43 3
HS2 FS106166
SCREW
Hexagonal Head, M6 X 16MM / From: EA000001
IN STOCK 		$1.24 1
HS3 RYG500220
SCREW
Hexagonal Head, M6 X 20MM / From: EA000001
IN STOCK 		$3.47 1
18B402 LR052188
TUBE - COMPRESSOR LINE
Compressor To Condenser, Includes O-Rings / From: EA000001 		$200.79 1
19B632 LR013850
CLIP
From: EA000001 		$6.06 1
19D594 JTE000010
SWITCH
Pressure / From: EA000001 		$102.05 1
19D702A LR023245
CAP
From: EA000001 		$23.51 1
19D702B LR023246
CAP
From: EA000001 		$23.51 1
19E889A LR031797
O-RING
With Rear Seat Climate Control / 10.6 x 2.4MM / From: EA000001 		$8.50 2
19E889B JUU500010
O-RING
From: EA000001 		$9.88 2
19E889C JUU500030
O-RING
From: EA000001 		$9.88 1
19812A LR013846
BRACKET
From: EA000001 		$4.96 1
19812B LR010849
BRACKET
From: EA000001 		$8.02 1
19835A LR052189
TUBE - COMPRESSOR DELIVERY
Air Conditioning Refrigerant-R134A / Air Conditioning Evaporator To Compressor, Includes O-Rings / From: EA000001 		$200.79 1
19835A LR052190
TUBE - COMPRESSOR DELIVERY
Air Con Refrigerant-HF01234YF / Air Conditioning Evaporator To Compressor, Includes O-Rings / From: EA000001 		$168.63 1
19835B LR050912
TUBE- A/C EVAPORATOR INLET & OUTLET
With Rear Seat Climate Control / Includes O-Rings, To Evaporator / From: EA000001
IN STOCK 		$198.00 1
19835C LR050913
TUBE- A/C EVAPORATOR INLET & OUTLET
Less Rear Seat Climate Control / Includes O-Rings, To Evaporator / From: EA000001 		$134.89 1
19835D LR052192
HOSE - AIR CONDITIONING
Air Conditioning Refrigerant-R134A / Condenser To Evaporator, Includes O-Rings / From: EA000001 		$281.06 1
19835D LR052193
HOSE - AIR CONDITIONING
Air Con Refrigerant-HF01234YF / Condenser To Evaporator, Includes O-Rings / From: EA000001 		$168.63 1
