Electrical Wiring - Engine And Dash (Main Harness) ((V) Fromba000001, (V) Toba999999)

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Electrical Wiring - Engine And Dash (Main Harness) ((V) FROMBA000001, (V) TOBA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR020707 WIRING $4,098.66 To Order
LR020708 WIRING $4,473.86 To Order
LR020709 WIRING $5,299.34 To Order
...and 44 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR019608 WIRE $452.40 To Order
LR019609 WIRE ASSY $252.46 To Order
Photo Part No Description Price (each) Stock
LR023966 WIRING - REPAIR $238.12 To Order
View All

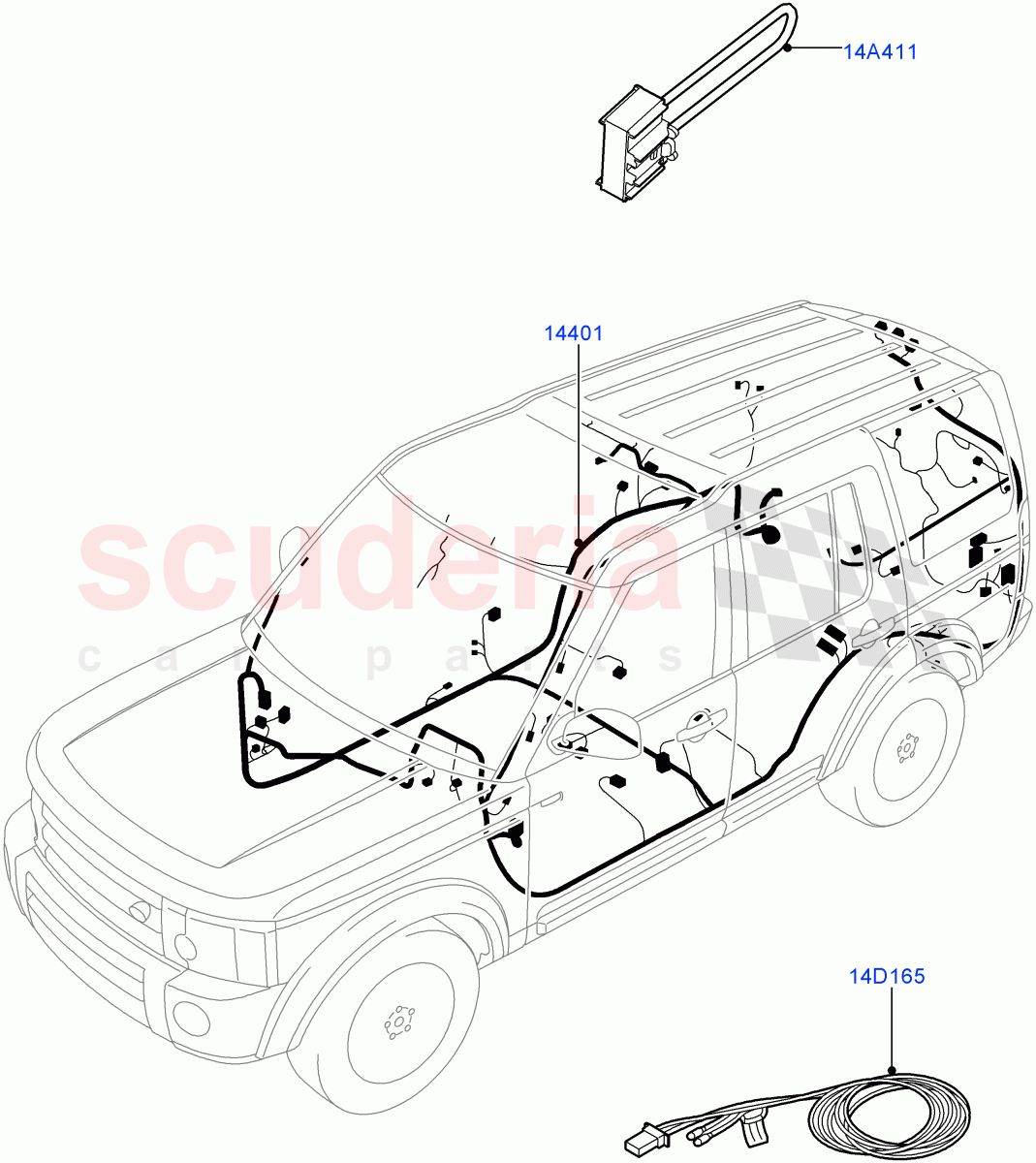

Electrical Wiring - Engine And Dash (Main Harness) ((V) FROMBA000001, (V) TOBA999999) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
14A411 LR019608
WIRE
With Keyless Entry/Start - Passive / From: BA000001 		$452.40 1
14A411 LR019609
WIRE ASSY
With Keyless Start / From: BA000001 		$252.46 1
14D165 LR023966
WIRING - REPAIR
From Connector C3283 To Connector C0256 / From: BA000001 		$238.12 1
14401 LR020707
WIRING
(+)"CDN/MEX/USA", Keyless Entry/Start - Passive, LHD, Midline Sound System, With Personal Telephone Integration / From: BA000001 		$4,098.66 1
14401 LR020708
WIRING
LHD, Lion Diesel 2.7 V6 (140KW), Rear View Camera-Fixed, With Premium Sound System / From: BA000001 		$4,473.86 1
14401 LR020709
WIRING
(-)"CDN/MEX/USA", 5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, Surround Camera System, With Premium Sound System / From: BA000001 		$5,299.34 1
14401 LR020710
WIRING
(-)"CDN/MEX/USA", Cologne V6 4.0 EFI (SOHC), LHD, Less Front Camera, With Premium Sound System / From: BA000001 		$4,281.57 1
14401 LR020712
WIRING
Lion Diesel 2.7 V6 (140KW), RHD, Standard Audio (Base), With Standard Duty Coil Spring Susp / From: BA000001 		$3,688.71 1
14401 LR020713
WIRING
Less Seat Temperature Control, Lion Diesel 2.7 V6 (140KW), RHD, Standard Audio (Base), With Four Corner Air Suspension / From: BA000001 		$3,765.40 1
14401 LR020954
WIRING
Lion Diesel 2.7 V6 (140KW), Midline Sound System, RHD, With Personal Telephone Integration, With Standard Duty Coil Spring Susp / From: BA000001 		$3,851.45 1
14401 LR020711
WIRING
3.0L 24V DOHC V6 TC Diesel, Midline Sound System, RHD, With Four Corner Air Suspension, With Heated Seats - Front/Rear, With Personal Telephone Integration / From: BA000001 		$4,289.98 1
14401 LR020714
WIRING
Heated Seats - Drivers/Passengers, Lion Diesel 2.7 V6 (140KW), Midline Sound System, RHD, With Four Corner Air Suspension, With Personal Telephone Integration / From: BA000001 		$3,943.13 1
14401 LR020715
WIRING
5.0L OHC SGDI NA V8 Petrol - AJ133, Midline Sound System, RHD, With Personal Telephone Integration / From: BA000001 		$4,343.37 1
14401 LR020716
WIRING
3.0L 24V DOHC V6 TC Diesel, Hi ICE Branded, RHD, Surround Camera System / From: BA000001 		$5,074.53 1
14401 LR020717
WIRING
Electric Front Seat Adj Drv Memory, Hi ICE Branded, Lion Diesel 2.7 V6 (140KW), RHD, Rear View Camera-Fixed / From: BA000001 		$3,598.04 1
14401 LR020718
WIRING
5.0L OHC SGDI NA V8 Petrol - AJ133, Hi ICE Branded, RHD, Surround Camera System / From: BA000001 		$5,097.93 1
14401 LR020719
WIRING
5.0L OHC SGDI NA V8 Petrol - AJ133, Hi ICE Branded, Less Front Camera, RHD / From: BA000001 		$4,311.81 1
14401 LR020720
WIRING
3.0L 24V DOHC V6 TC Diesel, RHD, Surround Camera System, With Premium Sound System / From: BA000001 		$4,677.41 1
14401 LR020721
WIRING
3.0L 24V DOHC V6 TC Diesel, Keyless Entry/Start - Passive, Less Front Camera, RHD, With Premium Sound System / From: BA000001 		$3,932.33 1
14401 LR020722
WIRING
5.0L OHC SGDI NA V8 Petrol - AJ133, RHD, Surround Camera System, With Premium Sound System / From: BA000001 		$5,191.17 1
14401 LR020723
WIRING
5.0L OHC SGDI NA V8 Petrol - AJ133, Less Front Camera, RHD, With Premium Sound System / From: BA000001 		$4,209.64 1
14401 LR020724
WIRING
(+)"CDN/MEX/USA", LHD, Midline Sound System, With Keyless Start, With Personal Telephone Integration / From: BA000001 		$4,107.21 1
14401 LR020725
WIRING
3.0L 24V DOHC V6 TC Diesel, Hi ICE Branded, LHD, Less Camera System / From: BA000001 		$3,968.08 1
14401 LR020726
WIRING
3.0L 24V DOHC V6 TC Diesel, LHD, Less Camera System, With Premium Sound System / From: BA000001 		$4,266.00 1
14401 LR020727
WIRING
(+)"CDN/MEX/USA", Hi ICE Branded, LHD, Surround Camera System / From: BA000001 		$5,240.21 1
14401 LR020728
WIRING
3.0L 24V DOHC V6 TC Diesel, Hi ICE Branded, Less Camera System, Manual Front Seat Adj Driver & Pass, RHD / From: BA000001 		$3,951.78 1
14401 LR020729
WIRING
Less Camera System, Lion Diesel 2.7 V6 (140KW), RHD, With Keyless Start, With Premium Sound System / From: BA000001 		$3,545.73 1
14401 LR020730
WIRING
3.0L 24V DOHC V6 TC Diesel, LHD, Less Rear Seat Climate Control, Standard Audio (Base), With Four Corner Air Suspension / From: BA000001 		$3,752.88 1
14401 LR020731
WIRING
Less Seat Temperature Control, Lion Diesel 2.7 V6 (140KW), RHD, Standard Audio (Base), With Four Corner Air Suspension / From: BA000001 		$3,558.68 1
14401 LR020732
WIRING
(+)"CDN/MEX/USA", Hi ICE Branded, LHD, Less Front Camera / From: BA000001 		$4,185.29 1
14401 LR020733
WIRING
(+)"CDN/MEX/USA", LHD, Less Telephone, Midline Sound System / From: BA000001 		$3,786.97 1
14401 LR020734
WIRING
LHD, Less Telephone, Lion Diesel 2.7 V6 (140KW), Midline Sound System, With Standard Duty Coil Spring Susp / From: BA000001 		$4,029.87 1
14401 LR020735
WIRING
LHD, Less Telephone, Lion Diesel 2.7 V6 (140KW), Midline Sound System, With Four Corner Air Suspension / From: BA000001 		$4,025.15 1
14401 LR020736
WIRING
(-)"CDN/MEX/USA", 5.0L OHC SGDI NA V8 Petrol - AJ133, LHD, Less Telephone, Midline Sound System / From: BA000001 		$5,222.73 1
14401 LR020737
WIRING
Less Telephone, Lion Diesel 2.7 V6 (140KW), Midline Sound System, RHD, With Standard Duty Coil Spring Susp / From: BA000001 		$3,833.71 1
14401 LR020738
WIRING
3.0L 24V DOHC V6 TC Diesel, Less Telephone, Midline Sound System, RHD, With Four Corner Air Suspension / From: BA000001 		$4,839.38 1
14401 LR020739
WIRING
5.0L OHC SGDI NA V8 Petrol - AJ133, Less Telephone, Midline Sound System, RHD / From: BA000001 		$4,325.61 1
14401 LR020740
WIRING
(+)"CDN/MEX/USA", LHD, Surround Camera System, With Premium Sound System / From: BA000001 		$4,677.41 1
14401 LR020741
WIRING
(+)"CDN/MEX/USA", LHD, Less Front Camera, With Premium Sound System / From: BA000001 		$3,310.77 1
14401 LR020742
WIRING
LHD, Less Telephone, Lion Diesel 2.7 V6 (140KW), Standard Audio (Base), With Standard Duty Coil Spring Susp / From: BA000001 		$3,514.92 1
14401 LR020743
WIRING
LHD, Lion Diesel 2.7 V6 (140KW), Standard Audio (Base), Tyre Pressure Sensors - 433 MHZ, With Four Corner Air Suspension / From: BA000001 		$4,062.02 1
14401 LR020744
WIRING
LHD, Lion Diesel 2.7 V6 (140KW), Midline Sound System, With Personal Telephone Integration, With Standard Duty Coil Spring Susp / From: BA000001 		$4,047.58 1
14401 LR020745
WIRING
LHD, Lion Diesel 2.7 V6 (140KW), Manual Front Seat Adj Driver & Pass, Midline Sound System, With Four Corner Air Suspension, With Personal Telephone Integration / From: BA000001 		$4,029.39 1
14401 LR020746
WIRING
LHD, Lion Diesel 2.7 V6 (140KW), Manual Front Seat Adj Driver & Pass, Midline Sound System, With Four Corner Air Suspension, With Personal Telephone Integration / From: BA000001 		$4,006.05 1
14401 LR020747
WIRING
(-)"CDN/MEX/USA", Cologne V6 4.0 EFI (SOHC), LHD, Midline Sound System, With Personal Telephone Integration / From: BA000001 		$4,192.64 1
14401 LR020748
WIRING
Hi ICE Branded, LHD, Lion Diesel 2.7 V6 (140KW), Surround Camera System / From: BA000001 		$5,154.08 1
14401 LR020749
WIRING
3.0L 24V DOHC V6 TC Diesel, Hi ICE Branded, LHD, Rear View Camera-Fixed / From: BA000001 		$3,968.08 1
14401 LR020750
WIRING
(-)"CDN/MEX/USA", Cologne V6 4.0 EFI (SOHC), Hi ICE Branded, LHD, Surround Camera System / From: BA000001 		$5,236.20 1
14401 LR020751
WIRING
(-)"CDN/MEX/USA", 5.0L OHC SGDI NA V8 Petrol - AJ133, Hi ICE Branded, LHD, Less Front Camera / From: BA000001 		$3,949.34 1
14401 LR020752
WIRING
LHD, Lion Diesel 2.7 V6 (140KW), Surround Camera System, With Premium Sound System / From: BA000001 		$5,025.12 1
