Battery And Mountings ((V) Fromaa000001, (V) Toda999999)

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Battery And Mountings ((V) FROMAA000001, (V) TODA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
XYG000051 BOLT - FLANGED HEX. $4.65 To Order
XYG500061 BOLT - BATTERY CLAMP $12.10 To Order
Photo Part No Description Price (each) Stock
LR015121 INSULATOR - BATTERY BOX SUPPORT $10.65 To Order
LR015122 INSULATOR - BATTERY BOX SUPPORT $12.37 To Order
LR072418 INSULATOR - BATTERY BOX SUPPORT $11.89 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
ADU7048 NUT - FLANGED $13.40 To Order
Photo Part No Description Price (each) Stock
AL608031 NUT - SPRING $0.52 To Order
Photo Part No Description Price (each) Stock
YYB500010PMA PLUG - BLANKING $2.44 To Order
Photo Part No Description Price (each) Stock
LR018608 BATTERY $247.76 To Order
LR018609 BATTERY $308.16 To Order
LR030213 BATTERY $236.50 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR018528 COVER - BATTERY $95.46 To Order
LR018527 COVER - BATTERY $95.46 To Order
Photo Part No Description Price (each) Stock
LR015120 COVER - BATTERY BOX $27.06 To Order
LR019212 INSULATOR - AIR VENT $27.27 To Order
LR019213 INSULATOR - AIR VENT $27.27 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR019012 HEAT SHIELD - BATTERY $30.52 To Order
Photo Part No Description Price (each) Stock
YJF500100 BRACKET - BATTERY HOLD DOWN $36.02 To Order
YJF500110 BRACKET - BATTERY HOLD DOWN $34.02 To Order
Photo Part No Description Price (each) Stock
LR019468 PAD - ANTI-RATTLE $7.91 To Order
LR053663 PAD - ANTI-RATTLE $10.83 To Order
Photo Part No Description Price (each) Stock
LR013547 BASE PANEL - BATTERY BOX $50.37 To Order
LR013546 BASE PANEL - BATTERY BOX $38.94 To Order
LR019215 BASE PANEL - BATTERY BOX $81.02 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
DWM500031 BASE PANEL - BATTERY BOX $64.51 To Order
DWM500021 BASE PANEL - BATTERY BOX $64.51 To Order
View All

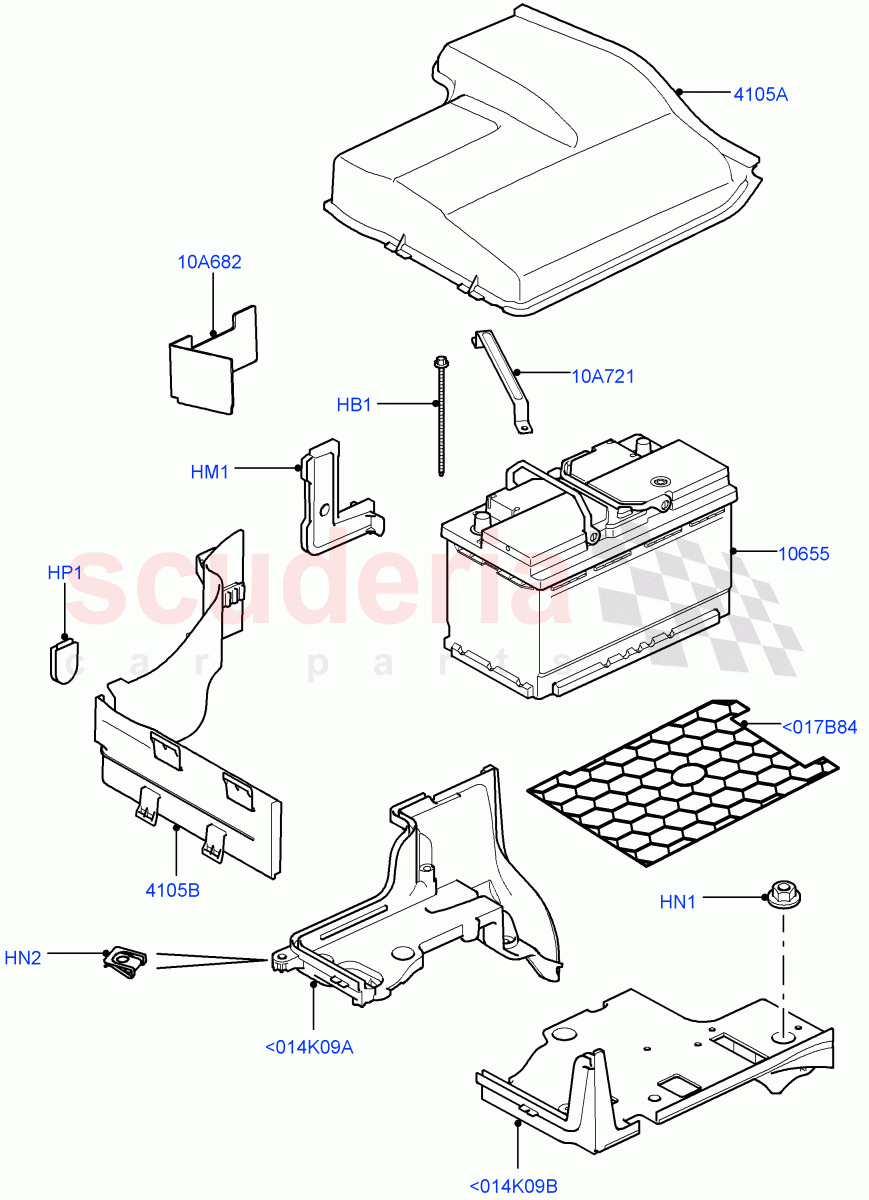

Battery And Mountings ((V) FROMAA000001, (V) TODA999999) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<014K09A LR013547
BASE PANEL - BATTERY BOX
With Battery Insulation / LH / From: AA000001 		$50.37 1
<014K09A LR013546
BASE PANEL - BATTERY BOX
(-)"GCC", Less Battery Insulation / RH / From: AA000001 / To: AA515850 		$38.94 1
<014K09A LR019215
BASE PANEL - BATTERY BOX
(+)"GCC", With Battery Insulation / RH / From: AA000001 		$81.02 1
<014K09A LR019934
BASE PANEL - BATTERY BOX
(-)"GCC", Less Battery Insulation / RH / From: AA515851 		$38.94 1
<014K09B DWM500031
BASE PANEL - BATTERY BOX
LH / From: AA000001 		$64.51 1
<014K09B DWM500021
BASE PANEL - BATTERY BOX
RH / From: AA000001 		$64.51 1
<017B84 LR019468
PAD - ANTI-RATTLE
With Battery Insulation / From: AA000001 / To: CA999999 		$7.91 1
<017B84 LR053663
PAD - ANTI-RATTLE
With Battery Insulation / From: DA000001 		$10.83 1
HB1 XYG000051
BOLT - FLANGED HEX.
180MM, Clamp, M6, Outer / From: AA000001 		$4.65 1
HB1 XYG500061
BOLT - BATTERY CLAMP
147MM, Clamp, Inner, M6 / From: AA000001 		$12.10 1
HM1 LR015121
INSULATOR - BATTERY BOX SUPPORT
Battery And Mountings / From: AA000001 / To: FA734417 		$10.65 1
HM1 LR015122
INSULATOR - BATTERY BOX SUPPORT
Battery And Mountings / From: EA000001 / To: FA734417 		$12.37 1
HM1 LR072418
INSULATOR - BATTERY BOX SUPPORT
Battery And Mountings / From: FA734418 		$11.89 1
HM1 LR071638
INSULATOR - BATTERY BOX SUPPORT
Battery And Mountings / From: FA734418 		$11.89 1
HN1 ADU7048
NUT - FLANGED
M8 / From: AA000001 		$13.40 1
HN2 AL608031
NUT - SPRING
RH, Nut "U" Spring / From: AA000001 		$0.52 1
HP1 YYB500010PMA
PLUG - BLANKING
Blanking / From: AA000001 		$2.44 1
10A682 LR019012
HEAT SHIELD - BATTERY
(+)"GCC", With Battery Insulation / From: AA000001 		$30.52 1
10A721 YJF500100
BRACKET - BATTERY HOLD DOWN
LHD / From: AA000001 		$36.02 1
10A721 YJF500110
BRACKET - BATTERY HOLD DOWN
RHD / From: AA000001 		$34.02 1
4105A LR018528
COVER - BATTERY
LH / From: AA000001 		$95.46 1
4105A LR018527
COVER - BATTERY
RH / From: AA000001 		$95.46 1
4105B LR015120
COVER - BATTERY BOX
LH / From: AA000001 		$27.06 1
4105B LR019212
INSULATOR - AIR VENT
(+)"GCC", Cologne V6 4.0 EFI (SOHC), With Battery Insulation / RH, With Spring Nut / From: AA000001 / To: BA568562 		$27.27 1
4105B LR019213
INSULATOR - AIR VENT
(+)"GCC", 5.0L OHC SGDI NA V8 Petrol - AJ133, With Battery Insulation / RH, With Clip / From: AA000001 		$27.27 1
4105B LR018679
COVER - BATTERY BOX
(-)"GCC", 5.0L OHC SGDI NA V8 Petrol - AJ133, Less Battery Insulation / RH, With Clip / From: AA000001 / To: AA538857 		$32.44 1
4105B LR015119
COVER - BATTERY BOX
(-)"GCC", Less Battery Insulation, Lion Diesel 2.7 V6 (140KW) / RH, With Spring Nut / From: AA000001 / To: AA538857 		$27.27 1
4105B LR023481
COVER - BATTERY BOX
(-)"GCC", Cologne V6 4.0 EFI (SOHC), Less Battery Insulation / RH, With Spring Nut / From: AA538858 		$27.27 1
4105B LR023483
COVER - BATTERY BOX
(-)"GCC", 5.0L OHC SGDI NA V8 Petrol - AJ133, Less Battery Insulation / RH, With Clip / From: AA538858 		$35.30 1
4105B LR023484
COVER - BATTERY BOX
(+)"GCC", 5.0L OHC SGDI NA V8 Petrol - AJ133, With Battery Insulation / RH, With Clip / From: AA538858 		$27.27 1
4105B LR023482
COVER - BATTERY BOX
(+)"GCC", Cologne V6 4.0 EFI (SOHC), With Battery Insulation / RH, With Spring Nut / From: BA568563 		$27.27 1
10655 LR018608
BATTERY
Cologne V6 4.0 EFI (SOHC), With H7 Battery / 12V-80AH, 700A, Flooded Battery / From: AA000001 / To: BA587521 		$247.76 1
10655 LR018609
BATTERY
3.0L 24V DOHC V6 TC Diesel, 800 Cold Cranking Ampheres / 90 AH, 950A, Flooded Battery / From: AA000001 / To: BA572501 		$308.16 1
10655 LR030213
BATTERY
Lion Diesel 2.7 V6 (140KW) / 90 AH, 950A, Flooded Battery / From: BA572502 / To: BA596276 		$236.50 1
10655 LR032354
BATTERY
5.0L OHC SGDI NA V8 Petrol - AJ133, With H7 Battery / 12V-80AH, 700A, Flooded Battery / From: BA587522 / To: CA617875 		$245.03 1
10655 LR032260
BATTERY
Lion Diesel 2.7 V6 (140KW) / 850 Amp, 90 AH, AGM(Absorbed Glass Mat) / From: BA596277 / To: DA652955 		$419.64 1
10655 LR038128
BATTERY
5.0L OHC SGDI NA V8 Petrol - AJ133, With H7 Battery / 12V-80AH, 700A / From: CA617876 		$228.38 1
10655 LR033179
BATTERY
3.0 V6 Diesel, 800 Cold Cranking Ampheres / 850 Amp, 90 AH, AGM(Absorbed Glass Mat) / From: DA652956 		$397.86 1
10655 LR104508
Battery
12V, 720 Amp, Flooded Battery, H7, USA Locally Sourced From Interstate Only - Interstate Part Number MTP-94R/H7 / To: CA999999 		$179.06 1
