Cylinder Head (Cologne V6 4.0 Efi (Sohc)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Cylinder Head (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1031404 BOLT $0.72 To Order
Photo Part No Description Price (each) Stock
4357433 BOLT AND WASHER - HEX.HEAD $0.76 To Order
Photo Part No Description Price (each) Stock
3902863 BOLT - HEX. HEAD - FLANGED $0.76 To Order
4744021 BOLT $0.72 To Order
Photo Part No Description Price (each) Stock
4413744 SCREW $2.08 To Order
Photo Part No Description Price (each) Stock
4537594 STUD $2.69 To Order
Photo Part No Description Price (each) Stock
LR000396 Retainer Enquire To Order
Photo Part No Description Price (each) Stock
4068468 PLUG - ENGINE $0.97 To Order
Photo Part No Description Price (each) Stock
LR006057 CYLINDER HEAD $1,169.75 To Order
LR006058 CYLINDER HEAD $1,169.75 To Order
Photo Part No Description Price (each) Stock
LR003548 GASKET - CYLINDER HEAD $63.37 To Order
LR003549 GASKET - CYLINDER HEAD $63.37 To Order
Photo Part No Description Price (each) Stock
4438257 VALVE - EXHAUST $10.42 To Order
Photo Part No Description Price (each) Stock
4438258 VALVE - INLET $6.22 To Order
Photo Part No Description Price (each) Stock
4397912 SPRING - VALVE $11.10 To Order
Photo Part No Description Price (each) Stock
LR004433 COLLET - VALVE SPRING RETAINER $17.18 To Order
Photo Part No Description Price (each) Stock
LR003909 ARM - VALVE ROCKER $95.97 To Order
Photo Part No Description Price (each) Stock
1025374 SEAL - VALVE STEM $1.05 To Order
Photo Part No Description Price (each) Stock
4345510 BOLT - HEX.HEAD $3.41 To Order
Photo Part No Description Price (each) Stock
1042848 BOLT - CYLINDER HEAD $14.70 To Order
Photo Part No Description Price (each) Stock
1025376 RETAINER - VALVE SPRING $0.75 To Order
Photo Part No Description Price (each) Stock
1025392 ADJUSTER $12.02 To Order
Photo Part No Description Price (each) Stock
4558817 CAP $0.77 To Order
Photo Part No Description Price (each) Stock
4558818 CAP $1.04 To Order
View All

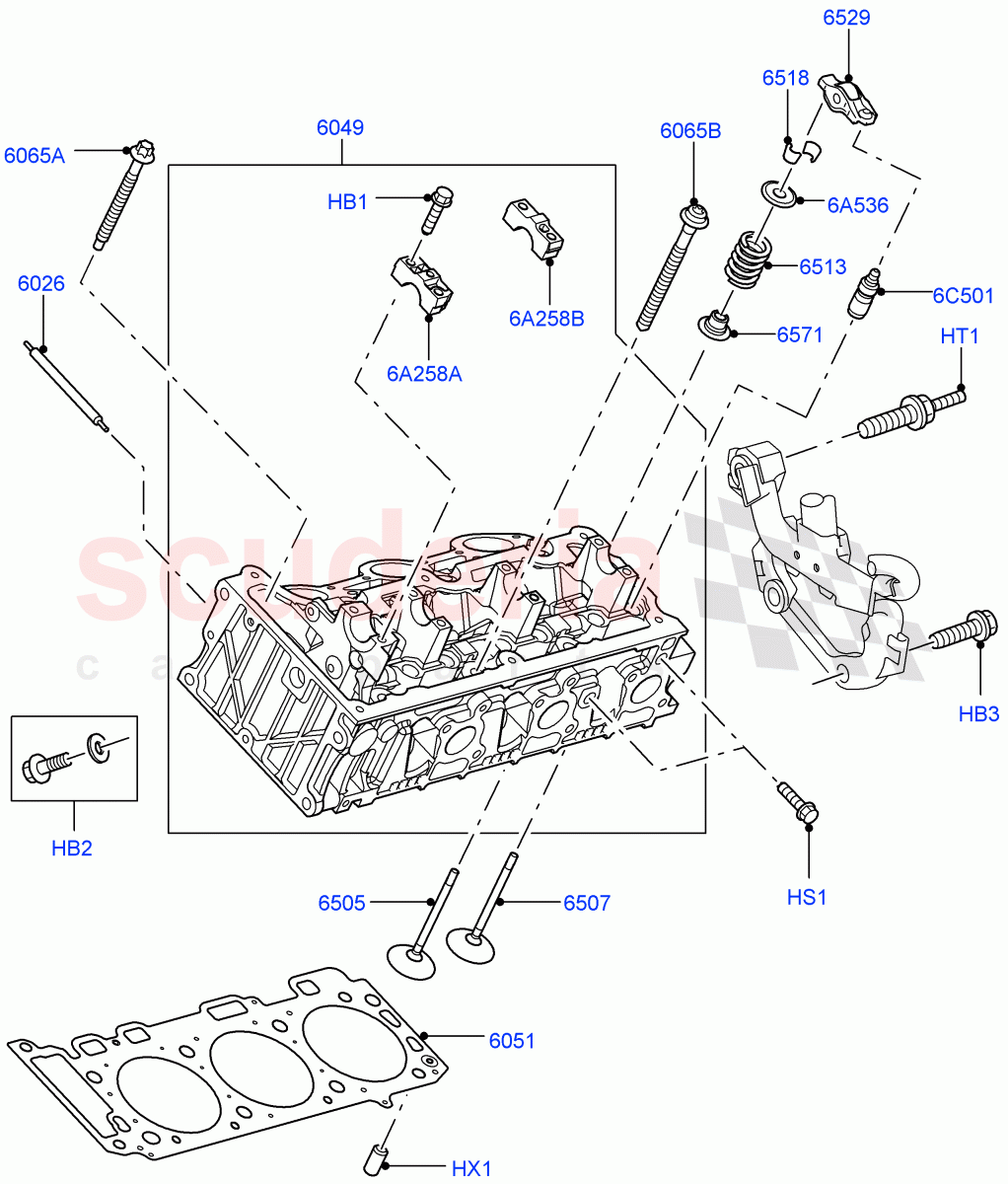

Cylinder Head (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 1031404
BOLT
M7 X 1.0 X 38 / From: AA000001 		$0.72 16
HB2 4357433
BOLT AND WASHER - HEX.HEAD
M6 x 15 / From: AA000001 		$0.76 1
HB3 3902863
BOLT - HEX. HEAD - FLANGED
M10 x 35MM / From: AA000001 / To: AA999999 		$0.76 2
HB3 4744021
BOLT
M10 x 35MM / From: BA000001 		$0.72 2
HS1 4413744
SCREW
Lashing Eye, M12 x 25MM / From: AA000001 		$2.08 4
HT1 4537594
STUD
M10 X 40 + M8 X 29 / From: AA000001 		$2.69 1
HX1 LR000396
Retainer
Straight Dowel / From: AA000001 		- 2 Enquire
6A258A 4558817
CAP
From: AA000001 		$0.77 2
6A258B 4558818
CAP
From: AA000001 		$1.04 6
6A536 1025376
RETAINER - VALVE SPRING
From: AA000001 		$0.75 12
6C501 1025392
ADJUSTER
From: AA000001 		$12.02 12
6026 4068468
PLUG - ENGINE
From: AA000001 		$0.97 1
6049 LR006057
CYLINDER HEAD
RH, Excludes Valves / From: AA000001 		$1,169.75 1
6049 LR006058
CYLINDER HEAD
LH, Excludes Valves / From: AA000001 		$1,169.75 1
6051 LR003548
GASKET - CYLINDER HEAD
RH, For Production Engines Only / From: AA000001 		$63.37 1
6051 LR003549
GASKET - CYLINDER HEAD
LH, For Production Engines Only / From: AA000001 		$63.37 1
6065A 4345510
BOLT - HEX.HEAD
Cologne V6 4.0 EFI (SOHC) / M8 / From: AA000001 		$3.41 4
6065B 1042848
BOLT - CYLINDER HEAD
Cologne V6 4.0 EFI (SOHC) / From: AA000001 		$14.70 16
6505 4438257
VALVE - EXHAUST
From: AA000001 		$10.42 6
6507 4438258
VALVE - INLET
From: AA000001 		$6.22 6
6513 4397912
SPRING - VALVE
From: AA000001 		$11.10 12
6518 LR004433
COLLET - VALVE SPRING RETAINER
From: AA000001 		$17.18 24
6529 LR003909
ARM - VALVE ROCKER
From: AA000001 		$95.97 12
6571 1025374
SEAL - VALVE STEM
From: AA000001 		$1.05 12
