Cylinder Block And Plugs (Cologne V6 4.0 Efi (Sohc)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Cylinder Block And Plugs (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000603 BOLT $0.11 To Order
Photo Part No Description Price (each) Stock
LR000300 BOLT $6.50 To Order
Photo Part No Description Price (each) Stock
4537596 BOLT $1.94 To Order
Photo Part No Description Price (each) Stock
4650139 DOWEL $0.09 To Order
Photo Part No Description Price (each) Stock
4413736 NUT - HEX. - SELF-LOCKING $0.24 To Order
Photo Part No Description Price (each) Stock
4646352 PLUG - EXPANSION $24.59 To Order
Photo Part No Description Price (each) Stock
1132271 PLUG - ENGINE $0.77 To Order
Photo Part No Description Price (each) Stock
4413735 SCREW $0.72 To Order
Photo Part No Description Price (each) Stock
FS106127L SCREW $2.01 To Order
Photo Part No Description Price (each) Stock
FS108307L SCREW $2.71 To Order
Photo Part No Description Price (each) Stock
4537597 STUD $2.49 To Order
Photo Part No Description Price (each) Stock
LR007293 CYLINDER BLOCK $752.52 To Order
Photo Part No Description Price (each) Stock
LR000431 PLUG - ENGINE $12.41 To Order
Photo Part No Description Price (each) Stock
1025228 GASKET - OIL PAN $17.51 To Order
Photo Part No Description Price (each) Stock
LR000437 GASKET $21.46 To Order
Photo Part No Description Price (each) Stock
LR000619 SWITCH - OIL PRESSURE $5.85 To Order
LR027622 SWITCH - OIL PRESSURE $5.52 To Order
Photo Part No Description Price (each) Stock
LR000434 BOLT - BEARING CAP - HEX. HEAD $18.60 To Order
Photo Part No Description Price (each) Stock
1031345 BOLT - BEARING CAP - HEX. HEAD $4.67 To Order
Photo Part No Description Price (each) Stock
1025334 SCREW - ADJUSTING $3.35 To Order
Photo Part No Description Price (each) Stock
6426568 SPACER $0.40 To Order
6426569 SPACER $8.34 To Order
6426570 SPACER $4.51 To Order
Photo Part No Description Price (each) Stock
4558766 BULKHEAD - FRONT $101.61 To Order
Photo Part No Description Price (each) Stock
4644891 SENSOR - ENGINE COOLANT TEMPERATURE $104.78 To Order
Photo Part No Description Price (each) Stock
YQU500480 BRACKET $3.59 To Order
Photo Part No Description Price (each) Stock
3991033 SENSOR - ENGINE KNOCK $149.52 IN STOCK
Photo Part No Description Price (each) Stock
NSC500600 SENSOR - ENGINE KNOCK $94.38 IN STOCK
View All

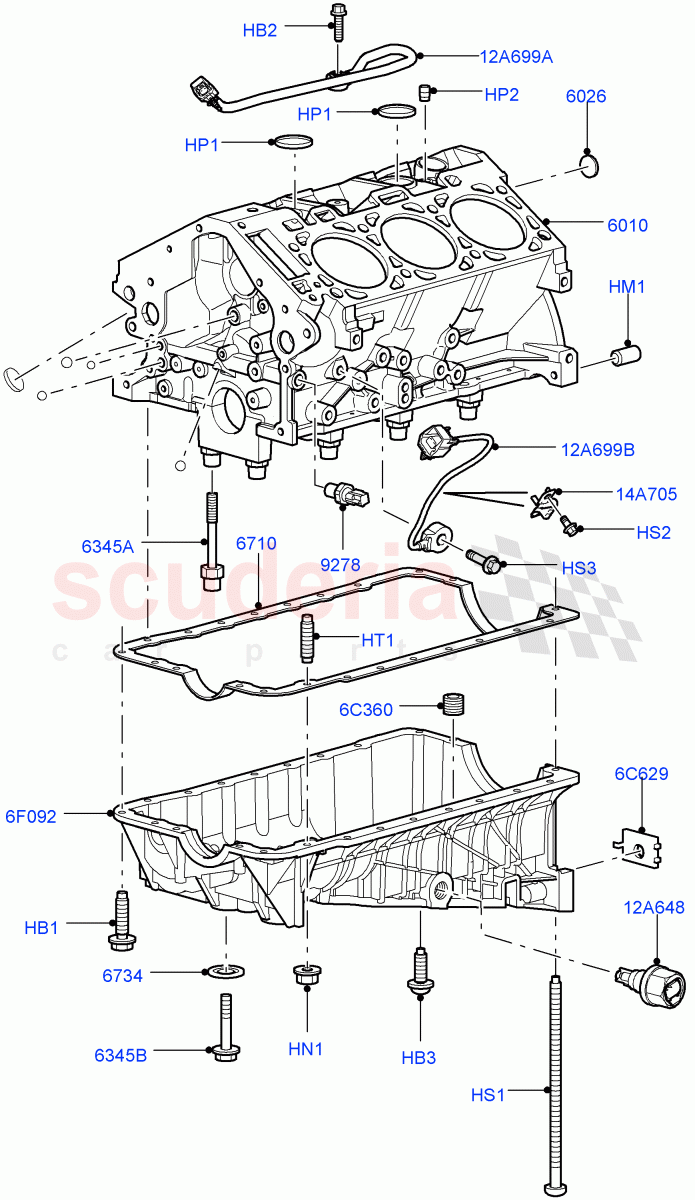

Cylinder Block And Plugs (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR000603
BOLT
M6 X 20MM / From: AA000001 		$0.11 20
HB2 LR000300
BOLT
M8 X 30 / From: AA000001 		$6.50 1
HB3 4537596
BOLT
M6 X 20MM / From: AA000001 		$1.94 1
HM1 4650139
DOWEL
15.45 X 23MM, Pin - Dowell / From: AA000001 		$0.09 2
HN1 4413736
NUT - HEX. - SELF-LOCKING
M6 / From: AA000001 		$0.24 2
HP1 4646352
PLUG - EXPANSION
-38MM / From: AA000001 		$24.59 2
HP2 1132271
PLUG - ENGINE
1/8" NPTF - 27 / From: AA000001 		$0.77 5
HS1 4413735
SCREW
M6 X 11MM / From: AA000001 		$0.72 1
HS2 FS106127L
SCREW
HEX Flange, M6 x 12MM / From: AA000001 		$2.01 1
HS3 FS108307L
SCREW
M8 x 30MM / From: AA000001 		$2.71 1
HT1 4537597
STUD
M6 X 19 + M6 X 19 / From: AA000001 		$2.49 2
6C360 1025334
SCREW - ADJUSTING
From: AA000001 		$3.35 8
6C629 6426568
SPACER
.009'' Thick / From: AA000001 		$0.40 -
6C629 6426569
SPACER
.0185'' Thick / From: AA000001 		$8.34 -
6C629 6426570
SPACER
.028'' Thick / From: AA000001 		$4.51 -
6F092 4558766
BULKHEAD - FRONT
From: AA000001 		$101.61 1
12A648 4644891
SENSOR - ENGINE COOLANT TEMPERATURE
Used As Coolant Temp Sensor And Engine Oil Temp Sensor On Some Applications / From: AA000001 		$104.78 1
12A699A 3991033
SENSOR - ENGINE KNOCK
From: AA000001
IN STOCK 		$149.52 1
12A699B NSC500600
SENSOR - ENGINE KNOCK
From: AA000001
IN STOCK 		$94.38 1
14A705 YQU500480
BRACKET
From: AA000001 		$3.59 1
6010 LR007293
CYLINDER BLOCK
From: AA000001 		$752.52 1
6026 LR000431
PLUG - ENGINE
Rear / From: AA000001 		$12.41 1
6345A LR000434
BOLT - BEARING CAP - HEX. HEAD
M12 / From: AA000001 		$18.60 8
6345B 1031345
BOLT - BEARING CAP - HEX. HEAD
M8 X 45MM / From: AA000001 		$4.67 8
6710 1025228
GASKET - OIL PAN
Upper / From: AA000001 		$17.51 1
6734 LR000437
GASKET
(MM), 14 / From: AA000001 		$21.46 2
9278 LR000619
SWITCH - OIL PRESSURE
From: AA000001 / To: AA999999 		$5.85 1
9278 LR027622
SWITCH - OIL PRESSURE
From: BA000001 		$5.52 1
