Name: Rear Seat Frame (Row 3, Finishers) (With 7 Seat Configuration) ((V) FROMAA000001)
Rating: 4.4 (1 reviews)

Rear Seat Frame (Row 3, Finishers) (With 7 Seat Configuration) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Rear Seat Frame (Row 3, Finishers) (With 7 Seat Configuration) ((V) FROMAA000001)

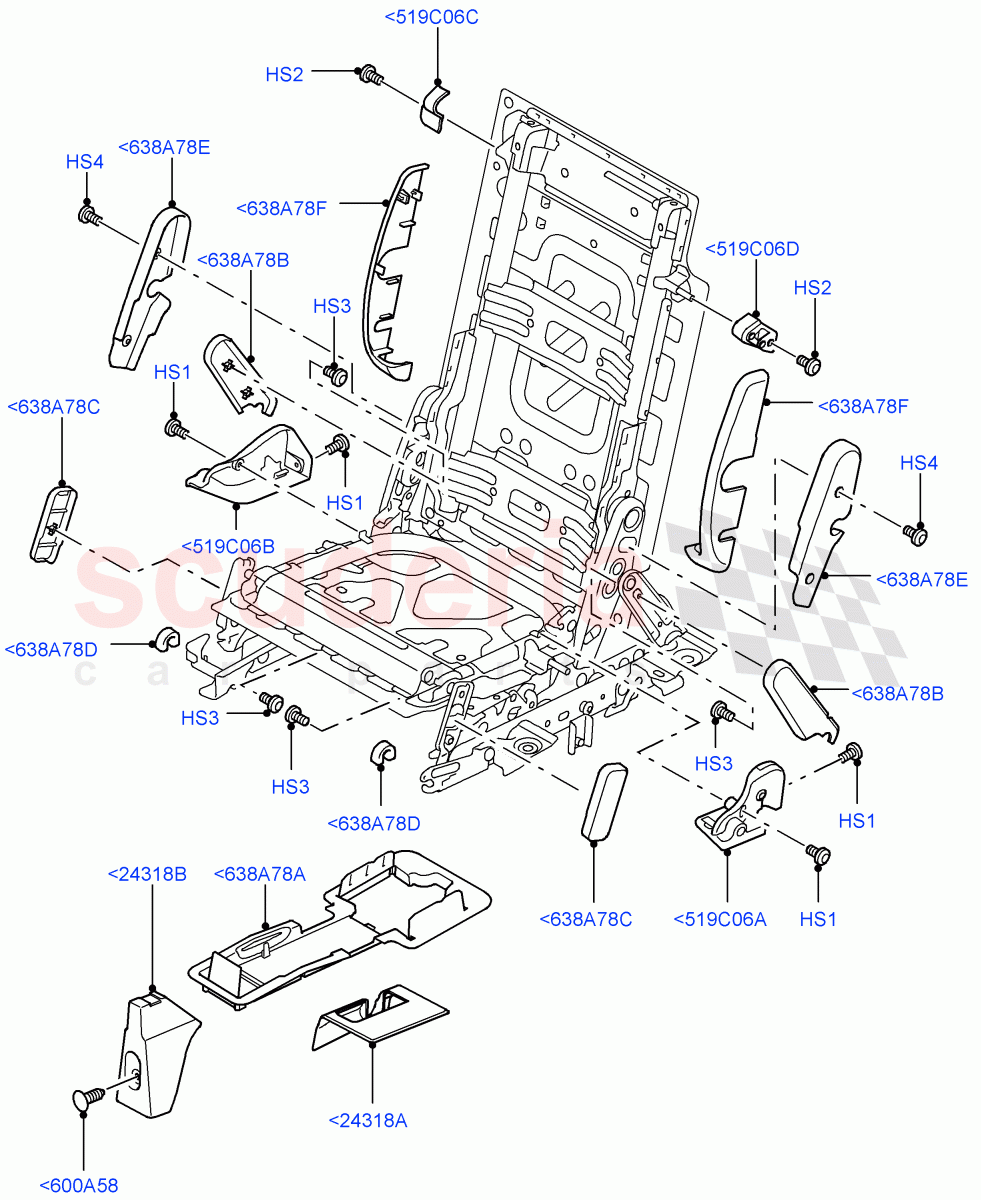

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	HYP500110	SCREW	$1.25	To Order

Photo	Part No	Description	Price (each)	Stock
	HYP500100	SCREW	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	HYP500080	SCREW	$1.79	To Order

Photo	Part No	Description	Price (each)	Stock
	HYP500160	SCREW	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	HXT500780PVJ	MOULDING - SEAT BACK	$17.73	To Order
	HXT500790PVJ	MOULDING - SEAT BACK	$17.73	To Order

Photo	Part No	Description	Price (each)	Stock
	EAM500031PVJ	MOULDING - SEAT VALANCE	$12.09	To Order

Photo	Part No	Description	Price (each)	Stock
	HYQ100060PUY	FASTENER	$4.36	IN STOCK
	HYQ100060PUY	FASTENER	$4.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	HXP500101PVJ	FINISHER	$4.73	To Order
	HXP500111PVJ	FINISHER	$4.73	To Order

Photo	Part No	Description	Price (each)	Stock
	HXP500121PVJ	FINISHER	$4.17	To Order
	HXP500131PVJ	COVER - HINGE	$4.17	To Order

Photo	Part No	Description	Price (each)	Stock
	HXP500300PVJ	COVER - LATCH	$4.03	To Order
	HXP500310PVJ	COVER - LATCH	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	HXP500260PVJ	COVER - LATCH	$5.81	To Order

Photo	Part No	Description	Price (each)	Stock
	HXT500243PVJ	COVER	$75.42	To Order

Photo	Part No	Description	Price (each)	Stock
	HXT500840PVJ	COVER	$3.31	To Order
	HXT500850PVJ	COVER	$6.68	To Order

Photo	Part No	Description	Price (each)	Stock
	HXT500980PVJ	COVER	$5.21	To Order
	HXT500990PVJ	COVER	$5.21	To Order

Photo	Part No	Description	Price (each)	Stock
	HXH500040PVJ	COVER	$4.01	To Order

Photo	Part No	Description	Price (each)	Stock
	HXT500521PVJ	COVER - HINGE	$5.89	To Order
	HXT500531PVJ	COVER - HINGE	$5.89	To Order

Photo	Part No	Description	Price (each)	Stock
	HXP500201PVJ	COVER - REAR SEAT SURROUND	$7.96	To Order
	HXP500211PVJ	COVER - REAR SEAT SURROUND	$7.41	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<519C06A	HXP500101PVJ	FINISHER	HXP500101PVJ FINISHER RH Seat Outboard, Seat Cushion / From: AA000001	$4.73	1
<519C06A	HXP500111PVJ	FINISHER	HXP500111PVJ FINISHER LH Seat Outboard, Seat Cushion / From: AA000001	$4.73	1
<519C06B	HXP500121PVJ	FINISHER	HXP500121PVJ FINISHER RH, Hinge / From: AA000001	$4.17	2
<519C06B	HXP500131PVJ	COVER - HINGE	HXP500131PVJ COVER - HINGE LH, Hinge / From: AA000001	$4.17	1
<519C06C	HXP500300PVJ	COVER - LATCH	HXP500300PVJ COVER - LATCH Latch, Pin, RH - Inner / From: AA000001	$4.03	1
<519C06C	HXP500310PVJ	COVER - LATCH	HXP500310PVJ COVER - LATCH Latch, LH Inner, Pin / From: AA000001	$4.03	1
<519C06D	HXP500260PVJ	COVER - LATCH	HXP500260PVJ COVER - LATCH Latch, Outer, Pin / From: AA000001	$5.81	2
<600A58	HYQ100060PUY	FASTENER IN STOCK	HYQ100060PUY FASTENER Rivet IN STOCK	$4.36	1
<600A58	HYQ100060PUY	FASTENER IN STOCK	HYQ100060PUY FASTENER Rivet / From: AA000001 IN STOCK	$4.36	1
<638A78A	HXT500243PVJ	COVER	HXT500243PVJ COVER Floor, Latch / From: AA000001	$75.42	1
<638A78B	HXT500840PVJ	COVER	HXT500840PVJ COVER Hinge, RH Rear / From: AA000001	$3.31	2
<638A78B	HXT500850PVJ	COVER	HXT500850PVJ COVER Hinge, LH Rear / From: AA000001	$6.68	2
<638A78C	HXT500980PVJ	COVER	HXT500980PVJ COVER Hinge, RH Front / From: AA000001	$5.21	2
<638A78C	HXT500990PVJ	COVER	HXT500990PVJ COVER Hinge, LH Front / From: AA000001	$5.21	2
<638A78D	HXH500040PVJ	COVER	HXH500040PVJ COVER Hinge / From: AA000001	$4.01	4
<638A78E	HXT500521PVJ	COVER - HINGE	HXT500521PVJ COVER - HINGE Hinge, RH Upper / From: AA000001	$5.89	2
<638A78E	HXT500531PVJ	COVER - HINGE	HXT500531PVJ COVER - HINGE Hinge, LH Upper / From: AA000001	$5.89	2
<638A78F	HXP500201PVJ	COVER - REAR SEAT SURROUND	HXP500201PVJ COVER - REAR SEAT SURROUND RH Upper / From: AA000001	$7.96	2
<638A78F	HXP500211PVJ	COVER - REAR SEAT SURROUND	HXP500211PVJ COVER - REAR SEAT SURROUND LH Upper / From: AA000001	$7.41	2
<24318A	HXT500780PVJ	MOULDING - SEAT BACK	HXT500780PVJ MOULDING - SEAT BACK RH, Information Decals, Latch Cover / From: AA000001	$17.73	1
<24318A	HXT500790PVJ	MOULDING - SEAT BACK	HXT500790PVJ MOULDING - SEAT BACK LH, Information Decals, Latch Cover / From: AA000001	$17.73	1
<24318B	EAM500031PVJ	MOULDING - SEAT VALANCE	EAM500031PVJ MOULDING - SEAT VALANCE Center Support, For Seat Cushion / From: AA000001	$12.09	1
HS1	HYP500110	SCREW	HYP500110 SCREW Cover, M5x12 Pan Head / From: AA000001	$1.25	8
HS2	HYP500100	SCREW	HYP500100 SCREW Cover / From: AA000001	$0.47	4
HS3	HYP500080	SCREW	HYP500080 SCREW Torx / From: AA000001	$1.79	12
HS4	HYP500160	SCREW	HYP500160 SCREW Pan Head - Torx / From: AA000001	$0.47	8

Rear Seat Frame (Row 3, Finishers) (With 7 Seat Configuration) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Rear Seat Frame (Row 3, Finishers) (With 7 Seat Configuration) ((V) FROMAA000001)
