Name: Rear Seat Frame (With 65/35 Split Fold Rear Seat) ((V) FROMAA000001)
Rating: 4.1 (1 reviews)

Rear Seat Frame (With 65/35 Split Fold Rear Seat) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Rear Seat Frame (With 65/35 Split Fold Rear Seat) ((V) FROMAA000001)

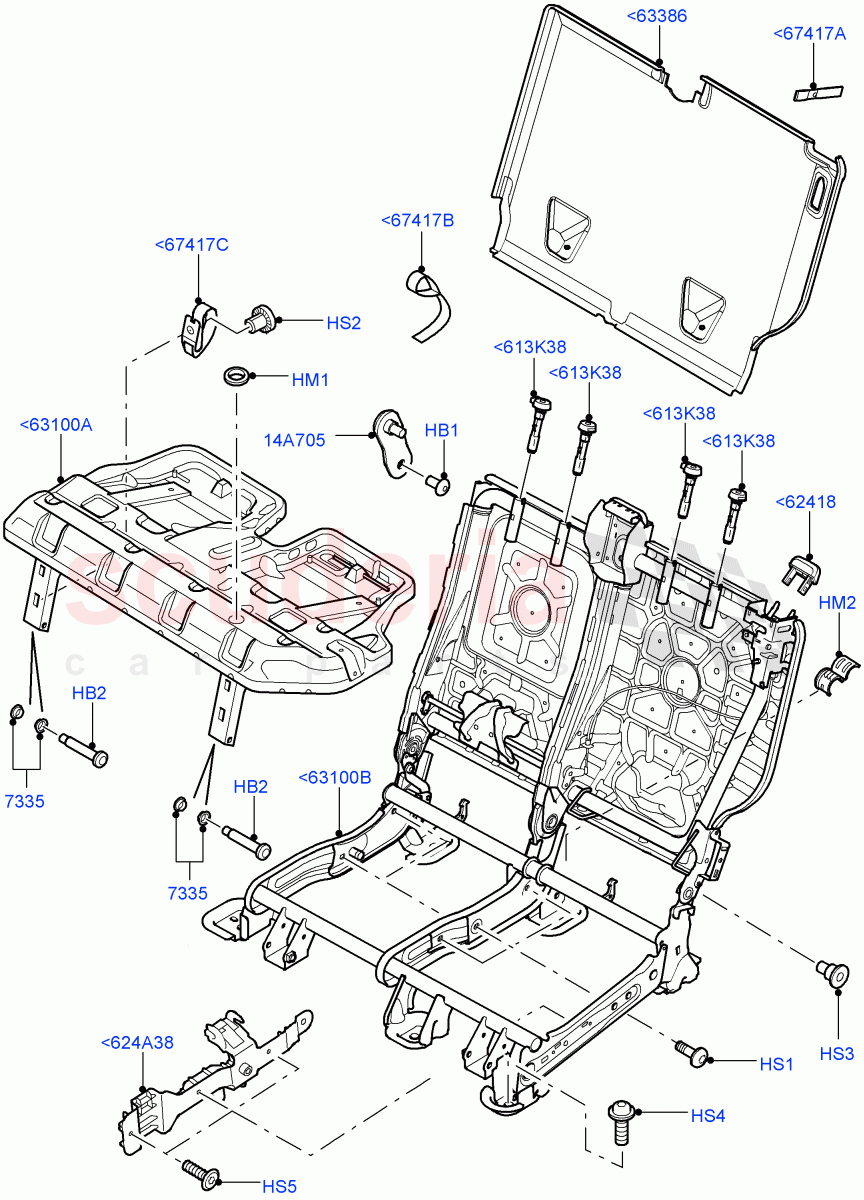

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	HYG500200	BOLT	$5.49	To Order

Photo	Part No	Description	Price (each)	Stock
	HYG500160	BOLT	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	HYA000020	GROMMET	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	HZT500020	BUSH	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	HYG500270	BOLT	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	HYG500280	SCREW	$0.77	To Order

Photo	Part No	Description	Price (each)	Stock
	HYG500380	SCREW	$6.08	To Order

Photo	Part No	Description	Price (each)	Stock
	HYP500370	SCREW	$1.81	To Order

Photo	Part No	Description	Price (each)	Stock
	HYP500150	SCREW	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	HZT500030	BUSH	$2.76	To Order

Photo	Part No	Description	Price (each)	Stock
	HXG500290PVJ	HANDLE - SEAT BACK ADJUSTING	$59.11	To Order

Photo	Part No	Description	Price (each)	Stock
	ERG500011PVJ	COVER - REAR SEAT BRACKET	$177.44	To Order
	LR008586	COVER - REAR SEAT BRACKET	$207.53	To Order
	LR021544	COVER - REAR SEAT BRACKET	$142.08	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HYH500030	BRACKET	$8.06	To Order

Photo	Part No	Description	Price (each)	Stock
	HJQ500180PVJ	SLEEVE - HEADREST GUIDE	$5.89	To Order
	HJQ500190PVJ	SLEEVE - HEADREST GUIDE	$5.89	To Order

Photo	Part No	Description	Price (each)	Stock
	YWU500090	BRACKET	$79.75	To Order

Photo	Part No	Description	Price (each)	Stock
	HTG500270	FRAME	$765.68	To Order

Photo	Part No	Description	Price (each)	Stock
	HTA500240	FRAME	$1,254.86	To Order

Photo	Part No	Description	Price (each)	Stock
	HPH500180PVJ	STRAP - RELEASE	$4.82	To Order

Photo	Part No	Description	Price (each)	Stock
	HPH500110PVJ	STRAP - RELEASE	$2.95	To Order

Photo	Part No	Description	Price (each)	Stock
	HPH500240PVJ	STRAP - SECURING	$12.67	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<613K38	HJQ500180PVJ	SLEEVE - HEADREST GUIDE	HJQ500180PVJ SLEEVE - HEADREST GUIDE Non Locking / From: AA000001	$5.89	2
<613K38	HJQ500190PVJ	SLEEVE - HEADREST GUIDE	HJQ500190PVJ SLEEVE - HEADREST GUIDE Locking Type / From: AA000001	$5.89	2
<624A38	YWU500090	BRACKET	YWU500090 BRACKET ECU / From: AA000001	$79.75	1
<62418	HXG500290PVJ	HANDLE - SEAT BACK ADJUSTING	HXG500290PVJ HANDLE - SEAT BACK ADJUSTING From: AA000001	$59.11	1
<63100A	HTG500270	FRAME	HTG500270 FRAME Large / From: AA000001	$765.68	1
<63100B	HTA500240	FRAME	HTA500240 FRAME Large / From: AA000001	$1,254.86	1
<63386	ERG500011PVJ	COVER - REAR SEAT BRACKET	ERG500011PVJ COVER - REAR SEAT BRACKET Int Ebony Carpet / For Seat Back, Large / From: AA000001 / To: AA547164	$177.44	1
<63386	LR008586	COVER - REAR SEAT BRACKET	LR008586 COVER - REAR SEAT BRACKET Interior Nutmeg Carpet - LR / For Seat Back, Large / From: AA000001 / To: AA547164	$207.53	1
<63386	LR021544	COVER - REAR SEAT BRACKET	LR021544 COVER - REAR SEAT BRACKET Int Ebony Carpet / For Seat Back, Large / From: AA547165	$142.08	1
<63386	LR021545	COVER - REAR SEAT BRACKET	LR021545 COVER - REAR SEAT BRACKET Interior Nutmeg Carpet - LR / For Seat Back, Large / From: AA547165	$142.08	1
<67417A	HPH500180PVJ	STRAP - RELEASE	HPH500180PVJ STRAP - RELEASE From: AA000001	$4.82	1
<67417B	HPH500110PVJ	STRAP - RELEASE	HPH500110PVJ STRAP - RELEASE From: AA000001	$2.95	1
<67417C	HPH500240PVJ	STRAP - SECURING	HPH500240PVJ STRAP - SECURING From: AA000001	$12.67	1
HB1	HYG500200	BOLT	HYG500200 BOLT Bracket, M10, Seat Belt Anchor, Torx / From: AA000001	$5.49	1
HB2	HYG500160	BOLT	HYG500160 BOLT M10, Torx / From: AA000001	$4.03	2
HM1	HYA000020	GROMMET	HYA000020 GROMMET Grommet / From: AA000001	$1.15	1
HM2	HZT500020	BUSH	HZT500020 BUSH Rear Bush / From: AA000001	$2.77	1
HS1	HYG500270	BOLT	HYG500270 BOLT M10 X 25MM, Torx / From: AA000001	$1.04	5
HS2	HYG500280	SCREW	HYG500280 SCREW M8, Torx / From: AA000001	$0.77	1
HS3	HYG500380	SCREW	HYG500380 SCREW M10 / From: AA000001	$6.08	1
HS4	HYP500370	SCREW	HYP500370 SCREW M10 X 1.5, Torx / From: AA000001	$1.81	6
HS5	HYP500150	SCREW	HYP500150 SCREW 16MM, Torx / From: AA000001	$0.76	3
14A705	HYH500030	BRACKET	HYH500030 BRACKET Seat Belt Anchor / From: AA000001	$8.06	1
7335	HZT500030	BUSH	HZT500030 BUSH From: AA000001	$2.76	4

Rear Seat Frame (With 65/35 Split Fold Rear Seat) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Rear Seat Frame (With 65/35 Split Fold Rear Seat) ((V) FROMAA000001)
