View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FYG500040 SCREW $0.71 To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
LR023116 O-RING $5.52 To Order
Photo Part No Description Price (each) Stock
LR001924 O-RING $7.84 IN STOCK
Photo Part No Description Price (each) Stock
LR002720 O-RING $4.89 To Order
Photo Part No Description Price (each) Stock
LR002721 O-RING $6.64 To Order
Photo Part No Description Price (each) Stock
LR002719 O-RING $4.40 To Order
Photo Part No Description Price (each) Stock
LR011180 O-RING $3.03 To Order
Photo Part No Description Price (each) Stock
FS106256 SCREW $0.43 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.47 IN STOCK
Photo Part No Description Price (each) Stock
LR013859 HOSE - AIR CONDITIONING $148.03 To Order
Photo Part No Description Price (each) Stock
LR013846 BRACKET $4.96 To Order
Photo Part No Description Price (each) Stock
LR010849 BRACKET $8.02 To Order
Photo Part No Description Price (each) Stock
LR013874 HOSE - AIR CONDITIONING $202.81 To Order
LR019674 HOSE - AIR CONDITIONING $141.90 To Order
Photo Part No Description Price (each) Stock
LR013849 HOSE - AIR CONDITIONING $296.11 To Order
Photo Part No Description Price (each) Stock
LR013848 HOSE - AIR CONDITIONING $197.37 To Order
Photo Part No Description Price (each) Stock
LR013881 HOSE - AIR CONDITIONING $200.79 To Order
Photo Part No Description Price (each) Stock
LR013850 CLIP $6.06 To Order
Photo Part No Description Price (each) Stock
JTE000010 SWITCH $102.05 To Order
Photo Part No Description Price (each) Stock
LR023245 CAP $23.51 To Order
Photo Part No Description Price (each) Stock
LR023246 CAP $23.51 To Order
Photo Part No Description Price (each) Stock
JUU500020 O-RING $9.22 To Order
LR031797 O-RING $8.50 To Order
Photo Part No Description Price (each) Stock
JUU500010 O-RING $9.88 To Order
Photo Part No Description Price (each) Stock
JUU500030 O-RING $9.88 To Order
View All

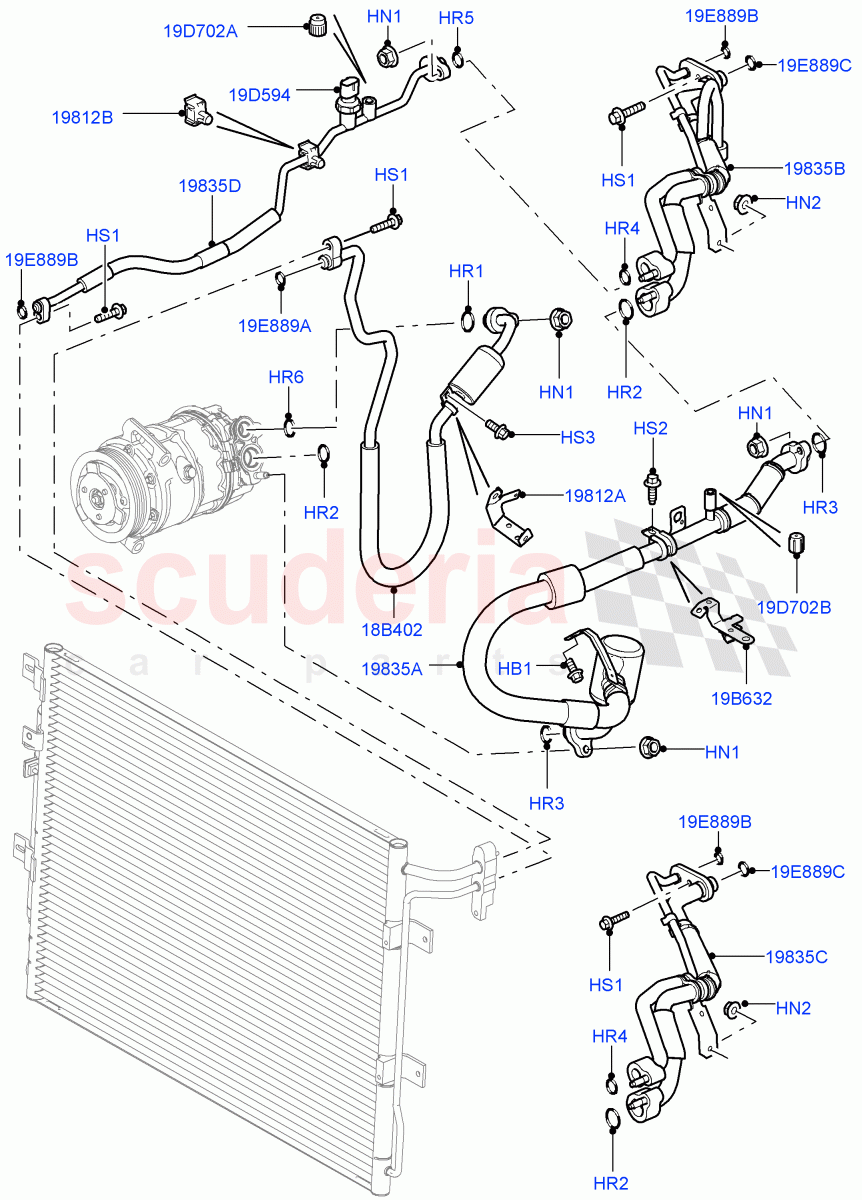

Air Conditioning System (Front) (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001, (V) TODA999999) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FYG500040
SCREW
M8 X 16MM / From: AA000001 		$0.71 1
HN1 FN108046
NUT - HEX.
Hexagonal Head, M8 / From: AA000001 		$1.97 4
HN2 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: AA000001
IN STOCK 		$1.47 1
HR1 LR023116
O-RING
11 x 2.5MM / From: AA000001 		$5.52 1
HR2 LR001924
O-RING
26.3 x 3mm, Orange / From: AA000001
IN STOCK 		$7.84 1
HR3 LR002720
O-RING
16.25 X 2.5MM / From: AA000001 		$4.89 2
HR4 LR002721
O-RING
19.2 X 3MM / From: AA000001 		$6.64 1
HR5 LR002719
O-RING
9.5 X 2.5MM / From: AA000001 		$4.40 1
HR6 LR011180
O-RING
21 X 3MM / From: AA000001 		$3.03 1
HS1 FS106256
SCREW
M6 x 25MM / From: AA000001 		$0.43 3
HS2 FS106166
SCREW
Hexagonal Head, M6 X 16MM / From: AA000001
IN STOCK 		$1.24 1
HS3 RYG500220
SCREW
Hexagonal Head, M6 X 20MM / From: AA000001
IN STOCK 		$3.47 1
18B402 LR013859
HOSE - AIR CONDITIONING
5.0L OHC SGDI NA V8 Petrol - AJ133 / Compressor To Condenser, Includes O-Rings / From: AA000001 / To: DA999999 		$148.03 1
19B632 LR013850
CLIP
From: AA000001 		$6.06 1
19D594 JTE000010
SWITCH
Pressure / From: AA000001 		$102.05 1
19D702A LR023245
CAP
From: AA000001 		$23.51 1
19D702B LR023246
CAP
From: AA000001 		$23.51 1
19E889A JUU500020
O-RING
From: AA000001 / To: BA584130 		$9.22 2
19E889A LR031797
O-RING
10.6 x 2.4MM / From: BA584131 		$8.50 2
19E889B JUU500010
O-RING
From: AA000001 		$9.88 2
19E889C JUU500030
O-RING
From: AA000001 		$9.88 1
19812A LR013846
BRACKET
From: AA000001 		$4.96 1
19812B LR010849
BRACKET
From: AA000001 		$8.02 1
19835A LR013874
HOSE - AIR CONDITIONING
5.0L OHC SGDI NA V8 Petrol - AJ133 / Air Conditioning Evaporator To Compressor, Includes O-Rings / From: AA000001 / To: AA515353 		$202.81 1
19835A LR019674
HOSE - AIR CONDITIONING
5.0L OHC SGDI NA V8 Petrol - AJ133 / Air Conditioning Evaporator To Compressor, Includes O-Rings / From: AA515354 / To: DA999999 		$141.90 1
19835B LR013849
HOSE - AIR CONDITIONING
5.0L OHC SGDI NA V8 Petrol - AJ133, With Rear Seat Climate Control / Includes O-Rings, To Evaporator / From: AA000001 / To: DA999999 		$296.11 1
19835C LR013848
HOSE - AIR CONDITIONING
5.0L OHC SGDI NA V8 Petrol - AJ133, Less Rear Seat Climate Control / Includes O-Rings, To Evaporator / From: AA000001 / To: DA999999 		$197.37 1
19835D LR013881
HOSE - AIR CONDITIONING
5.0L OHC SGDI NA V8 Petrol - AJ133 / Condenser To Evaporator, Includes O-Rings / From: AA000001 / To: DA999999 		$200.79 1
