Name: Vehicle Modules And Sensors (Passenger Compartment) ((V) FROMAA000001, (V) TODA999999)
Rating: 5.0 (1 reviews)

Vehicle Modules And Sensors (Passenger Compartment) ((V) FROMAA000001, (V) TODA999999) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Vehicle Modules And Sensors (Passenger Compartment) ((V) FROMAA000001, (V) TODA999999)

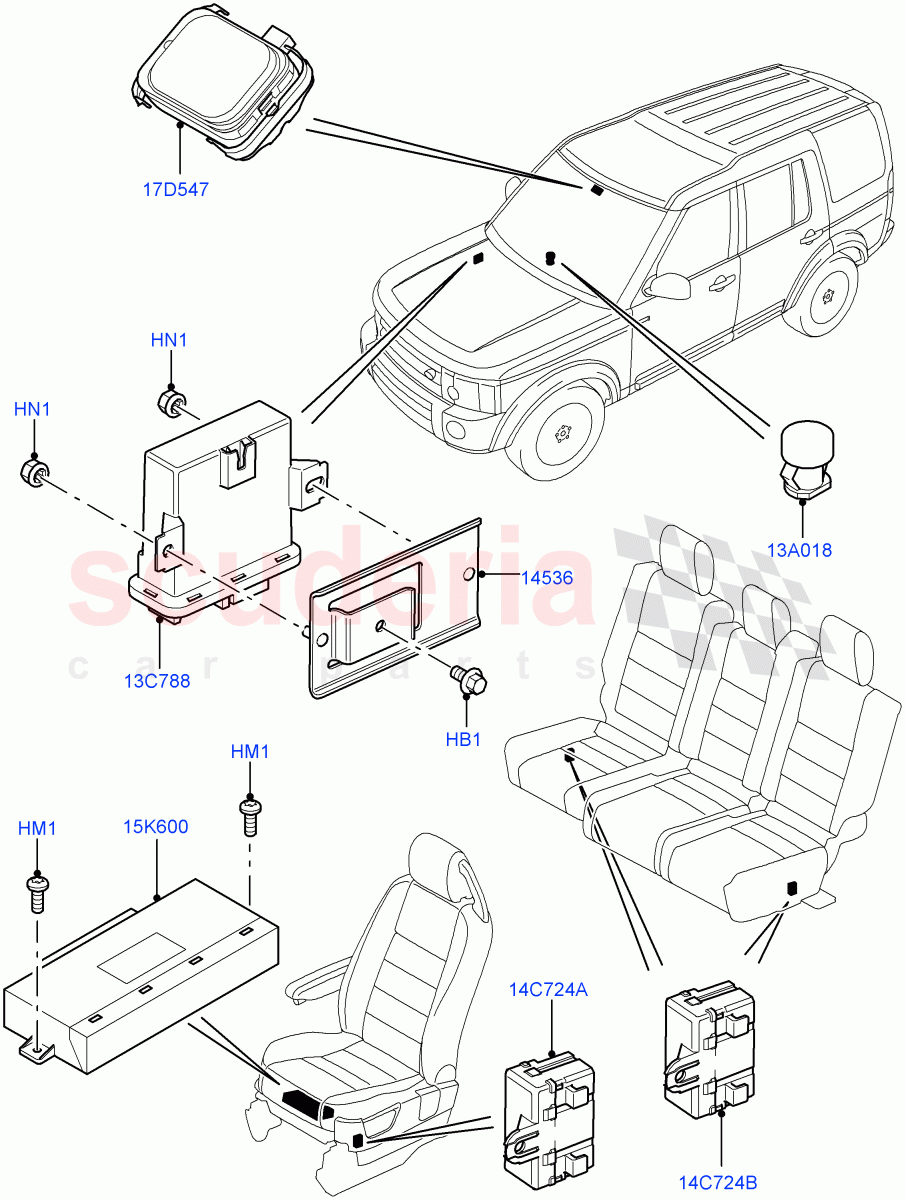

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	HYP500360	SCREW	$3.40	To Order

Photo	Part No	Description	Price (each)	Stock
	CYH10001L	NUT - PLASTIC - SPECIAL	$1.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014197	BRACKET	$6.13	To Order
	LR021652	BRACKET	$6.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007397	SENSOR - AIR CONDITIONER SUN LOAD	$46.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010521	CONTROL AND ACT. - H/LAMP LEVELLING	$223.07	To Order
	LR020073	CONTROL AND ACT. - H/LAMP LEVELLING	$238.15	To Order
	LR021666	CONTROL AND ACT. - H/LAMP LEVELLING	$286.67	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR019562	MODULE-CONTROL	$357.16	To Order
	LR021530	MODULE-CONTROL	$401.89	To Order
	LR025958	CONTROL UNIT	$385.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014238	MODULE - WINDSHIELD RAIN SENSOR	$152.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR018750	MODULE - SEAT HEATER CONTROL	$168.98	To Order
	LR019436	MODULE - SEAT HEATER CONTROL	$63.42	To Order

Photo	Part No	Description	Price (each)	Stock
	HLV500011	MODULE - SEAT HEATER CONTROL	$109.97	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS106126	BOLT IN STOCK	FS106126 BOLT Hexagonal Head, M6 x 12MM / From: AA000001 IN STOCK	$0.52	1
HM1	HYP500360	SCREW	HYP500360 SCREW M6 X 16MM, Screw-Bolt / From: AA000001	$3.40	2
HN1	CYH10001L	NUT - PLASTIC - SPECIAL	CYH10001L NUT - PLASTIC - SPECIAL M5, Plastic / From: AA000001	$1.76	2
13A018	LR007397	SENSOR - AIR CONDITIONER SUN LOAD	LR007397 SENSOR - AIR CONDITIONER SUN LOAD ATC Air Conditioning / Sensor - Sunload / From: AA000001	$46.32	1
13C788	LR010521	CONTROL AND ACT. - H/LAMP LEVELLING	LR010521 CONTROL AND ACT. - H/LAMP LEVELLING With Adaptive Headlamps Bi Xenon / From: AA000001 / To: AA515849	$223.07	1
13C788	LR020073	CONTROL AND ACT. - H/LAMP LEVELLING	LR020073 CONTROL AND ACT. - H/LAMP LEVELLING With Adaptive Headlamps Bi Xenon / From: AA515850 / To: AA526222	$238.15	1
13C788	LR021666	CONTROL AND ACT. - H/LAMP LEVELLING	LR021666 CONTROL AND ACT. - H/LAMP LEVELLING With Adaptive BI-Xenon Headlamp NAS / From: AA526223 / To: CA649927	$286.67	1
13C788	LR045007	CONTROL AND ACT. - H/LAMP LEVELLING	LR045007 CONTROL AND ACT. - H/LAMP LEVELLING With Adaptive BI-Xenon Headlamp NAS / From: CA649928	$253.07	1
14C724A	LR018750	MODULE - SEAT HEATER CONTROL	LR018750 MODULE - SEAT HEATER CONTROL With Heated Seats - Front/Rear / RH, Front Seats / From: AA000001	$168.98	1
14C724A	LR019436	MODULE - SEAT HEATER CONTROL	LR019436 MODULE - SEAT HEATER CONTROL With Heated Seats - Front/Rear / LH, Front Seats / From: AA000001	$63.42	1
14C724B	HLV500011	MODULE - SEAT HEATER CONTROL	HLV500011 MODULE - SEAT HEATER CONTROL With Heated Seats - Front/Rear / Rear Seat / From: AA000001	$109.97	2
15K600	LR019562	MODULE-CONTROL	LR019562 MODULE-CONTROL Electric Front Seat Adj Drv Memory / From: AA000001 / To: AA525301	$357.16	1
15K600	LR021530	MODULE-CONTROL	LR021530 MODULE-CONTROL Electric Front Seat Adj Drv Memory / From: AA525302 / To: BA585477	$401.89	1
15K600	LR025958	CONTROL UNIT	LR025958 CONTROL UNIT Electric Front Seat Adj Drv Memory / From: BA585478	$385.21	1
17D547	LR014238	MODULE - WINDSHIELD RAIN SENSOR IN STOCK	LR014238 MODULE - WINDSHIELD RAIN SENSOR Rain Sensor - Windscreen Mounted / Located In Rear View Mirror Cover / From: AA000001 IN STOCK	$152.10	1
14536	LR014197	BRACKET	LR014197 BRACKET With Adaptive BI-Xenon Headlamp NAS / From: AA000001 / To: AA529052	$6.13	1
14536	LR021652	BRACKET	LR021652 BRACKET With Adaptive BI-Xenon Headlamp NAS / From: AA529053	$6.13	1

Vehicle Modules And Sensors (Passenger Compartment) ((V) Fromaa000001, (V) Toda999999)

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Vehicle Modules And Sensors (Passenger Compartment) ((V) FROMAA000001, (V) TODA999999)
