Battery And Mountings (Lh) (Rhd) ((V) Fromea000001)

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Battery And Mountings (LH) (RHD) ((V) FROMEA000001)

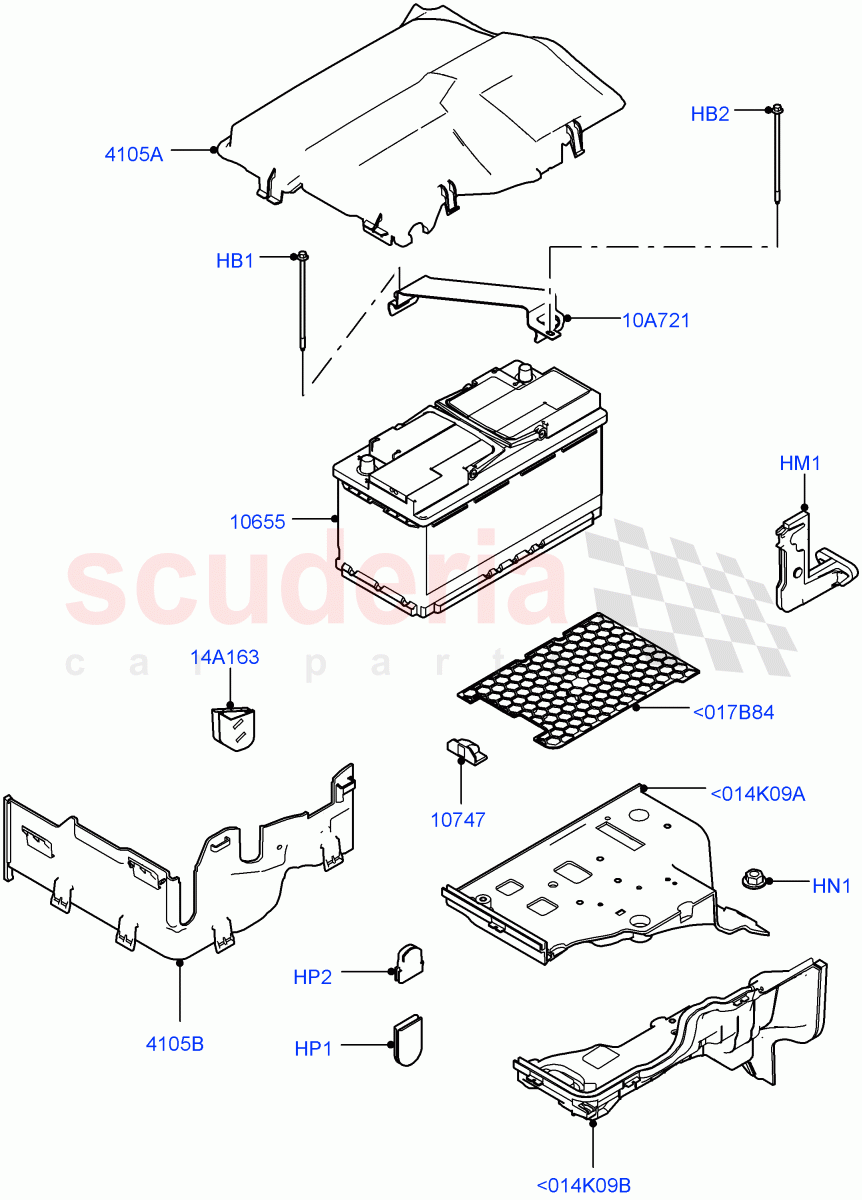

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
XYG000051 BOLT - FLANGED HEX. $4.64 To Order
Photo Part No Description Price (each) Stock
XYG500061 BOLT - BATTERY CLAMP $12.08 To Order
Photo Part No Description Price (each) Stock
LR015122 INSULATOR - BATTERY BOX SUPPORT $12.34 To Order
LR071638 INSULATOR - BATTERY BOX SUPPORT $11.86 To Order
Photo Part No Description Price (each) Stock
RYH500350 NUT - SPECIAL $0.52 To Order
Photo Part No Description Price (each) Stock
LR069896 PLUG - BLANKING $14.27 To Order
Photo Part No Description Price (each) Stock
LR067253 PLUG - BLANKING $5.64 To Order
Photo Part No Description Price (each) Stock
LR033179 BATTERY $397.00 To Order
LR073414 BATTERY $393.32 To Order
LR077924 BATTERY $393.32 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR052582 SPACER - BATTERY $3.72 To Order
LR061198 SPACER - BATTERY $4.82 To Order
Photo Part No Description Price (each) Stock
LR052358 COVER - BATTERY $31.69 To Order
LR066538 COVER - BATTERY $35.52 To Order
Photo Part No Description Price (each) Stock
LR052362 INSULATOR - AIR VENT $34.60 To Order
LR066539 INSULATOR - AIR VENT $34.60 To Order
Photo Part No Description Price (each) Stock
LR052367 BRACKET - BATTERY HOLD DOWN $20.41 To Order
YJF500110 BRACKET - BATTERY HOLD DOWN $33.95 To Order
Photo Part No Description Price (each) Stock
LR065515 CLIP - RETAINING $3.43 To Order
Photo Part No Description Price (each) Stock
LR053663 PAD - ANTI-RATTLE $10.81 To Order
Photo Part No Description Price (each) Stock
LR052421 BASE PANEL - BATTERY BOX $46.53 To Order
LR064694 BASE PANEL - BATTERY BOX $32.27 To Order
Photo Part No Description Price (each) Stock
LR052420 BASE PANEL - BATTERY BOX $38.48 To Order
LR065517 BASE PANEL - BATTERY BOX $31.17 To Order
View All
Battery And Mountings (LH) (RHD) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<014K09A LR052421
BASE PANEL - BATTERY BOX
From: EA000001 / To: EA713018 		$46.53 1
<014K09A LR064694
BASE PANEL - BATTERY BOX
From: EA713019 		$32.27 1
<014K09B LR052420
BASE PANEL - BATTERY BOX
From: EA000001 / To: EA715636 		$38.48 1
<014K09B LR065517
BASE PANEL - BATTERY BOX
From: EA715637 		$31.17 1
<017B84 LR053663
PAD - ANTI-RATTLE
With Battery Insulation / From: EA000001 		$10.81 1
HB1 XYG000051
BOLT - FLANGED HEX.
180MM, M6 / From: EA000001 		$4.64 2
HB2 XYG500061
BOLT - BATTERY CLAMP
147MM, M6 / From: EA000001 		$12.08 1
HM1 LR015122
INSULATOR - BATTERY BOX SUPPORT
Battery And Mountings / From: EA000001 / To: FA734417 		$12.34 1
HM1 LR071638
INSULATOR - BATTERY BOX SUPPORT
Battery And Mountings / From: FA734418 		$11.86 1
HN1 RYH500350
NUT - SPECIAL
M8 / From: EA000001 		$0.52 9
HP1 LR069896
PLUG - BLANKING
Lower / From: DA699650 		$14.27 2
HP2 LR067253
PLUG - BLANKING
Upper / From: DA699650 		$5.64 1
10A721 LR052367
BRACKET - BATTERY HOLD DOWN
Starter - Stop/Start System / From: EA000001 		$20.41 1
10A721 YJF500110
BRACKET - BATTERY HOLD DOWN
Standard Electric Starter Motor / From: EA000001 		$33.95 1
14A163 LR065515
CLIP - RETAINING
Blanking / From: EA000001 		$3.43 1
4105A LR052358
COVER - BATTERY
From: EA000001 / To: EA725620 		$31.69 1
4105A LR066538
COVER - BATTERY
From: EA725621 		$35.52 1
4105B LR052362
INSULATOR - AIR VENT
From: EA000001 / To: EA725628 		$34.60 1
4105B LR066539
INSULATOR - AIR VENT
From: EA725629 		$34.60 1
10655 LR033179
BATTERY
850 Amp, AGM(Absorbed Glass Mat) / From: EA000001 / To: FA739399 		$397.00 1
10655 LR073414
BATTERY
850 Amp, AGM(Absorbed Glass Mat) / From: FA739400 / To: FA770549 		$393.32 1
10655 LR077924
BATTERY
850 Amp, AGM(Absorbed Glass Mat) / From: FA770550 / To: GA805845 		$393.32 1
10655 LR093840
Battery
(+)"BR", H8 AGM Battery / From: GA000001 		$994.66 1
10655 LR094642
BATTERY
850 Amp, AGM(Absorbed Glass Mat) / From: GA805846 		$380.33 1
10655 LR104510
Battery
(+)"USA" / 850 Amp, AGM(Absorbed Glass Mat), H7, USA Locally Sourced From Interstate Only - Interstate Part Number MT5-94R/H7 / From: EA000001 		$277.44 1
10747 LR052582
SPACER - BATTERY
Starter - Stop/Start System / From: EA000001 / To: EA717624 		$3.72 1
10747 LR061198
SPACER - BATTERY
Starter - Stop/Start System / From: EA717625 		$4.82 1
