Rear Springs And Shock Absorbers (With Standard Duty Coil Spring Susp) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Rear Springs And Shock Absorbers (With Standard Duty Coil Spring Susp) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FY114047 NUT (NON HAZ) $3.03 IN STOCK
Photo Part No Description Price (each) Stock
FY110056 NUT $4.26 IN STOCK
Photo Part No Description Price (each) Stock
RNS000041 PLATE (NON HAZ) $7.24 IN STOCK
Photo Part No Description Price (each) Stock
RNS500010 WASHER - DAMPER LOCKING (NON HAZ) $4.44 IN STOCK
Photo Part No Description Price (each) Stock
RNO000011 BUMP STOP (NON HAZ) $21.30 To Order
Photo Part No Description Price (each) Stock
RKB500033 SPRING - REAR (NON HAZ) $193.58 To Order
Photo Part No Description Price (each) Stock
RNG500030 SPACER (NON HAZ) $6.88 To Order
RNG500040 SPACER (NON HAZ) $9.58 To Order
RNG500050 SPACER (NON HAZ) $8.06 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
ROA000022 BUSH - SHOCK ABSORBER (NON HAZ) $17.50 To Order
Photo Part No Description Price (each) Stock
LR018433 DAMPER $505.46 To Order
LR038097 SHOCK ABSORBER - REAR $373.17 To Order
Photo Part No Description Price (each) Stock
RPC500013 BUFFER - SPRING ASSIST (NON HAZ) $31.51 To Order
Photo Part No Description Price (each) Stock
RNE000011 COVER - DUST $20.26 To Order
Photo Part No Description Price (each) Stock
RPF500023 INSULATOR - SHOCK ABSORBER $147.50 To Order
View All

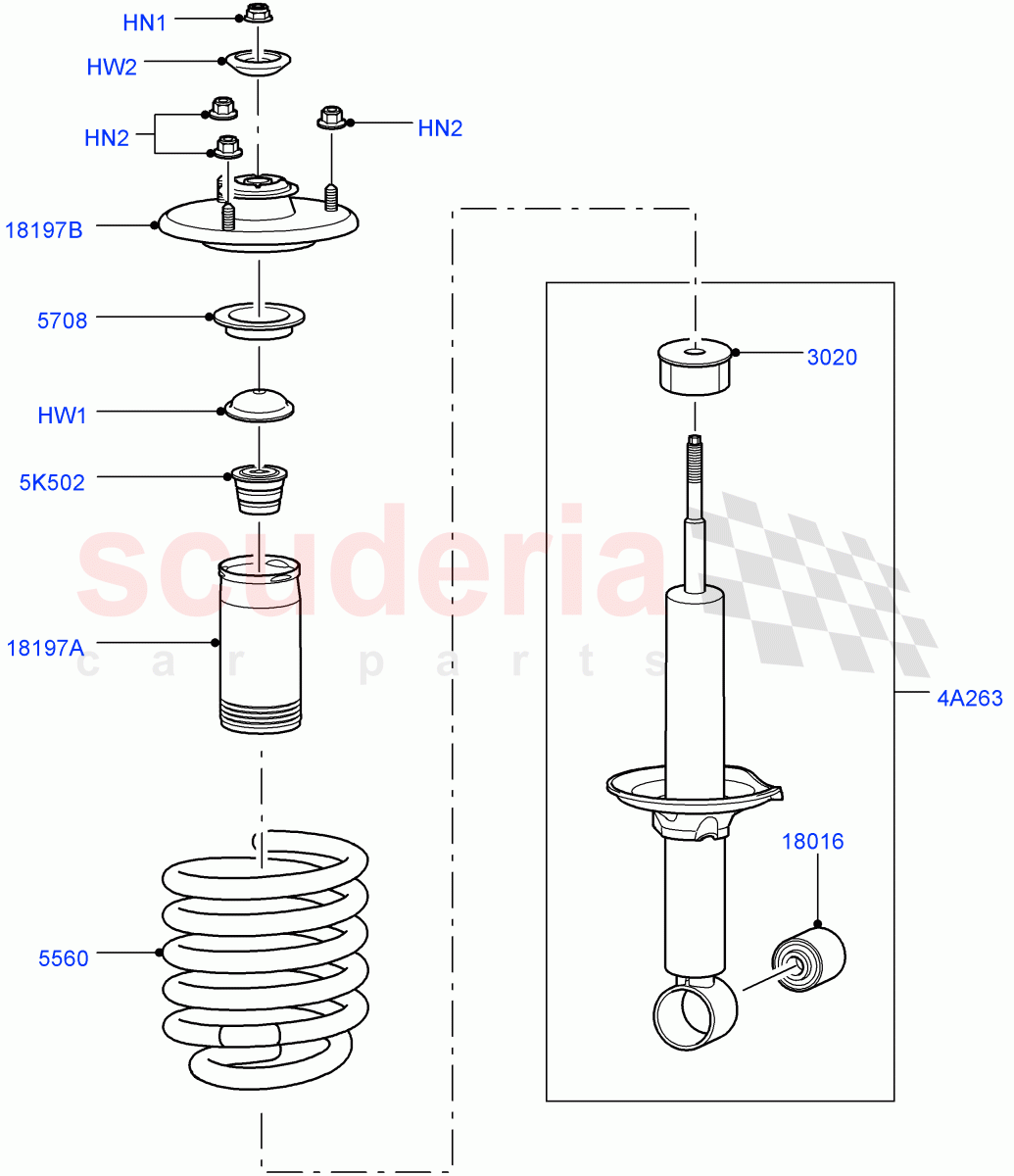

Rear Springs And Shock Absorbers (With Standard Duty Coil Spring Susp) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FY114047
NUT (NON HAZ)
M14 / From: AA000001
IN STOCK 		$3.03 2
HN2 FY110056
NUT
M10 / From: AA000001
IN STOCK 		$4.26 2
HW1 RNS000041
PLATE (NON HAZ)
Bump Washer / From: AA000001
IN STOCK 		$7.24 2
HW2 RNS500010
WASHER - DAMPER LOCKING (NON HAZ)
IN STOCK 		$4.44 2
4A263 LR018433
DAMPER
From: AA000001 / To: CA633356 		$505.46 2
4A263 LR038097
SHOCK ABSORBER - REAR
From: CA633357 		$373.17 2
5K502 RPC500013
BUFFER - SPRING ASSIST (NON HAZ)
From: AA000001 		$31.51 2
3020 RNO000011
BUMP STOP (NON HAZ)
From: AA000001 		$21.30 2
5560 RKB500033
SPRING - REAR (NON HAZ)
From: AA000001 		$193.58 2
5708 RNG500030
SPACER (NON HAZ)
3MM, Use With Spring Colour Identification Red / From: AA000001 		$6.88 2
5708 RNG500040
SPACER (NON HAZ)
6.5MM, Use With Spring Colour Identification Red/White / From: AA000001 		$9.58 2
5708 RNG500050
SPACER (NON HAZ)
10MM, Use With Spring Colour Identification Red/Green / From: AA000001 		$8.06 2
5708 RNG500060
SPACER (NON HAZ)
13.5MM, Use With Spring Colour Identification Red/Orange / From: AA000001 		$12.75 2
18016 ROA000022
BUSH - SHOCK ABSORBER (NON HAZ)
From: AA000001 		$17.50 2
18197A RNE000011
COVER - DUST
From: AA000001 		$20.26 2
18197B RPF500023
INSULATOR - SHOCK ABSORBER
From: AA000001 		$147.50 2
