Air Suspension Compressor And Lines ('Amk' Compressor, Compressor Assy) (With Four Corner Air...

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Air Suspension Compressor And Lines ('AMK' Compressor, Compressor Assy) (With Four Corner Air...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
EYP000270 SCREW $0.46 To Order
Photo Part No Description Price (each) Stock
RYP500110 SCREW $5.02 To Order
Photo Part No Description Price (each) Stock
RYG501590 SCREW $1.00 IN STOCK
Photo Part No Description Price (each) Stock
LR060166 WIRING - REPAIR $72.70 To Order
Photo Part No Description Price (each) Stock
LR038116 MOUNTING - RUBBER $126.91 To Order
Photo Part No Description Price (each) Stock
LR032902 COMPRESSOR - SUSPENSION LEVELLING $1,197.61 To Order
Photo Part No Description Price (each) Stock
LR038148 COMPRESSOR - SUSPENSION LEVELLING $1,459.34 To Order
Photo Part No Description Price (each) Stock
LR038114 TUBE - AIR COMPRESSOR $75.51 To Order
Photo Part No Description Price (each) Stock
LR038115 TUBE - AIR COMPRESSOR $75.51 To Order
Photo Part No Description Price (each) Stock
LR056050 TUBE - COMPRESSOR LINE $14.22 To Order
Photo Part No Description Price (each) Stock
LR037066 TUBE - AIR COMPRESSOR $31.26 To Order
Photo Part No Description Price (each) Stock
LR038117 WIRE - AIR COMPRESSOR $114.75 To Order
Photo Part No Description Price (each) Stock
LR038118 BRACKET - COMPRESSOR $116.45 To Order
Photo Part No Description Price (each) Stock
LR031951 COVER - AIR SUSPENSION COMPRESSOR $81.09 To Order
LR045250 Cover Enquire To Order
Photo Part No Description Price (each) Stock
LR031950 COVER - AIR SUSPENSION COMPRESSOR $83.32 To Order
LR039614 COVER - AIR SUSPENSION COMPRESSOR $99.71 To Order
View All

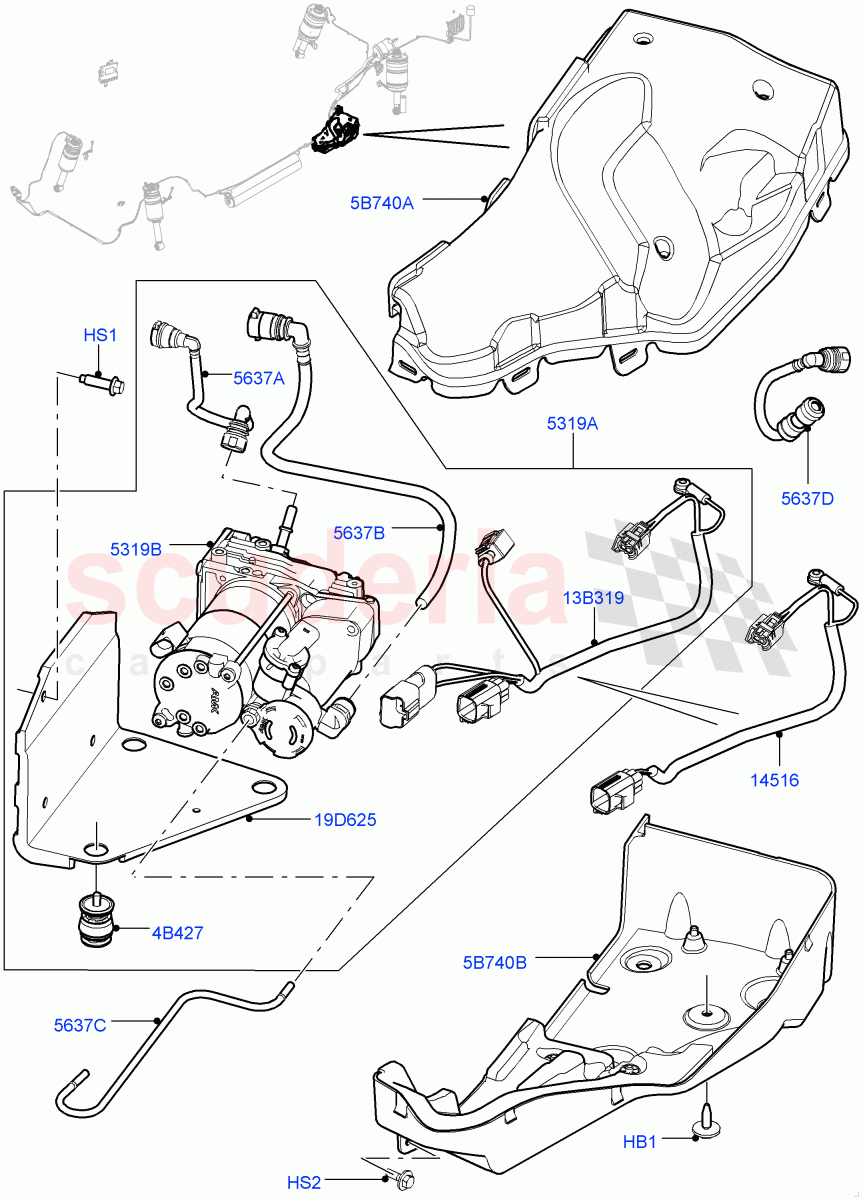

Air Suspension Compressor And Lines ('AMK' Compressor, Compressor Assy) (With Four Corner Air Suspension) ((V) FROMBA589828, (V) TOCA603539) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 EYP000270
SCREW
M6 X 20MM / From: BA589828 		$0.46 1
HS1 RYP500110
SCREW
M8 X 25MM / From: BA589828 		$5.02 3
HS2 RYG501590
SCREW
Hexagonal Head, M6 X 20MM / From: BA589828
IN STOCK 		$1.00 2
4B427 LR038116
MOUNTING - RUBBER
From: BA589828 		$126.91 3
5B740A LR031951
COVER - AIR SUSPENSION COMPRESSOR
Upper / From: BA589828 / To: CA543209 		$81.09 1
5B740A LR045250
Cover
Upper / From: CA543210 		- 1 Enquire
5B740B LR031950
COVER - AIR SUSPENSION COMPRESSOR
Lower / From: BA589828 / To: CA543209 		$83.32 1
5B740B LR039614
COVER - AIR SUSPENSION COMPRESSOR
Lower / From: CA543210 		$99.71 1
13B319 LR038117
WIRE - AIR COMPRESSOR
Compressor Assy / From: BA589828 		$114.75 1
19D625 LR038118
BRACKET - COMPRESSOR
From: BA589828 		$116.45 1
5319A LR032902
COMPRESSOR - SUSPENSION LEVELLING
Includes Mounting Bracket, With Pipes, With Wiring Harness / From: BA589828 		$1,197.61 1
5319B LR038148
COMPRESSOR - SUSPENSION LEVELLING
Less Bracket, Less Pipes, With Wiring Harness / From: BA589828 		$1,459.34 1
5637A LR038114
TUBE - AIR COMPRESSOR
Intake / From: BA589828 		$75.51 1
5637B LR038115
TUBE - AIR COMPRESSOR
Exhaust / From: BA589828 		$75.51 1
5637C LR056050
TUBE - COMPRESSOR LINE
Air Compressor To Valve Block, High Pressure / From: BA589828 		$14.22 1
5637D LR037066
TUBE - AIR COMPRESSOR
Intake, Service Only / From: BA589828 		$31.26 1
14516 LR060166
WIRING - REPAIR
Thermistor Harness Repair / From: BA589828 		$72.70 1
