Name: Timing Gear (Solihull Plant Build, Timing Chains, Tensioners) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)
Rating: 4.2 (1 reviews)

Timing Gear (Solihull Plant Build, Timing Chains, Tensioners) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Timing Gear (Solihull Plant Build, Timing Chains, Tensioners) (3.0L DOHC GDI SC V6 PETROL) ((V)...

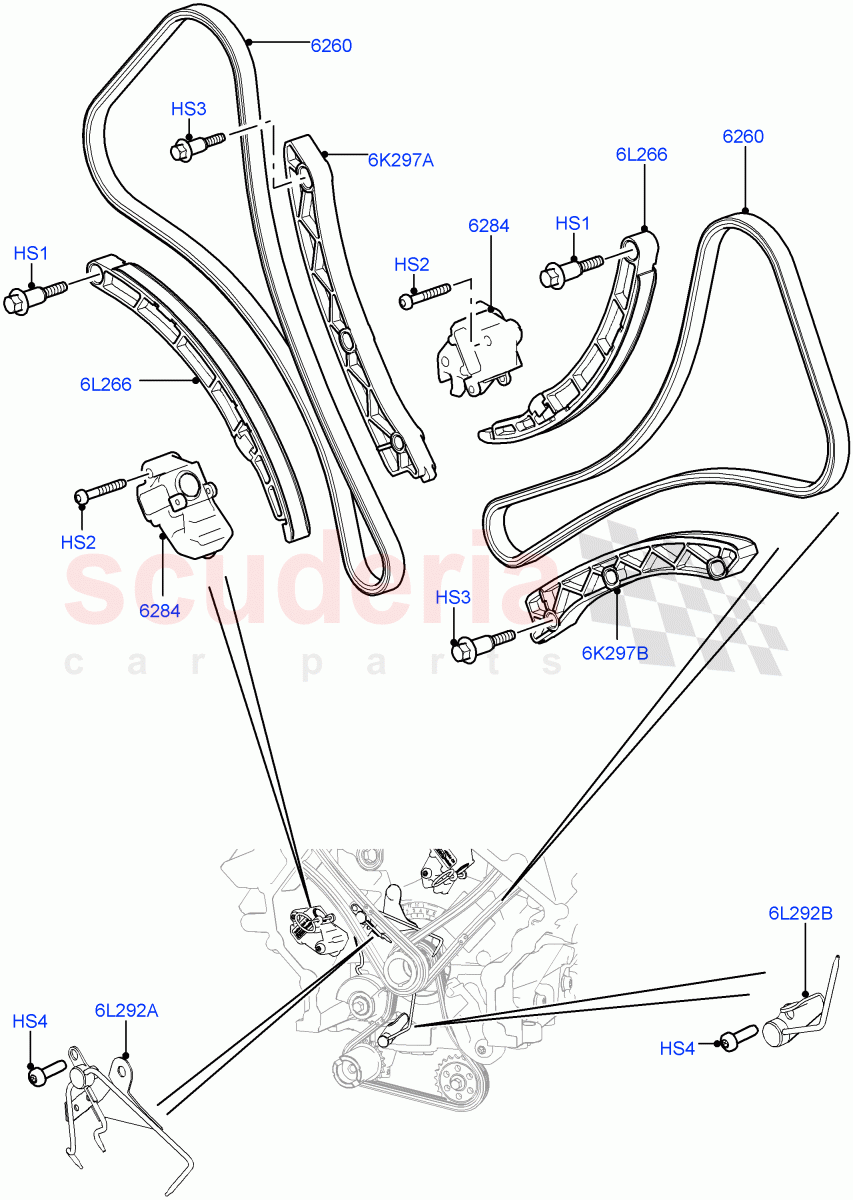

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011522	SCREW	$2.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011272	SCREW	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011064	SCREW M6 X 38	$2.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010904	SCREW	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032048	CHAIN - TIMING	$90.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR095472	TENSIONER - TIMING CHAIN	$148.29	IN STOCK
	LR095472	TENSIONER - TIMING CHAIN	$148.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR051013	BLADE - TENSIONER	$66.27	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR051011	GUIDE - TIMING CHAIN	$48.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR051012	GUIDE - TIMING CHAIN	$48.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR041774	JET - CHAIN LUBRICATING	$78.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042667	JET - CHAIN LUBRICATING	$27.26	To Order
	LR059161	JET - CHAIN LUBRICATING	$18.94	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR011522	SCREW IN STOCK	LR011522 SCREW M8 X 45MM, Tensioner / From: EA000001 IN STOCK	$2.89	2
HS2	LR011272	SCREW	LR011272 SCREW M6 X 40MM, Torx / From: EA000001	$1.39	4
HS3	LR011064	SCREW M6 X 38 IN STOCK	LR011064 SCREW M6 X 38 Chain Guide, M6 X 38MM / From: EA000001 IN STOCK	$2.59	6
HS4	LR010904	SCREW	LR010904 SCREW M6 X 20MM, Washer Nozzle / From: EA000001	$1.24	2
6K297A	LR051011	GUIDE - TIMING CHAIN IN STOCK	LR051011 GUIDE - TIMING CHAIN RH, Timing Chain / From: EA000001 IN STOCK	$48.47	1
6K297B	LR051012	GUIDE - TIMING CHAIN IN STOCK	LR051012 GUIDE - TIMING CHAIN LH, Timing Chain / From: EA000001 IN STOCK	$48.47	1
6L266	LR051013	BLADE - TENSIONER IN STOCK	LR051013 BLADE - TENSIONER Blade / From: EA000001 IN STOCK	$66.27	2
6L292A	LR041774	JET - CHAIN LUBRICATING	LR041774 JET - CHAIN LUBRICATING Chain Lubricating, Upper / From: EA000001	$78.05	1
6L292B	LR042667	JET - CHAIN LUBRICATING	LR042667 JET - CHAIN LUBRICATING Chain Lubricating, Lower / From: EA000001 / To: EA720633	$27.26	1
6L292B	LR059161	JET - CHAIN LUBRICATING IN STOCK	LR059161 JET - CHAIN LUBRICATING Chain Lubricating, Lower / From: EA720634 IN STOCK	$18.94	1
6260	LR032048	CHAIN - TIMING IN STOCK	LR032048 CHAIN - TIMING From: EA000001 IN STOCK	$90.42	2
6284	LR095472	TENSIONER - TIMING CHAIN IN STOCK	LR095472 TENSIONER - TIMING CHAIN From: EA000001 / To: GA841380 IN STOCK	$148.29	2
6284	LR095472	TENSIONER - TIMING CHAIN IN STOCK	LR095472 TENSIONER - TIMING CHAIN From: GA841381 IN STOCK	$148.29	2

Timing Gear (Solihull Plant Build, Timing Chains, Tensioners) (3.0L Dohc Gdi Sc V6 Petrol) ((V)...

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Timing Gear (Solihull Plant Build, Timing Chains, Tensioners) (3.0L DOHC GDI SC V6 PETROL) ((V)...

Add to Shopping Cart
