Name: Timing Gear (Sprockets, Solenoids, Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)
Rating: 4.3 (1 reviews)

Timing Gear (Sprockets, Solenoids, Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Timing Gear (Sprockets, Solenoids, Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V)...

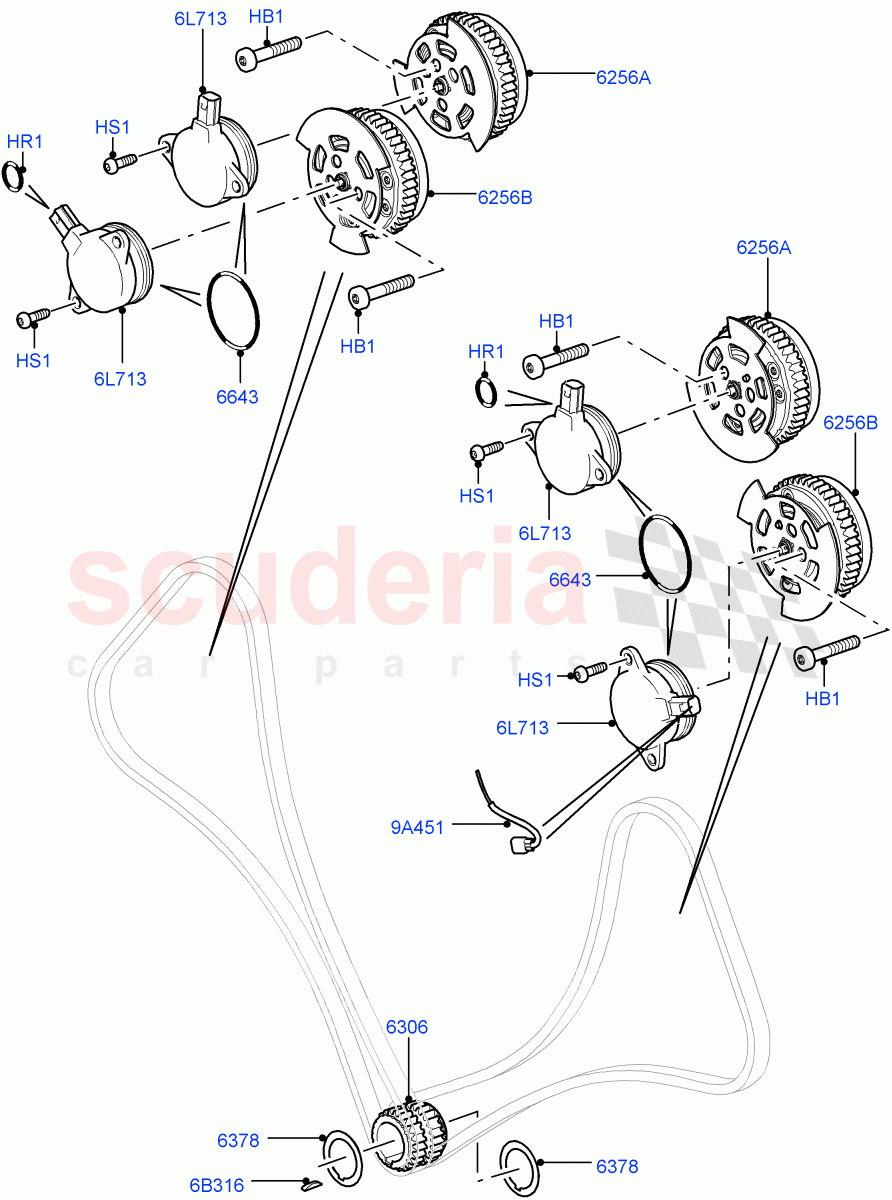

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR010694	BOLT	$3.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR034108	O-RING	$8.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010904	SCREW	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072638	GEAR - CRANKSHAFT	$67.16	To Order
	LR072638	GEAR - CRANKSHAFT	$67.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010696	WASHER - CRANKSHAFT SPROCKET	$27.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011954	O-RING	$5.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048776	SPROCKET - CAMSHAFT	$265.71	To Order
	LR060395	SPROCKET - CAMSHAFT	$264.91	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR048777	SPROCKET - CAMSHAFT	$265.71	To Order
	LR060396	SPROCKET - CAMSHAFT	$255.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010691	KEY - WOODRUFF	$3.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045390	SOLENOID - ENGINE VARIABLE TIMING	$199.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061705	WIRE - SOLENOID	$35.50	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR010694	BOLT IN STOCK	LR010694 BOLT Camshaft, M8, Sprocket - Drive / From: EA000001 IN STOCK	$3.60	12
HR1	LR034108	O-RING	LR034108 O-RING Solenoid - Engine Variable Timing, Wiring Connector / From: EA000001	$8.39	4
HS1	LR010904	SCREW	LR010904 SCREW M6 X 20MM, Solenoid - Engine Variable Timing / From: EA000001	$1.24	8
6B316	LR010691	KEY - WOODRUFF	LR010691 KEY - WOODRUFF From: EA000001	$3.05	1
6L713	LR045390	SOLENOID - ENGINE VARIABLE TIMING	LR045390 SOLENOID - ENGINE VARIABLE TIMING From: EA000001	$199.36	4
9A451	LR061705	WIRE - SOLENOID	LR061705 WIRE - SOLENOID Service Repair Links, Solenoid - Engine Variable Timing / From: EA000001	$35.50	4
6256A	LR048776	SPROCKET - CAMSHAFT	LR048776 SPROCKET - CAMSHAFT Inlet / From: EA000001 / To: EA718545	$265.71	2
6256A	LR060395	SPROCKET - CAMSHAFT IN STOCK	LR060395 SPROCKET - CAMSHAFT Inlet / From: EA718546 IN STOCK	$264.91	2
6256B	LR048777	SPROCKET - CAMSHAFT	LR048777 SPROCKET - CAMSHAFT Exhaust / From: EA000001 / To: EA718545	$265.71	2
6256B	LR060396	SPROCKET - CAMSHAFT	LR060396 SPROCKET - CAMSHAFT Exhaust / From: EA718546	$255.94	2
6306	LR072638	GEAR - CRANKSHAFT	LR072638 GEAR - CRANKSHAFT From: EA000001 / To: EA999999	$67.16	1
6306	LR072638	GEAR - CRANKSHAFT	LR072638 GEAR - CRANKSHAFT From: FA000001	$67.16	1
6378	LR010696	WASHER - CRANKSHAFT SPROCKET	LR010696 WASHER - CRANKSHAFT SPROCKET Crankshaft, Sprocket - Drive / From: EA000001	$27.46	2
6643	LR011954	O-RING	LR011954 O-RING Solenoid - Engine Variable Timing / From: EA000001	$5.49	4
